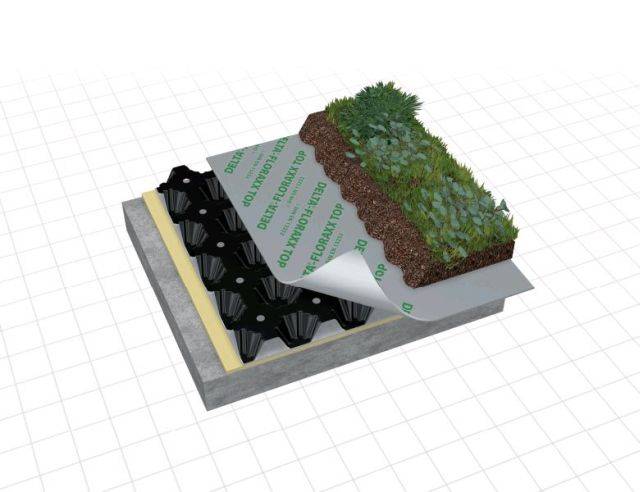

DELTA® FLORAXX Top - Drainage sheet

DELTA® FLORAXX Top - Drainage sheet

Delta Membrane Systems Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Water-retaining drainage sheet with an integrated geotextile for perfect green roofs.

Jump to:
+44 (0)1992 523523 www.deltamembranes.com

Description

An innovative dimpled sheet which has been developed specifically for green roofs. Due to its unique dimple structure and its innovative material, its functions include; drainage, water storage and an integrated filtration layer on top.

Can be easily laid straight from the roll. An optimum solution for flat roofs which are to be extensively planted which requires minimal maintenance. The octagonal dimples additionally reinforced by ribs make the sheet highly compression resistant.

Benefits:

  • Ideally combines a perforated, dimpled HDPE sheet and a fused-on PP geotextile.
  • Features the outstanding compressive strength of 200 kN/m² and an enlarged water retention capacity thanks to its innovative 20 mm high octagonal dimples.
  • Eliminates an entire laying operation because of its integrated geotextile, on which substrate can be spread immediately after the sheet has been rolled out.
  • Forms a consistent homogenous surface without the problems caused by loose cloth layers slipping, shifting, or being blown about by the wind.
  • Capable of retaining 7 L/m² of water as a reserve for periods of drought.
  • May also be used on green inverted roofs because it is breathable.
  • CE-conformable as per DIN EN 13252 and meets the requirements of the FLL guideline for green roofs.
  • 2 m wide and features an extra 100 mm cloth overlap.
  • Can be easily and safely joined with DELTA®-FLORAXX connecting elements.

General information

Color

Black

Material

Dimpled HDPE sheet, perforated, with fused-on PP geotextile

Uniclass 2015

Pr_25_57_51_74 Rubber studded sheetsPrimary

CAWS

Q37/355 Combined layers

Specification data - Rubber studded sheets

Product Reference

Delta Floraxx Top

Standard product features

Material:

Dimpled HDPE sheet, perforated, with fused-on PP geotextile (DELTA®-FLORAXX TOP) dimpledHDPE sheet, perforated (DELTA®-FLORAXX).

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

4

1.3
ARCHICAD
-

1.0

1.0

AECOsim
-

1.0

1.0

Vectorworks
-

1.0

1.0

Revit

Revit 2016

8

2.0
Download now from NBS National BIM Library

Literature

DELTA-FLORAXX TOP

DELTA-FLORAXX TOP

DELTA-FLORAXX TOP - Water Retaining Drainage Sheet

DELTA-FLORAXX TOP - Water Retaining Drainage Sheet

Flat Green Roof Systems for Gardens, Terraces, Walkways & Parking

Flat Green Roof Systems for Gardens, Terraces, Walkways & Parking

Third party certifications

  • BS EN 13252 - Certificate No. 0799-CPD-13
  • CE mark
