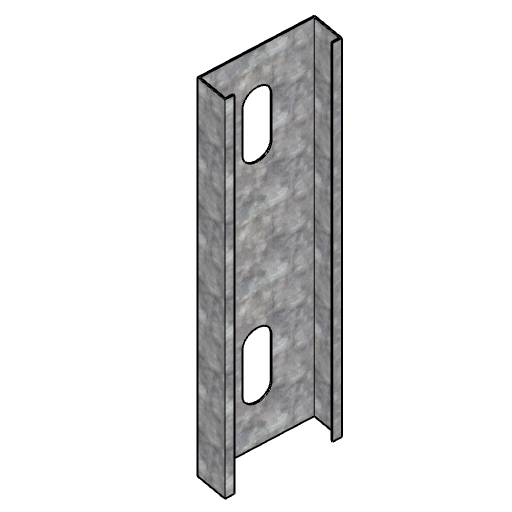

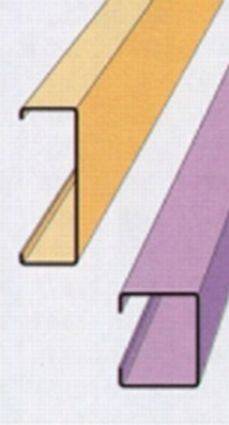

CS Column with service holes
Description

The sections are available in 90–240 mm depths and 1.5–3.2 mm thicknesses.

Manufactured from galvanized steel S390GD + Z275, with minimum guaranteed yield strength of 390 N/mm².

General information

Material

Hot dipped zinc coated steel

Uniclass 2015

Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary

CAWS

G10/170 Cold-formed galvanized steel

G10/30 Cold-formed galvanized steel

Specification data - Cold-formed galvanized steel sections

Product Reference

10016

100 mm deep, 1.6 mm thick.

10020

100 mm deep, 2.0 mm thick.

12016

120 mm deep, 1.6 mm thick.

12715

127 mm deep, 1.5 mm thick.

12716

127 mm deep, 1.6 mm thick.

12718

127 mm deep, 1.8 mm thick.

12720

127 mm deep, 2.0 mm thick.

14015

140 mm deep, 1.5 mm thick.

14016

140 mm deep, 1.6 mm thick.

14018

140 mm deep, 1.8 mm thick.

15016

150 mm deep, 1.6 mm thick.

15020

150 mm deep, 2.0 mm thick.

15515

155 mm deep, 1.5 mm thick.

15516

155 mm deep, 1.6 mm thick.

15518

155 mm deep, 1.8 mm thick.

16515

165 mm deep, 1.5 mm thick.

16516

165 mm deep, 1.6 mm thick.

16518

165 mm deep, 1.8 mm thick.

16520

165 mm deep, 2.0 mm thick.

17015

170 mm deep, 1.5 mm thick.

17016

170 mm deep, 1.6 mm thick.

17018

170 mm deep, 1.8 mm thick.

18016

180 mm deep, 1.6 mm thick.

18018

180 mm deep, 1.8 mm thick.

18020

180 mm deep, 2.0 mm thick.

18515

185 mm deep, 1.5 mm thick.

18516

185 mm deep, 1.6 mm thick.

18518

185 mm deep, 1.8 mm thick.

18520

185 mm deep, 2.0 mm thick.

20015

200 mm deep, 1.5 mm thick.

20016

200 mm deep, 1.6 mm thick.

20018

200 mm deep, 1.8 mm thick.

20020

200 mm deep, 2.0 mm thick.

22015

220 mm deep, 1.5 mm thick.

22016

220 mm deep, 1.6 mm thick.

22018

220 mm deep, 1.8 mm thick.

22020

220 mm deep, 2.0 mm thick.

24020

240 mm deep, 2.0 mm thick.

Length

As drawing ___

Up to 10 m; insert requirements.

Accessories

Not required

Cleats, S280

S280+Z275 Pre-hot dipped galvanized carbon (mild) steel to BS EN 10346:2015.

Tie rod, 515 mm long

12 mm diameter zinc plated carbon steel threaded rod, supplied with suitable nuts and washers.

Tie rod, 715 mm long

12 mm diameter zinc plated carbon steel threaded rod, supplied with suitable nuts and washers.

Tie rod, 815 mm long

12 mm diameter zinc plated carbon steel threaded rod, supplied with suitable nuts and washers.

Tie rod, 915 mm long

12 mm diameter zinc plated carbon steel threaded rod, supplied with suitable nuts and washers.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 5 2.1
Revit
- 5 2.1
Download now from NBS National BIM Library
