CS Acrovyn® HRE-6 Handrail

Verified by manufacturer 1 month ago

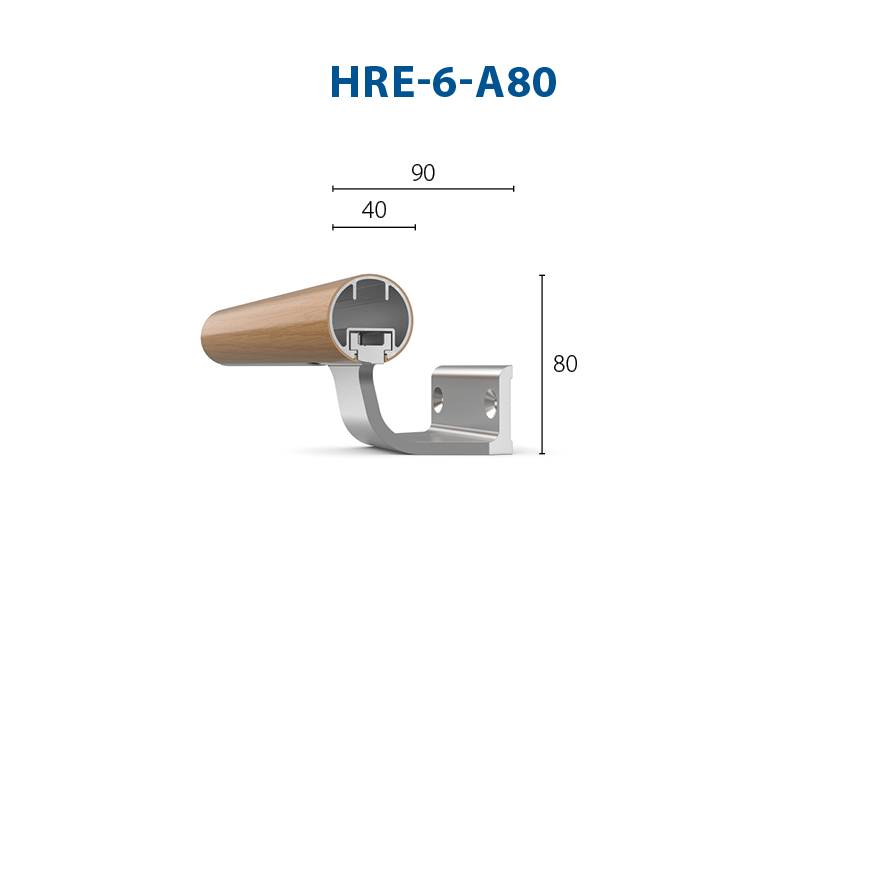

Acrovyn® HRE-6-A80 handrail with aluminium brackets

Construction Specialties (UK) Ltd Variant:

40 mm circular handrail combining contemporary decorative finishes with ease of maintenance of Acrovyn.

Jump to:
+44 (0)1296 652800 www.c-sgroup.co.uk

Application

Pedestrian support in circulation corridors.

Description

40 mm circular handrail combining contemporary decorative finishes with ease of maintenance of Acrovyn.


Features and benefits:

  • Medium duty.
  • Ergonomically designed handrail with smooth cover.
  • Available in a range of decorative finishes (woodgrain/ metal/ concrete).
  • Continuous aluminium retainer for sturdy support.
  •  Infill strip closes off retainer groove for ease of cleaning.
  • Choice of aluminium or stainless steel bracket options.
  • BS 8300 compliant (when specified as HRE-6-S87 stainless steel bracket).
  • Can be installed to curved walls (1 m radius, minimum).
  • Brackets at 800 mm centres (maximum); fixing into studwork or pattresses is recommended.

General information

Color

Brown

Grey

Material

Acrovyn®

Aluminium

Retainer and brackets

Stainless steel

Stainless steel brackets

Length

4000 mm

Width

Overall stand-off from the wall.

Handrail is circular, 40 mm diameter.

90 mm

102 mm

Height

Overall height, including bracket. Varies by bracket type.

80 mm

92 mm

132 mm

Uniclass

Ss_25_60_05_35 Handrail systemsPrimary

CAWS

L30/70 Proprietary handrails

L30/580 Proprietary handrails

Product range

CS Acrovyn Handrails

Specification data - Handrail systems

Handrails

Aluminium handrails with Acrovym covering, 40 mm diameter.

Fixing to parent structure

Insert requirements.

Brackets at maximum 800 mm centres; fixing into studwork or pattresses is recommended.

Size:

Overall dimensions; stock size.

Handrail is circular, 40 mm diameter.

90 x 80 x 4000 mm.

Integral accessories

End caps.

End stops.

Accessories

External corner.

Internal corner.

Odd angle corners.

98–165°; insert requirements.

Removable kit for service ducts.

Vertical accent trims, colour.

Insert requirements: black as standard, also available in light grey.

Colour

52 Golden Oak LRV: 37.

Woodgrain.

38 Smoked Oak LRV: 18.

Woodgrain.

51 Natural Oak LRV: 54.

Woodgrain.

53 Walnut LRV: 27.

Woodgrain.

39 Wenge LRV: 10.

Woodgrain.

Show more

Literature

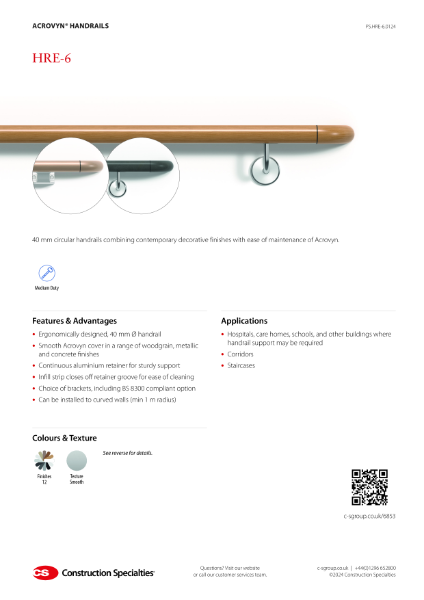

CS Acrovyn Wall & Door Protection 2022
