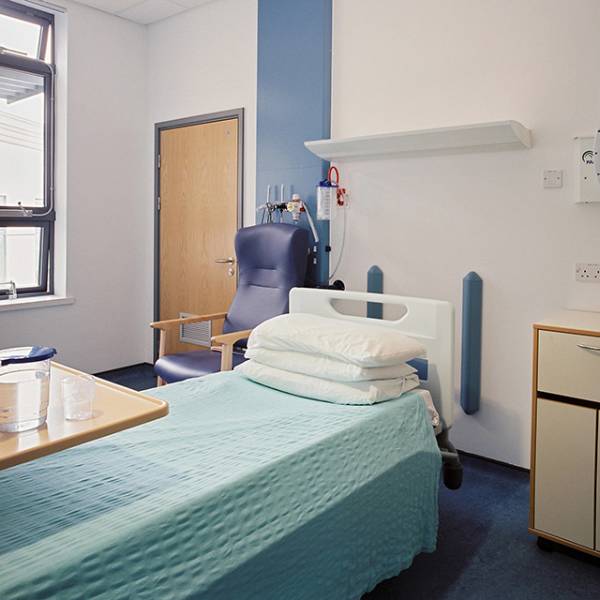

CS Acrovyn® BL10V / BL10VE Bed Head Protectors
Description

A range of medium duty bed head protectors, featuring Acrovyn® or Acrovyn® 4000 cover over continuous aluminium retainers.

Features:

  • Designed to protect walls from damage at bed head locations.
  • For use in pairs in vertical orientation, typically at 600 mm centres.
  • BL10V versions are installed on mounting cushions.
  • BL10VE versions are fitted on custom length, powder coated aluminium brackets to hold beds away from the wall and wall mounted equipment.
  • Profiles supplied pre-cut, complete with end caps.
  • Available in 27 Acrovyn® profile colours and 8 Acrovyn® 4000 profile colours.
  • For extra durability, it is recommended fixing bed locators to studwork or pattresses.

General information

Uniclass 2015

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

N10/184 Wall rails

P20/170 Proprietary

Specification data - Wall protection panels

Product Reference

Acrovyn® BL10V Bed Head Protector

Installed on mounting cushions.

Acrovyn® BL10VE Bed Head Protector

Fitted on extended brackets.

Acrovyn® 4000 BL10V-N Bed Head Protectors

Installed on mounting cushions.

Acrovyn® 4000 BL10VE-N Bed Head Protectors

Fitted on extended brackets.

Bracket length

BL10HE and BL10HE-N

300 mm as standard, or can be cut to suit (90 mm minimum).

Colour

As schedule ___

Standard product features

Rail dimensions:

102 mm wide x 47 mm deep.

Standard height:

750 mm (including end caps).

Fixing:

400 mm maximum vertical centres.

Product Options

Acrovyn® BL10V / Acrovyn® 4000 BL10V-N Bed Head Protectors:

  • Mounted on 12 mm thick cushions.
  • Standard bed head protector height including end caps 750 mm.

Acrovyn® BL10VE Acrovyn® 4000 BL10VE-N Bed Head Protectors:

  • Mounted on powder coated aluminium extended brackets, 300mm standard length, or cut to size (90 mm minimum length).
  • Standard bed head protector height including end caps 750 mm.

Colour:

- Acrovyn®:

11 Alpine Blue/ 12 Cobalt/ 16 Harvest Gold/ 17 Sherbet/ 23 Spring Green/ 24 Dove/ 26 Taupe/ 34 Zest/ 100 Eggshell/ 101 French Cream/ 105 Mocha/ 112 Pacific Blue/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 520 Imperial Purple/ 801 Grey Cloud/ 845 Spectrum Red/ 879 Dusty Jade/ 933 Mission White/ 4005 Plum/ 5018 Lagoon/ 6033 Mint Turquoise/ 7024 Graphite/ 7039 Iron/ 8019 Earth/ 9003 Snow White.

- Acrovyn® 4000:

100 Eggshell/ 101 French Cream/ 105 Mocha/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 520 Imperial Purple/ 933 Mission White.
