Description

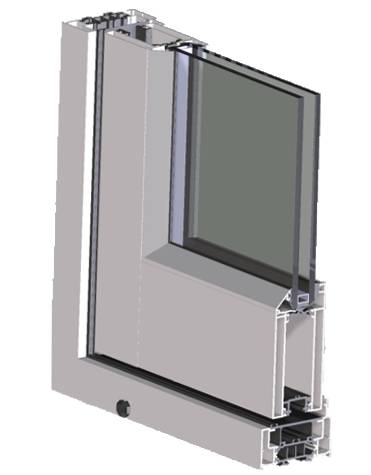

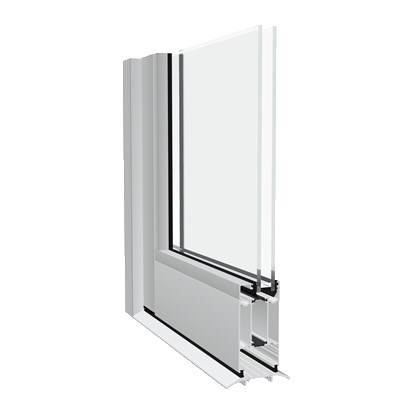

Aluminium sliding and single/ double hinged door sets, of slim but strong frame design, for residential use.

Features:

  • Dual colour available.
  • Multi chamber weather stripped profiles with polyamide thermal breaks.
  • Nitrile rubber glazing gaskets.
  • Size (w x h, maximum): 6408 x 2500 mm - sliding four pane.
  • Sliding door: Two, three or four leaves.
  • Stainless steel track and wheels giving easy operation.
  • Traditional design with slim sight lines; low threshold option on hinged doors.
  • Maximum leaf weight 75 kg (hinged), 80 kg (sliding).

Performance:

  • Hinged door (BS 6375-1 and PAS023): 200 Pa Water Tightness (Class 5A); 300 Pa Air Permeability (Class 2); 1200 Pa Wind Resistance (Class 3).
  • Sliding door (BS 6375-1): 300 Pa Water tightness (Class 7A); 300 Pa Air Permeability (Class 2); 800 Pa Wind Resistance (Class A2).

General information
Size

Insert requirements.

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Features

Dual colour available

Multi chamber weather stripped profiles with polyamide thermal breaks

Nitrile rubber glazing gaskets

Size (w x h, maximum): 6408 x 2500 mm - sliding four pane

Sliding door: Two, three or four leaves

Stainless steel track and wheels giving easy operation

Traditional design with slim sight lines; low threshold option on hinged doors

Maximum leaf weight 75 kg (hinged), 80 kg (sliding)

Specification data
Product Reference

Crown Patio and Residential Doors

Type

Hinged single, open in

Hinged single, open out

Hinged double, open in

Hinged double, open in

Sliding

Leaves

1

Hinged door.

2

Hinged or sliding.

3

Sliding only.

4

Sliding only.

As drawing

As schedule

Size

Insert requirements.

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Glazing

24 mm

28 mm

32 mm

Handle

Insert handle and colour requirements from Options.

Accessories

None

Internal thumbturn to lock

Letter plate

Hinged door.

Low threshold

Hinged door.

Standard product features

Hardware:

Hinged door - Multi-point lock with cylinder. Optional auxiliary lock.

Sliding door - Multi-point lock with lever and cylinder.

Product Options

Glazing:

24, 28 or 32 mm as standard. Insert details of glass and spacer dimensions, emissivity, safety and solar control.

Handle:

  • Hinged door - lever/ lever handle.
  • Hinged door - lever/ swan neck handle with split spindle.
  • Sliding door - curved pull handles.
