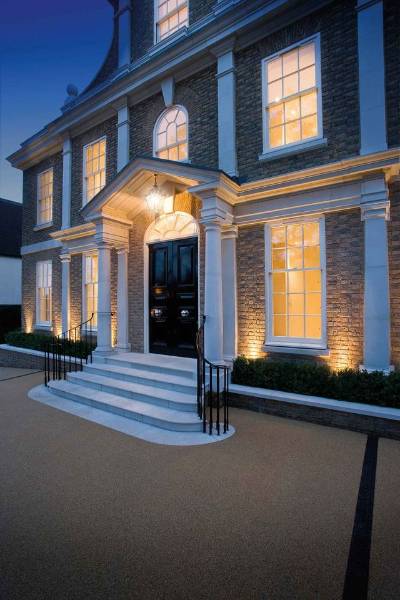

Columns And Pilasters
Description

A range of columns and pilasters inspired by the architecture of Ancient Rome and Greece.

A column will usually have an entablature of some kind to support, for example as part of a portico, temple, pavilion or classical facade.

Classical pilasters (also referred to as pillars) are rectangular in plan and are handcrafted.

The columns are designed to be non-structural elements and so are provided with hollow cores. These, if filled with reinforced concrete or used to sleeve a structural steel member, can then be used in structural situations. They are supplied in component form and should be erected on suitable foundations designed by a structural engineer to suit loadings and ground conditions.

The shaft sections should be lined with expanded polystyrene (EPS) or similar to act as an isolating medium when column cores are infilled.

Bespoke products are available on request. Consult the manufacturer for details.

Material:

- Haddonstone (Semi-dry cast limestone):

High quality semi-dry cast stone, consisting of over 50% limestone aggregate. With a surface texture similar to Portland Stone, Haddonstone is regularly used alongside or as an alternative to natural stone.

- TecStone (wet cast limestone):

High quality wet cast stone, comprising over 60% natural limestone aggregate. Denser than the Haddonstone material, TecStone is acid etched as standard to provide an attractive appearance similar to a finished natural stone. Designed to meet demanding performance criteria and can incorporate structural reinforcement and cast-in fixings. TecStone is the preferred material for architectural projects where structural performance is required.

Features and benefits:

  • Different column heights are available.
  • Columns are cast in rubber moulds, reducing the visibility of a single seam.
  • Available in a range of standard designs or to bespoke specification.
  • Can be combined with other elements.

General information

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Uniclass 2015

Pr_20_93_52_13 Cast stone masonry unitsPrimary

CAWS

F22/110 Cast stone

Specification data - Cast stone masonry units

Product Reference

Columns And Pilasters

Type

Column M9

Corinthian column M1

Corinthian column M2 (short)

Corinthian column M2 (long)

Corinthian pilaster M2 (short)

Corinthian pilaster M2 (long)

Doric column M6

Doric column M601

Doric pilaster M6

Doric pilaster M601

Tuscan column M3

Tuscan column M4

Tuscan column M5

Tuscan column M7 (short)

Tuscan column M7 (long)

Tuscan column M8

Tuscan column M11

Tuscan pilaster M4

Tuscan pilaster M5

Tuscan pilaster M7 (short)

Tuscan pilaster M7 (long)

Tuscan pilaster M8

Tuscan pilaster M11

Capital

Corinthian

Doric

Ionic

Tuscan

Material

Haddonstone (semi-dry cast limestone)

TecStone (wet cast limestone)

Colour

Bath 02

Ivory Limestone IL

Portland 01

Bespoke

Insert requirement for colour.

Accessories

None

Cast-in fixings

Insert requirements for cast fixings.

Cast-in lifting sockets

Insert requirements for lifting sockets.

Standard product features

Compressive cube strength after 28 days (minimum):

  • Haddonstone: >35 MPa.
  • TecStone: >45 MPa.

Both materials exceed the requirements of the United Kingdom Cast Stone Association (UKCSA) specification and comply with the requirements of BS 1217, BS 5642-2+ A1 and BS EN 13198.

Haddonstone:

  • Material density: 2150 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >35 N/mm² (MPa).
  • Aggregate size: 0–3 mm continuously graded.
  • Finish: Ex-Mould (no finishing required).
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

TecStone:

  • Material density: 2350 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate size: 0–10 mm continuously graded.
  • Finish: Light acid etched.
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).

Product Options

Type:

- Size (height):

  • Column M9 - 5453 mm.
  • Corinthian column M1 - 6825 mm.
  • Corinthian column M2 (short) - 3325 mm.
  • Corinthian column M2 (long) - 3569 mm.
  • Corinthian pilaster M2 (short) - 3325 mm.
  • Corinthian pilaster M2 (long) - 3569 mm.
  • Doric column M6 - 2680 mm.
  • Doric column M601 - 2380 mm.
  • Doric pilaster M6 - 2680 mm.
  • Doric pilaster M601 - 2380 mm.
  • Tuscan column M3 - 5534 mm.
  • Tuscan column M4 - 3028 mm.
  • Tuscan column M5 - 2736 mm.
  • Tuscan column M7 (short) - 2345 mm.
  • Tuscan column M7 (long) - 2523 mm.
  • Tuscan column M8 - 2153 mm.
  • Tuscan column M11 - 3568 mm.
  • Tuscan pilaster M4 - 3028 mm.
  • Tuscan pilaster M5 - 2736 mm.
  • Tuscan pilaster M7 (short) - 2345 mm.
  • Tuscan pilaster M7 (long) - 2523 mm.
  • Tuscan pilaster M8 - 2153 mm.
  • Tuscan pilaster M11 - 3568 mm.

Consult technical literature for further details.

Column height can be adjusted to suit existing structure.

Half column options also available for M4, M7 and M8, consult manufacturer for details and insert requirement in the specification above.
