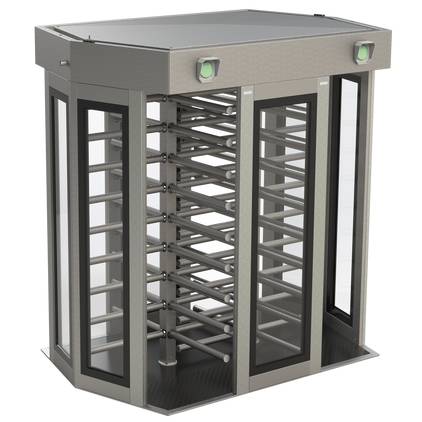

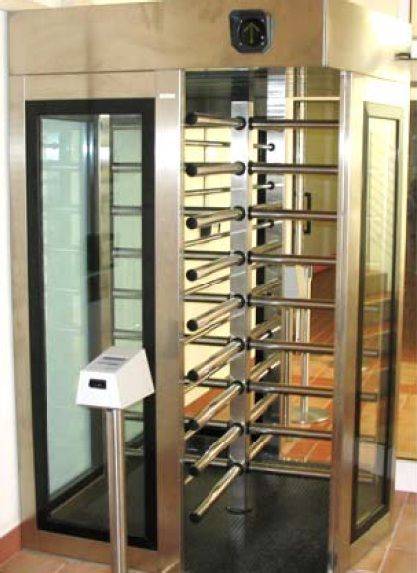

ClearSec Full Height Internal or External Turnstile

Application

Government, retail, finance, telecommunications, information technology, banking, publishing, leisure, petrochemical, education.

Description

Manual turnstile for perimeter and indoor applications requiring a high performance security turnstile with an elegant design.

Mechanism:

Operation is achieved by an electro-mechanical head mechanism located in the roof drum. It is silent in rotation and comprises the following standard features:

  • A positive action lock which prevents two passages at one time.
  • A self centering mechanism to ensure complete rotation of the head to the rest position.
  • An anti backup device prevents reverse rotation once the head has moved 30° from its rest position.
  • A hydraulic damper to ensure smooth and quiet operation.

Operating modes:

The mechanism can be configured to operate in two standard modes.

  • Normally closed: The mechanism is locked until a valid authorization signal is received.
  • Normally open: The mechanism is permanently unlocked and will only lock if passage is attempted without a valid authorized signal.

General information

Material

Steel

  • Casework: 304 grade grained stainless steel.
  • Rotor wings: 304 grade grained stainless steel.
  • Rotor spindle: Tubular 304 grade grained stainless steel.

Glass

Infill panels with made of transparent 5+5 security glass.

Size

1480 x 1480 x 2265 mm

ClearSec FOS 90S.

2200 x 1480 x 2265 mm

ClearSec FOS 90DI.

Uniclass 2015

Pr_30_59_34_78 Stainless steel full-height turnstilesPrimary

CAWS

L20/500 Manual revolving doors

Q50/160 Turnstile

Specification data - Stainless steel full-height turnstiles Enhanced data

Rotation

Anti-clockwise only.

Clockwise only.

Unidirectional.

Control unit

Required.

Finish

Grained stainless steel.

Product Reference

ClearSec FOS 90DI

FOS 90 Double Interlocking.

ClearSec FOS 90S

FOS 90 Single.

Unit

Single.

Double.

Orientation

Pass left.

Pass right.

NominalSize

1480 x 1480 x 2265 mm.

ClearSec FOS 90S.

2200 x 1480 x 2265 mm.

ClearSec FOS 90D.

Power failure

In the event of an emergency or isolation of power supply, unit may be configured to fail-safe i.e. rotor freely rotates or fail-lock i.e. rotor locks. Either option is available in both or one direction.

Fail lock.

Fail lock left, fail safe right.

Fail safe.

Fail safe left, fail lock right.

Accessories

Not required.

Cardreader and mounting.

Electro-mechanical counter.

LCD counter.

Push button control.

Show more

Operating temperature

-5 to +55°C.

Relative humidity 95% (maximum) for 90/120 S.

Glazing

10.7 mm thick laminated glass infill panel.

OperatingMode

By authorization signal.

The mechanism is permanently unlocked and will only lock if passage is attempted without a valid authorized signal. The mechanism is locked until a valid authorization signal is received.

Locking mechanism

Electro-mechanical head mechanism.

Operation is achieved by an electro-mechanical head mechanism located in the roof drum, it is silent in rotation.

NominalFrequency

50–60 Hz.

Voltage

230 V a.c.

Passage rate

12 passages per minute.

Insertion type reader.

15 passages per minute.

Swipe type reader.

17 passages per minute.

Proximity reader “hands free”.
