Application

  • Suitable for floors and walls.
  • Can be installed over plywood.
  • Concrete (dry and flat).
  • Floating floor (consult manufacturer for options).
  • Screed (Dry, flat; manufacturer recommends Primerfast moisture barrier is applied).
  • Joists (80 mm only; maximum 400 mm centres).
  • Sherwood 80 mm-wide boards are suitable for secret nail (with Ted Todd bitumen backed paper for moisture barrier) and structural floors (maximum 400 mm space between centres).

Description

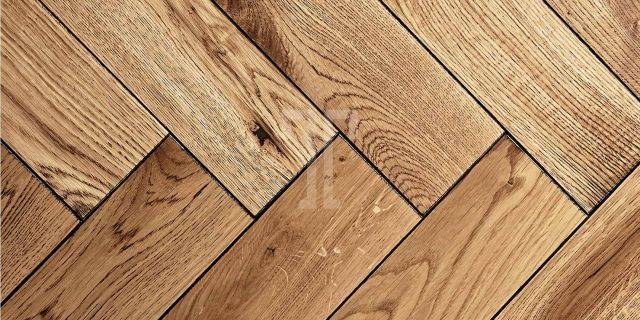

European oak flooring designed for use in a herringbone format.

Features and benefits:

  • Part of the CLASSIC TONES collection; consult manufacturer's literature for other designs.
  • EU Timber Regulation (EUTR) compliant.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

  • Suitable for floors and walls.
  • Can be installed over plywood.
  • Concrete (dry and flat).
  • Floating floor (consult manufacturer for options).
  • Screed (Dry, flat; manufacturer recommends Primerfast moisture barrier is applied).
  • Joists (80 mm only; maximum 400 mm centres).
  • Sherwood 80 mm-wide boards are suitable for secret nail (with Ted Todd bitumen backed paper for moisture barrier) and structural floors (maximum 400 mm space between centres).

Related products:

A range of complementary products is available, including formed treads and risers, L-sections, T-sections, reducers, scotia, skirting and architraves. Consult manufacturer for details.

Guarantee:

25-year product warranty.

General information
Specification data
Product Reference

CLASSIC TONES Collection - Herringbone

Type

Kielder, 100 mm-wide

Sherwood, 80 mm-wide

Sherwood, 100 mm-wide

Standard product features

Technical characteristics:

  • Thickness: 20 mm.
  • Wear layer: 6 mm hardwood (nominal).
  • Wood species: European oak.
  • Grade: Nature.
  • Certification: FSC Mix Credit.
  • Construction: Two ply engineered, 100% hardwood.
  • Edge detail: Micro bevelled.
  • Finish: Hardened oil.
  • Moisture content: 8–12% fair and average.
  • Slip rating: Dry: Low risk; Wet: Low risk.
  • Emissions to EN 14342: E1.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Formaldehyde emission: E1.
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Tonal variation: Medium natural.
  • Batch variation: Not advised to mix batches in one floor area.

Product Options

Type:

- Kielder, 100 mm-wide:

  • Width: 100 mm
  • Length: 500 mm.
  • Surface texture: Medium brushed.
  • Profile: Groove to three sides.
  • Tolerance: ±0.50 mm/ 95% in tolerance.
  • Tone: Neutral.

- Sherwood, 80 mm-wide:

  • Width: 80 mm.
  • Length: Random, up to 2.20 m.
  • Surface texture: Smooth.
  • Profile: Tongue and grooved to all sides.
  • Tolerance: ±0.25 mm/ 95% in tolerance
  • Tone: Mid

- Sherwood, 100 mm-wide:

  • Width: 100 mm.
  • Length: 500 mm.
  • Surface texture: Medium brushed.
  • Profile: Groove to three sides.
  • Tolerance: ±0.25 mm/ 95% in tolerance.
  • Tone: Mid.
