Description

Folding doorsets in traditional profiles with slim glazing units to complement the sash and casement window products.

General information
Finish

Colour from RAL classic range

Insert requirement.

Colour match

Insert requirement.

Dual finish

Insert requirement.

Three coats of spray applied water based micro-porous white paint (RAL 9003)

Uniclass 2015
Sliding door and partition sets (Pr_30_59_24_80)Primary
Specification data - Sliding door and partition sets
Product Reference

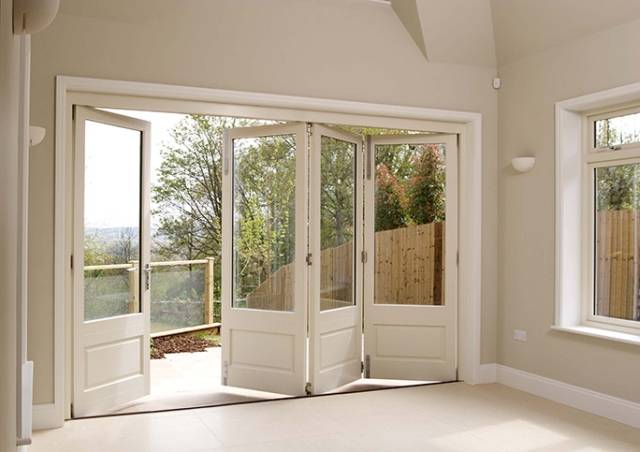

Classic Folding Doors

Timber

Engineered Accoya

Recommended for coastal areas.

Engineered clear grade knot free Siberian Larch frame and door leaves with hardwood Sapele internal sill and aluminium external sill

As standard.

Engineered Hardwood Red Grandis

Finish

Colour from RAL classic range

Insert requirement.

Colour match

Insert requirement.

Dual finish

Insert requirement.

Three coats of spray applied water based micro-porous white paint (RAL 9003)

Frame profile moulding

Lambs Tongue

Ovolo

Square

Glazing bars and sash internal perimeter profile

24 mm Lambs Tongue

24 mm Ovolo

Glass units and whole product U-values/ G-values

Fully glazed door with 14 mm double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Planitherm One

Whole door U-value: 1.7 W/m²K / G-value: 0.52.

14.8 mm double glazed unit comprising 6.8 mm sound control laminated/ 4 mm Krypton/ 4 mm Tough Planithern One

Whole window U-value: 2.0 W/m²K / G-value: 0.48.

Perimeter spacer bar

White aluminium

14 mm glass unit.

Silver/black aluminium

14 and 14.8 mm glass units.

Panels

27 mm insulated flat panel with bolection moulding

27 mm insulated grooved panel with bolection moulding

45 mm insulated raised and fielded panel with bolection moulding

Ironmongery

Black iron lever handle

Brass straight lever handle

Brass swan neck lever handle

Pewter lever handle

Polished chrome straight lever handle

Polished chrome swan lever handle

Satin chrome straight lever handle

Satin chrome swan lever handle

Operating hardware finish

Black

Brass

Polished chrome

Satin chrome

Standard product features

Timber

Engineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified.

Frame section:

112 x 139 mm (head width x depth), 68 x 139 mm (jamb width x depth).

Door leaf section (stile width x depth):

94 x 57 mm with 189 mm bottom rail.

Sill (height x depth):

56 x 188 mm.

Operation:

Top hung outward opening operating gear with multi point locking system.

Finish:

Three coat spray applied factory finish using water based micro-porous paint.

Weatherseal:

Schlegel Aquamac AQ109 & AQ21.

Glazing:

Externally putty glazed in accordance with Glass and Glazing Federation requirements

Product Options

Type:

Include specific dimensions and/ or drawing with specification.

Ironmongery:

Selected Croft ironmongery available on request.

Literature
Third party certifications
  • Timber FSC Certified
  • BS EN 644
  • ISO 9001
  • ISO 14001
  • British Woodworking Federation Member
  • Timber Window Accreditation Scheme Approved Manufacturer
  • Wood Window Alliance Founding Member
  • CE Marked
