Centurion Cubicles

General:

• Headrail: High strength, extruded aluminium.

• Pilasters: Slim section, rounded pilasters formed in high strength extruded aluminium.

• Wall fixings: Continuous channel

Ironmongery:

• Hinges: Aluminium, anti-tamper safety hinge.

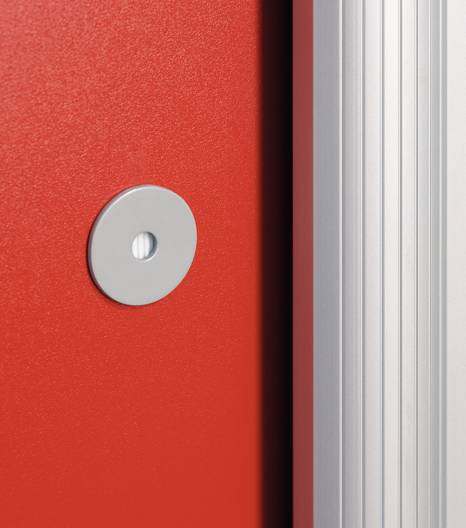

• Bolt: Aluminium, lever-operated indicator bolt with circular face plate and emergency release.

Product reference:

– Centurion HPL

• Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).

• Thickness: Partitions, 18 mm.

• Edge treatment: 1 mm thick matching PVC.

• Height: 2155 mm from FFL to top of headrail.

• Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Centurion SGL Full height:

• Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).

• Thickness: Partitions, 18 mm.

• Edge treatment: 1 mm thick matching PVC.

• Height (maximum): To 1500 mm deep: 3000 mm; 1501–2000 mm deep, 2570 mm.

• back

– Centurion MFC:

• Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.

• Thickness: Partitions, 18 mm.

• Edge treatment: 1 mm thick matching PVC.

• Height: 2115 mm.

• Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Centurion MFC full height:

• Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.

• Thickness: Partitions, 18 mm.

• Edge treatment: 1 mm thick matching PVC.

• Height (maximum): 2770 mm.

• Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Centurion SGL:

• Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.

• Thickness: 13 mm.

• Edge treatment: All edges radiused and polished (black).

• Height: 2115 mm.

• Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Centurion SGL:

• Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.

• Thickness: 13 mm.

• Edge treatment: All edges radiused and polished (black).

• Height (maximum): 2550 mm.

• Depth (maximum): 2000 mm from face of back wall or rear ducting.

Clearance:

• Floor clearance, standard height: 100 mm.

• Floor clearance, full height: At panels, 0 mm; at door, 10 mm.

• Ceiling clearance, full height: 45 mm.
