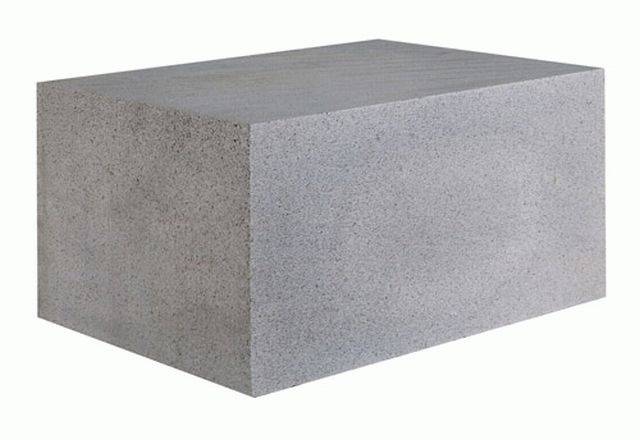

Celcon Foundation Blocks

Celcon Foundation Blocks

H+H UK Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Aerated autoclaved concrete blocks suitable for use below damp proof course (DPC) level.

Jump to:
+44 (0)1732 886444 www.hhcelcon.co.uk

Application

Celcon Foundation Blocks can be laid below DPC level without mortared perpends. Lay blocks in horizontal mortar bed joints; butting together to prevent the passage of vermin.

Description

Celcon Foundation Blocks are principally used below damp proof course (DPC) level for the support of cavity or solid walls; framed construction or suspended floors. The product is available in two strength categories and a range of thicknesses. Foundation blocks may also be used above ground for solid wall construction.

Application:

Celcon Foundation Blocks can be laid below DPC level without mortared perpends. Lay blocks in horizontal mortar bed joints; butting together to prevent the passage of vermin.

General information

Uniclass 2015

Pr_20_93_52_05 Autoclaved aerated concrete (AAC) blocksPrimary

CAWS

F10/360 Autoclaved aerated concrete (AAC) common blockwork

F10/37 Autoclaved aerated concrete (AAC) common blockwork

F10/370 Thin joint autoclaved aerated concrete (AAC) common blockwork

F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork

Specification data - Autoclaved aerated concrete (AAC) blocks

Product Reference

Celcon Standard Grade Foundation Blocks

Compressive strength: 3.6 N/mm².

Celcon High Strength Grade Foundation Blocks

Compressive strength: 7.3 N/mm².

Face size

325 x 215 mm

440 x 215 mm

Thickness

275 mm

300 mm

355 mm

Standard product features

Thermal conductivity:

  • Standard Grade Foundation Block: 0.24 W/m·K..
  • High Strength Foundation Block: 0.30 W/m·K..

Density:

  • Standard Grade Foundation Block: 600 kg/m³.
  • High Strength Foundation Block: 730 kg/m³.
