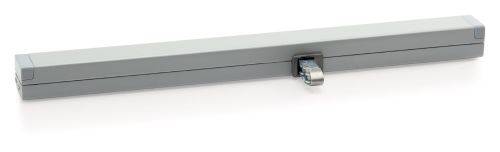

CDC Chain Actuator


A range of chain actuators, suitable for façade and roof windows.

Features and benefits:

  • Can be used for windows and vents for smoke exhaust; D+H Euro SHEV in accordance with EN 12101-2 and for daily ventilation.
  • With motor electronics controlled via microprocessor.
  • High-speed function (HS) for especially fast opening windows in case of fire (SHEV).
  • Integrated tandem safety cut-off for the operation of up to two drives on one window sash.
  • Relief of pressure on window gasket after closing process.
  • Power supply can be connected on the left or right.
  • Programmable drive functions and different drive parameters.
  • Time-controlled reversing when an obstacle is detected in the closed direction (active closing edge protection).

General information

Uniclass 2015

Pr_75_50_02_13 Chain actuatorsPrimary


L10/10 Wood windows

L10/15 Wood windows

L10/20 Steel windows

L10/210 Wood windows

L10/25 Aluminium windows

L10/250 Wood windows

L10/260 Wood windows

L10/30 PVC-U windows

L10/31 PVC-U windows

L10/310 Steel windows

L10/315 Steel windows

L10/33 Proprietary windows

L10/330 Aluminium windows

L10/335 Aluminium windows

L10/350 PVC-U windows

L10/360 PVC-U windows

L10/380 PVC-U windows

L10/390 Proprietary windows

L10/400 Composite windows

L10/410 Composite windows

L10/45 Rooflights

L10/460 Rooflights

L10/480 Roof windows

L10/490 Roof ventilators

L10/50 Roof windows

L10/650 Metal louvres

Specification data - Chain actuators

Product Reference

CDC Chain Actuator


See 'Options' below and insert reference.




Various options available consult literature and insert product reference(s).


Standard product features

Technical characteristics:

  • Supply: 24 V d.c.
  • Tensile force: 150 N.
  • Nominal locking force: 1500 N.
  • Service life: > 10 000 double strokes.
  • Open running speed: 6.7 mm/s.
  • Open running speed - SHEV: 11.4 mm/s. (CDC 200/600 and CDC 200/600-BSY+ Set drive).
  • Closed running speed: 6.7 mm/s. (Except: CDC 200/350 and CDC 200/350-BSY+ Set drives: 5 mm/s).
  • Ingress protection rating: IP 50.
  • Fire resistance: B300 (30 min/ 300°C).
  • Housing: Die-cast zinc.
  • Surface: Powder coated white aluminium (~RAL 9006).
  • Connection: 2.5 m cable.
  • Standards: EN 12101-2 CE certified.

Product Options


- CDC 200/350 drive (Stroke: 350 mm):

  • CDC 200/350. Rated input current: 0.6 A, force of pressure: 200 N.
  • CDC 350-PLP. Variable equipment possible.

- CDC 200/350-BSY+ Set drive (Stroke: 350 mm, 2 synchronised drives ):

  • CDC 200/350-BSY+ Set. Rated input current: 2 x 0.6 A, force of pressure: 2 x 200 N.
  • CDC 350-BSY+. Variable equipment possible.

- CDC 200/600 drive (Stroke: 600 mm):

  • CDC 200/600. Rated input current: 1 A, force of pressure: 200 N.
  • CDC 600-PLP. Variable equipment possible.

- CDC 200/600-BSY+ Set drive (Stroke: 600 mm):

  • CDC 200/600-BSY+ Set. Rated input current: 1 A, force of pressure: 200 N.
  • CDC 600-BSY+. Variable equipment possible.
