Description

Wincro Channels provide positive anchorages for fixing components and allow generous tolerances for setting-out.

Channel applications include:

  • Channels with ‘T’ head bolts, which provide fixing locations for Wincro masonry support systems and the Wincro range of windposts.
  • Retention of the standard range of either brickwork or cladding ties or special purpose-made components (see manufacturer's Ties and Restraints product catalogue).
  • Use as a framing medium to retain flat or curved cladding, or for carrying services supports.

Wincro Channels have a rectangular cross-section with nail holes for securing to shuttering. They are filled with expanded polystyrene to prevent the ingress of concrete during casting.

Fixing to channels is by 'T' head bolts. Tapped plate washers can be used as an alternative to 'T' bolts where non-standard bolt lengths or diameters are required.

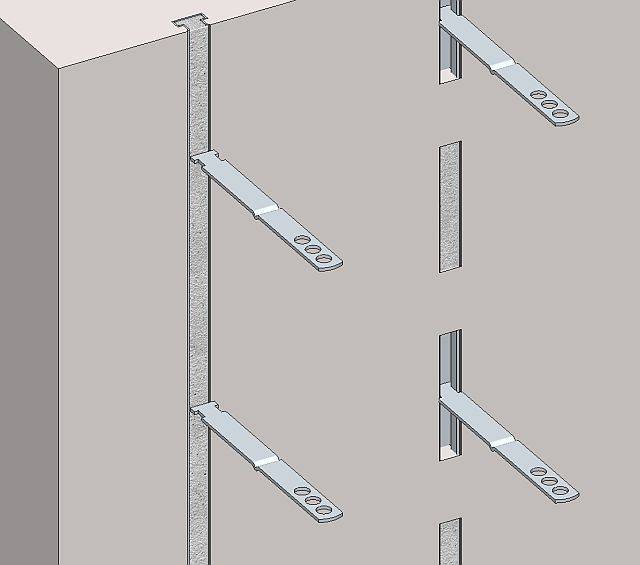

Wall ties can also be used with WC23 (23/19), WC28 (28/15) and WC38 (38/17) cast in channels.

General information
Size

100

WC23, WC41.

150

WC23, WC41.

3000

WC23, WC28, WC38, WC40, WC49.

Material

Grade 1.4301 (304) stainless steel

Grade 1.4401 (316) stainless steel

Uniclass 2015
Stainless steel cast-in channels (Pr_20_85_84_84)Primary
Specification data - Stainless steel cast-in channels
Product Reference

WC23

23/19 self-anchoring channel with infill.

WC28

28/15 channel with infill and lugs.

WC38

38/17 channel with infill and lugs.

WC40

40/25 channel with infill and lugs.

WC41

41/25 toothed channel with infill and lugs.

WC49

49/30 channel with infill and lugs.

Size

100

WC23, WC41.

150

WC23, WC41.

3000

WC23, WC28, WC38, WC40, WC49.

Material

Grade 1.4301 (304) stainless steel

Grade 1.4401 (316) stainless steel

Accessories

None

WBT28 M10 T-head bolt to suit WC28 channel

WBT38 M12 T-head bolt to suit WC38 channel

WBT40 M16 T-head bolt to suit WC40 channel

WBT41 M12/ M16 toothed T-head bolt to suit WC41 channel

WBT49 M16 T-head bolt to suit WC49 channel
