Caliente

Description

Radiator with slim tubes in a tight row for the delivery of a high heat output.

Available in single and double tube, and horizontal and vertical versions. It has a tube-on-tube design consisting of a tight array of slim tubes. It has a high-quality construction and paint finish.

Features and benefits:

  • Available in horizontal and vertical versions.
  • Conforms to BS EN 442.
  • Performs to a maximum working pressure of 145 psi (10 bar).
  • Available in a range of 15 sizes.
  • White (RAL 9016) in colour.
  • Five-year manufacturer’s warranty.

General information

Uniclass 2015

Pr_70_60_36_73 RadiatorsPrimary

CAWS

T90/465 Radiators

T90/465 Radiators

Specification data - Radiators

Product Reference

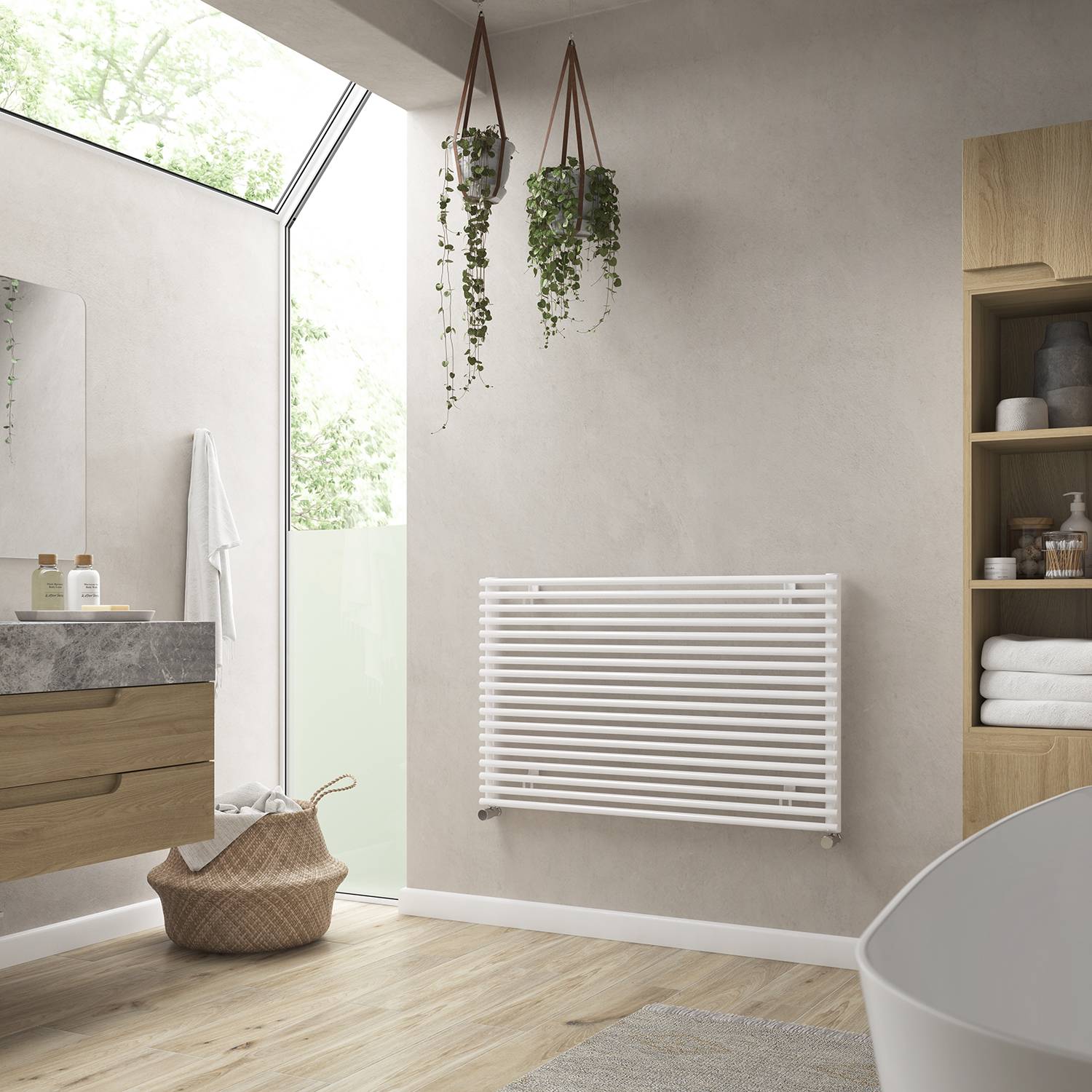

Caliente Horizontal

Horizontal radiator, available 594 x 800–1400 mm (h x l) for single tubes, 594 x 800–1000 mm (h x l) for double tubes.

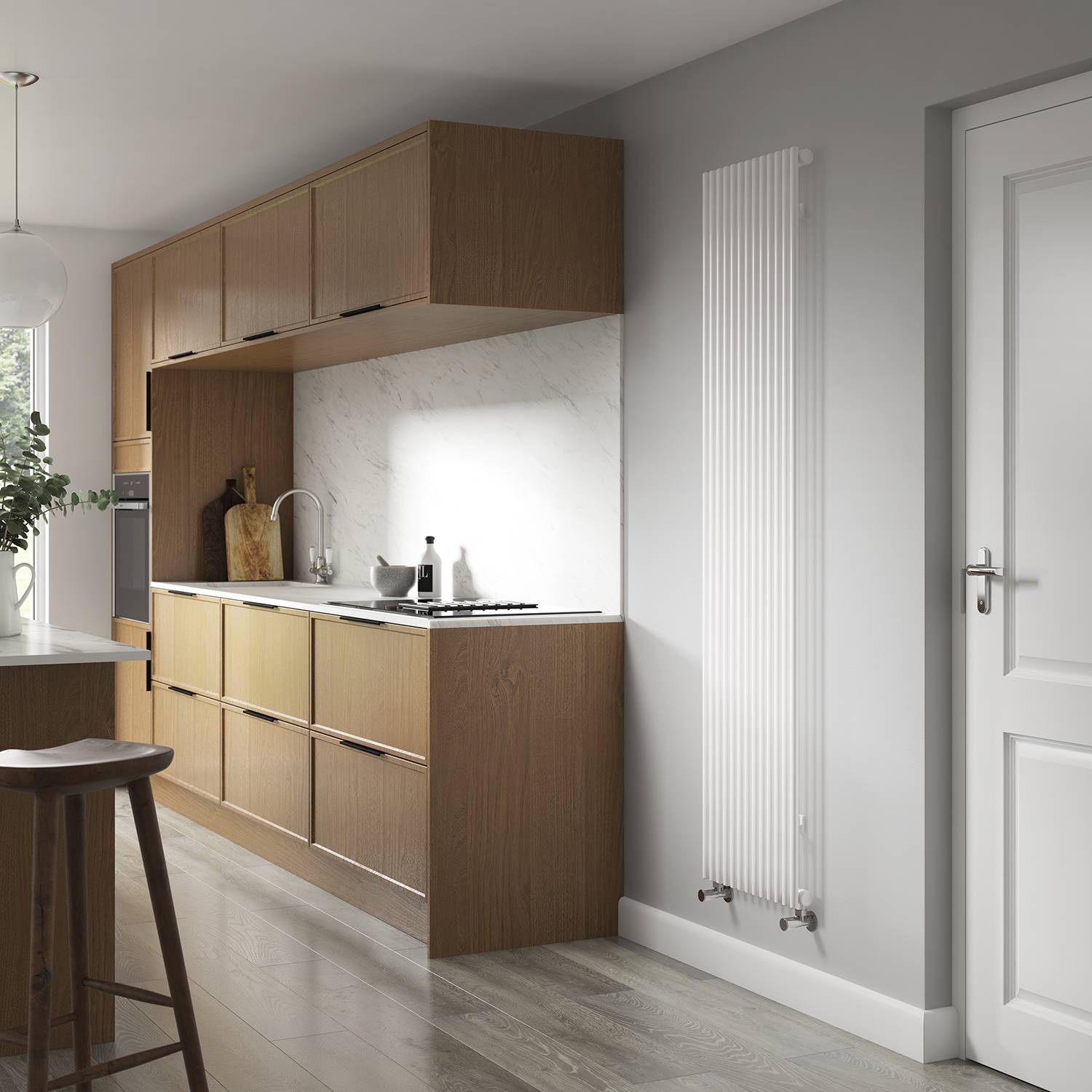

Caliente Vertical

Vertical radiator, available 1200–1800 x 330–726 mm (h x l) for single tubes, 1800 x 495–660 mm (h x l) for double tubes.

Tubes

Double tube

106/ 108 mm depth (including projection).

Single tube

74 mm depth (including projection).

Accessories

Insert requirements, contact manufacturer for information.

Standard product features

Colour:

White (RAL 9016).

Tube diameter:

20 mm (1.25 mm steel thickness) and 38 mm (1.4 mm steel thickness).

Heat output:

  • Horizontal: 626–1211 W/ 2136–4132 Btu/hr dependent on size and tubes, consult manufacturer's literature for information.
  • Vertical: 852–2310 W/ 2907–7253 Btu/hr.

Elements:

Dependent on size, consult manufacturer's literature for information.

Connections:

½” inlet connections as standard.

Pressures:

  • Working pressure: 10 bar.
  • Operating pressure: 13.5 bar.

Technical characteristics:

Dependent on size and tubes, consult manufacturer's literature for information.
