Calder Washing Trough

Calder Washing Trough

Armitage Shanks

New central outlet commercial washing trough in stainless steel available with upstand. Two washing position 120cm with or without taphole positions, for bib taps.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk
Description

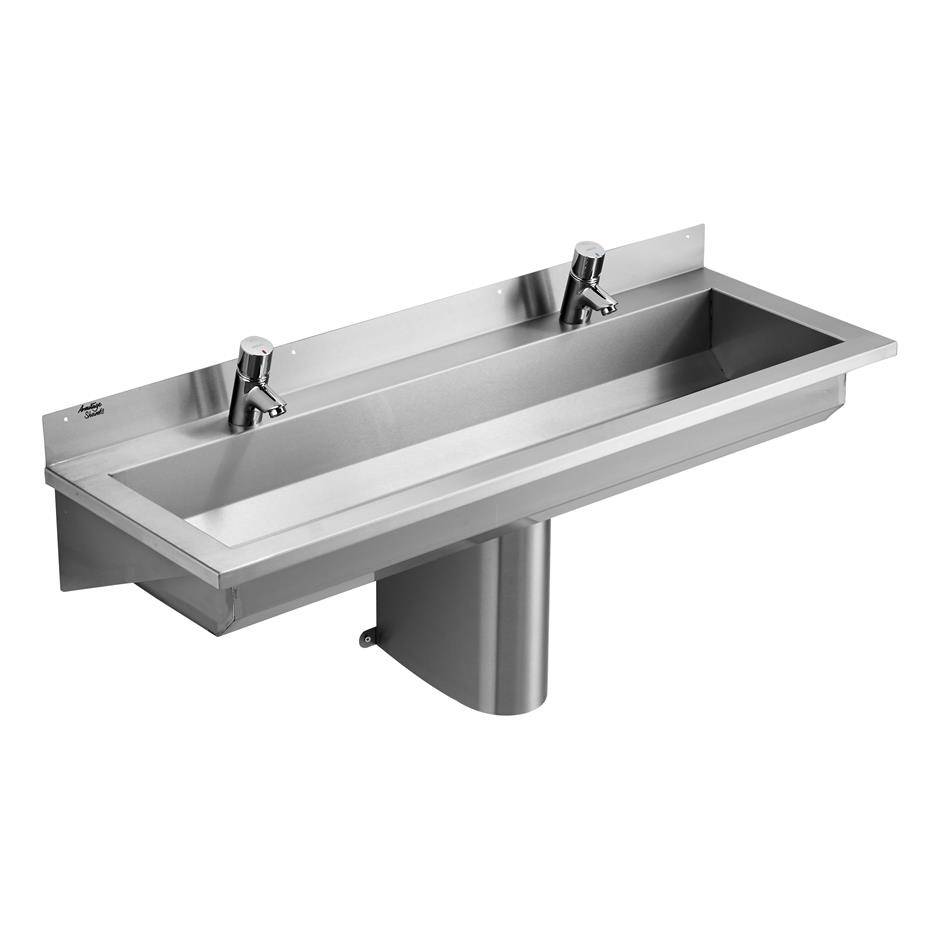

Calder stainless steel washing trough 120cm long 2 taphole positions, central outlet with 2" domed waste

  • Screw to wall
  • Three standard lengths
  • Stainless steel
  • 2 position without tapholes

General information

Finish

Chrome - (AA)

Stainless Steel finish - (MY)

Color

White

Features

180 cm centre outlet 2in domed waste, 3 taphole positions

120 cm centre outlet 2in domed waste, for bib taps for 2 people

240 cm centre outlet 2in domed waste, 4 taphole

120 cm centre outlet 2in domed waste, 2 taphole

Material

Vitreous china

Shape

Rectangular

Size

1200 x 415 x 520 mm

WarrantyDescription

Manufacturers warranty

Uniclass 2015

Pr_40_20_96_99 Wash troughsPrimary
Specification data - Wash troughs

Product Reference

S2824 - Calder 120/180/240/300cm Washing Troughs

Calder Washing Trough 120cm Centre Outlet 2in Domed Waste, 2 Taphole

S2823 - Calder 120/180/240/300cm Washing Troughs

Calder Washing Trough 120cm Centre Outlet 2in Domed Waste, For Bib Taps

S2825 - Calder 120/180/240/300cm Washing Troughs

Calder Washing Trough 180cm Centre Outlet 2in Domed Waste, 3 Taphole Positions

S2826 - Calder 120/180/240/300cm Washing Troughs

Calder Washing Trough 240cm Centre Outlet 2in Domed Waste, 4 Taphole

S2827 - Calder 120/180/240/300cm Washing Troughs

Calder Washing Trough 180cm Centre Outlet 2in Domed Waste

S2828 - Calder 120/180/240/300cm Washing Troughs

Calder Washing Trough 240cm Centre Outlet 2in Domed Waste

S0384 - Calder 120/180/240/300cm Washing Troughs

Calder Washing Trough 300cm Centre Outlet 2in Domed Waste, 5 Taphole

Ancillary

B1687 - Bib tap ancillary

Nimbus 21 Exposed bib tap wall mount

B1681 - Bib tap ancillary

Nimbus 21 Bib tap extension 1/2" x 75mm

B1685 - Bib tap ancillary

Nimbus 21 Concealed bib tap wall mount

B1682 - Bib tap ancillary

Nimbus 21 Bib tap extensions 1/2" x 75mm

Not required

Finish

Chrome - (AA)

Stainless Steel finish - (MY)

Standard product features

Trough Sink:

  • Material: Stainless Steel
  • Weight: 11.60 kg
  • Standards: Stainless steel sheet to BS EN 10088:Part 2:2005

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 2.45 kg
  • Flowrate: 4.70 lpm @ 3bar

Thermostatic Valve:

  • Material: Chrome Plated Metal
  • Weight: 0.60 kg

Product Options

Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device see A5900AA

Digital objects
Platform Compatible Version Certified to
Revit

Revit 2013

1

1.2
Download now from NBS National BIM Library
