Bromley Red Multi - Clay Facing Brick

Verified by manufacturer 15 hours ago

WF

Vandersanden Brick Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

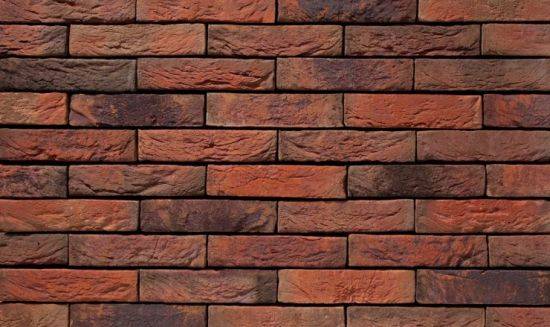

A red clay brick with dark shades of purple and brown.

Jump to:
+44 (0) 1954 268075 Website

Description

The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand formed.
  • Multi-shade.


For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.


Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here


Over 1.1 million possibilities!

Create, download and visualise beautiful brick facades with our New Texture Generator here


Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here

General information

Color

Red

Brown

Purple

Finish

Sanded

Coated

Material

Clay

Shape

Rectangle

Length

214 mm

Width

101 mm

Height

65 mm

Material

Clay

Uniclass

Pr_20_93_52_15 Clay bricksPrimary

CAWS

F10/110 Clay facing brickwork

F10/5 Facing brickwork

Product range

Bricks

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Appearance

Red with dark shades of purple and brown; with a sanded-coated and grained structure.

Work size (length x width x height)

211 x 100 x 50 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

≥20 N/mm².

Guidance for specification option:

Tested to the bed face.

Category

-

Manufacturer guidance

Manufacturer's standard.

Durability designation

F2.

Density

-

Gross dry

1630 kg/m³.

Net dry

1740 kg/m³.

Tolerance

D1.

Water absorption

≤14% m/md.

Configuration

Frogged.

Recycled content

-

Manufacturer guidance

Manufacturer's standard.

Thermal conductivity

≤0.60 W/m·K.

Guidance for specification option:

 Lambda 50/50.

Thermal resistance

-

Manufacturer guidance

Manufacturer's standard.

Water vapour permeability

5/10 µ.

Bond strength

-

Manufacturer guidance

Manufacturer's standard.

Reaction to fire

Class A1.

Active soluble salts

S2.

Jointing

Beige.

Light grey.

Grey.

Joint free.

White.

Sustainability data

Country of material origin

-

Manufacturer guidance

Europe.

Country of product manufacture

Belgium

Material

Clay

Recyclability

Recyclable

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001 certificate
