Description

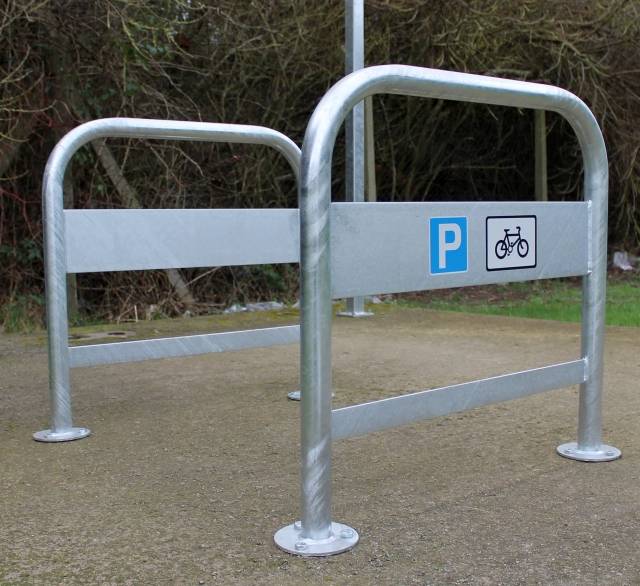

The VELOPA Birmingham Cycle Stand features an integrated signage plate and tapping rail, making it fully compliant with the cycle parking recommendations on the Birmingham transport network. The signage plate incorporates the Cycle Parking ‘P’ and cycle symbol signs as standard ensuring cycle parking areas are easily identifiable at all times. The design of the Birmingham Cycle Stand allows cyclists to secure the frame and wheel of their bicycles to the stand using their own lock. Each stand is suitable for securing up to two bicycles.

Features:

  • Length: 800 mm; height (above ground): 750 mm.
  • Ragged as standard, flanged options are available.
  • Ragged version 300 mm below ground.
  • 48 mm diameter tube.
  • Three bolts required per flange (six per stand).
  • Tapping rail fixed at 100 mm above the ground.
  • Signage plate fixed at 300 mm above the ground.
  • Signage plate includes Cycle Parking 'P' and cycle symbol signs.
  • Manufactured from galvanized carbon steel as standard to BS EN ISO 1461.
  • Stainless steel is grade 304 (1.4301) as standard, grade 316 (1.4401) available to order.
  • Other RAL and BS colours available.
  • Reflective tape is available upon request.

General information
Features

Length: 800 mm; height (above ground): 750 mm

Ragged as standard, flanged options are available

Ragged version 300 mm below ground

48 mm diameter tube

Three bolts required per flange (six per stand)

Tapping rail fixed at 100 mm above the ground

Signage plate fixed at 300 mm above the ground

Signage plate includes Cycle Parking 'P' and cycle symbol signs

Manufactured from galvanized carbon steel as standard to BS EN ISO 1461

Stainless steel is grade 304 (1.4301) as standard, grade 316 (1.4401) available to order

Other RAL and BS colours available

Reflective tape is available upon request

Uniclass 2015
Carbon steel cycle stands (Pr_40_30_21_12)Primary
Specification data - Carbon steel cycle stands
Product Reference

Birmingham Cycle Stand, ragged: 138515270

Birmingham Cycle Stand, flanged: 138515275

Stainless Steel Birmingham Cycle Stand, ragged: 138515274

Stainless Steel Birmingham Cycle Stand, flanged: 138515279

Reinforcement

Not required

Required

Standard product features

Wall thickness:

  • Galvanized: 3 mm.
  • Stainless steel: 2 mm.

Weight:

  • Birmingham Cycle Stand, ragged: 15.2 kg.
  • Birmingham Cycle Stand, flanged: 13.8 kg.
  • Stainless Steel Birmingham Cycle Stand, ragged: 12.0 kg.
  • Stainless Steel Birmingham Cycle Stand, flanged: 11.2 kg.

Product Options

Colour/ Finish:

  • Galvanized finish as standard. Colour coated and Stainless Steel options are available (please state RAL/BS numbers for colour coated versions).
  • Reflective tape is available upon request (please state RAL/BS numbers for coloured tape).
