BIOTRAP-AG Above Ground - Grease Trap
Verified by manufacturer 3 days ago
BIOTRAP-AG-9050
BIOTRAP-AG-9050
Above-ground grease trap.
Application
Suitable for indoors and outdoors. Above ground only.
Description

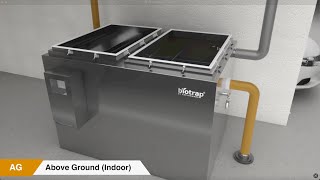

BIOTRAP-AG is an above-ground grease trap for indoor and outdoor applications.
The BIOTRAP-AG lids are made from 304-grade stainless steel and are secured to the unit with several drop-down threaded knobs. No tools are required for opening and closing the lids.
The compression seals on the BIOTRAP-AG ensure a 100% airtight seal, so it is well suited for indoor (above ground) locations such as kitchens, store rooms and corridors.
The BIOTRAP-AG can be installed below the sewer line, e.g. basements, carparks and cellars. A secondary holding tank is installed on the outlet side of the grease trap, where grey water is collected and pumped up to the main sewer line at ground level.
The BIOTRAP-AG is available in 13 standard sizes or can be made to measure with variable inlet and outlet locations to suit existing on-site pipework.
Features and benefits:
- Double seal for zero malodours.
- Removable lids for thorough cleaning.
- Lifting pump for basement kitchens.
- Removable baffle.
- Optional daily bacterial treatment.
- Variable inlet and outlet locations.
General information
Color | Silver |
Finish | Mill |
Material | Stainless steel |
Shape | Rectangle |
Length | 924 mm 1024 mm 1416 mm 1616 mm 1836 mm |
Width | 624 mm 724 mm 996 mm 1116 mm 1296 mm |
Height | 496 mm 606 mm 960 mm 1011 mm 1190 mm |
Warranty description | Two year |
Uniclass | |
CAWS | R11/46 Grease traps and converters R11/380 Grease traps and converters |
SKU Code | BIOTRAP-AG-9050 |
Specification data - Free-standing grease separators and converters
Classification data | |
Standards | To BS EN 1825-1 and BS EN 1825-2. |
Certification | CE marked. |
Material | Stainless steel. |
Size (nominal) | 1 L/s. |
Connections | |
Inlet pipe diameter | 40 mm. 50 mm. 110 mm. 160 mm. 220 mm. 254 mm. |
Outlet pipe diameter | 40 mm. 50 mm. 110 mm. 160 mm. 220 mm. 254 mm. |
Electrical supply | Not required. |
Integral accessories | Removable lid, removable baffle, variable inlet and outlet locations. |
Accessories | Not required. Automatic dosing system. Guidance for specification option: The system is comprised of a dosing pump, FAT ATTACK® bacterial treatment, and wall mounted stainless steel lockable box. Refer to the manufacturer's literature for details. Grey water holding tank and lifting pump. Guidance for specification option: For basement applications where grey water leaving the grease trap needs to be pumped up to the main sewer line at ground level. |
Dimensions | 924 x 624 x 496 mm. |
Capacity | 199 L. |
Sustainability data
Material | Stainless steel |
Literature
Literature type
BIOTRAP-AG Above Ground Installation Detail
BIOTRAP-AG Above Ground Brochure
