Description

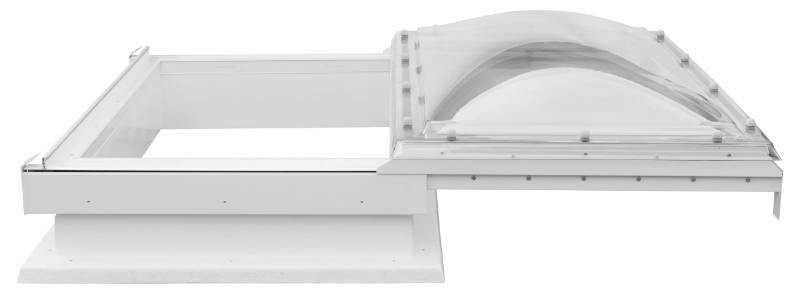

Single leaf sliding powered opening roof access hatch. Internal dimensions 1000 mm x 1500 mm. Curb insulation is 60 mm extruded polyurethane. Operating mechanism is a single rotating actuator mounted on a sliding carriage which opens the cover to 180°.

Curb is a double-layer thermoformed polycarbonate dome assembled on a fully welded PVC frame, in which a double layer security glass is inserted. Cover will have extruded EDPM rubber gasket to ensure a continuous seal when compressed in the front and back of the vent.

Factory finish is: clear finish polycarbonate dome, clear finish double layer security glass, white PVC profiles, white powder coated metal profiles, white upstand. Dome tested for impact resistance to EN1873 Class SB1200.

General information
Features

Kerb mounted junction box with terminal block enclosed for power cable connection

Shape

Rectangular

Size

1800 x 1300 mm

WarrantyDescription

Manufacturer's warranty

Uniclass 2015
Roof hatches (Pr_30_59_36_74)Primary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
