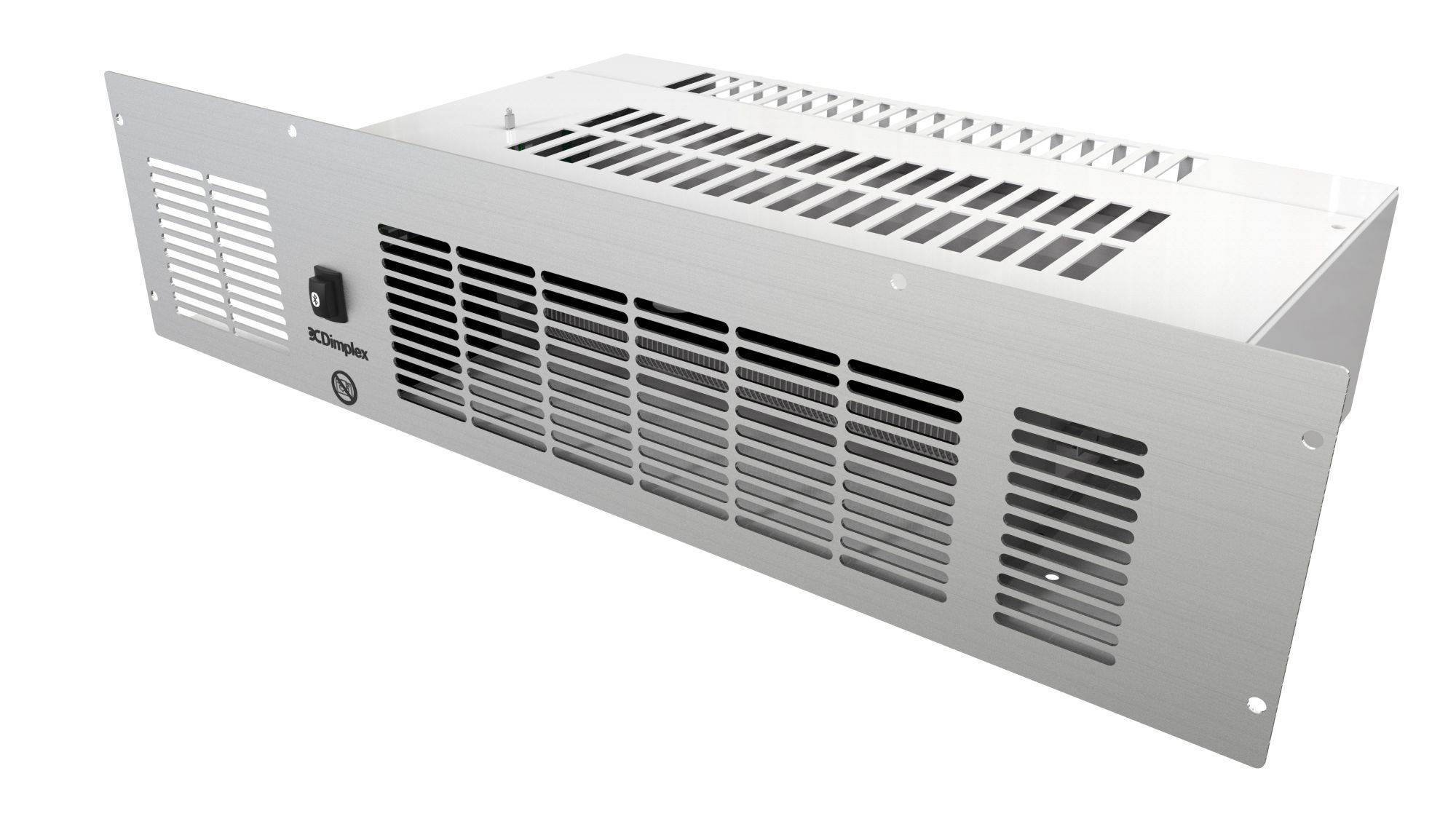

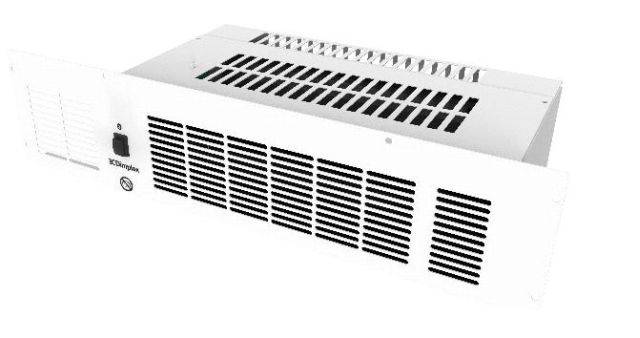

BFHE Plinth Heater

BFHE Plinth Heater featuring a seven-day timer with electronic thermostat that can be used with Dimplex panel and storage heaters. This heater fits into plinth space under cabinets in rooms with wall space restrictions.

Features and benefits:

  • User programmable room temperatures with seven-day timer.
  • Accurate electronic thermostat.
  • Features energy-saving Adaptive Start technology.
  • Same size and fixings as older Dimplex BFH heaters.
  • Forward facing grille with fan-assisted output for optimum heat circulation.
  • Choice of three coloured grilles to blend in with kick space.
  • Remote control via Bluetooth remote.
  • Complies with Lot 20 of ERP Directive.
  • Supplied with Bluetooth remote.
  • CE and BEAB approved.

Supplied with a two year warranty.

General information


Variable thermostat, three outputs selectable, fan only option for cool air circulation, three fascia colours available




120 x 500 mm

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary


V90/590 Equipment

Specification data - Room heaters

Product Reference




Supplied with three fascias (brown, white, stainless steel).

Standard product features

Size (h x w x d):

120 x 490 x 226 mm.

Technical characteristics:

  • Loading: 2.4 kW.
  • Number of elements: Two (800 and 1600 W).
  • Controls: Controls via Bluetooth remote and Remo smartphone app. Timer modes: 7 Day Programmable User Timer. Continuous heat modes: Manual, Runback Off. Controller functions: Adaptive Start, Advance time period, Adjustable SP range (7-32°C). Bluetooth for software updates and control.
  • Thermostat: Bi-metal type, air temperature sensing.
  • Cable: 1.4 metres fitted.
  • Connections: Supplied with flexible hoses and isolating valves to connect the unit's copper pipes to the flow and return pipes of the central heating system.
  • Thermal cut out: Interrupt supply to reset type.

Digital objects
PlatformCompatibleVersionCertified to
Revit 2016 1 2.0
- 1 2.0
Download now from NBS National BIM Library
