Belleville Granite Paving

Application

Suitable for vehicular trafficked and pedestrian areas.

Please note that colour variations and markings are characteristic of natural stone.

Description

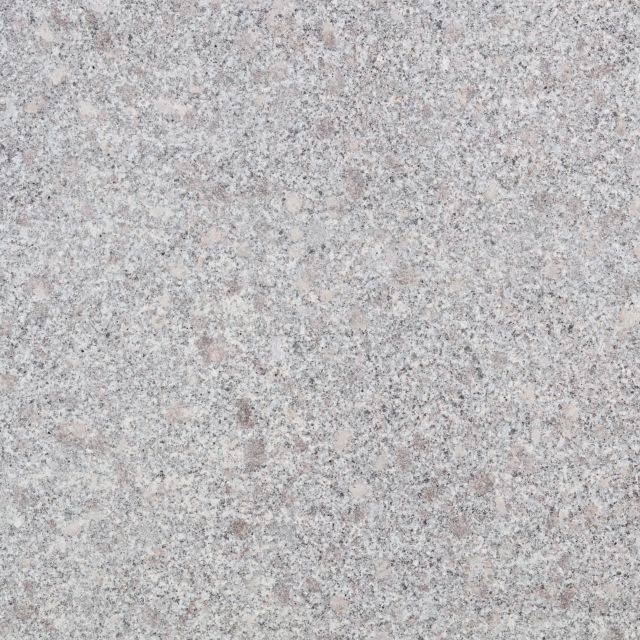

Sawn granite paving from Vietnam, with a white and black background and violet/ pink crystals.

Features and benefits:

  • Hard-wearing, strong and versatile.
  • Attractive appearance.
  • Available in three finishes.
  • Has non-slip/ skid properties.
  • Can be used as a standalone product, or mixed with other colours/ products from the Marshalls range.
  • CE marked, and manufactured in accordance with BS EN 1341: 2012.

Also available as setts, tactile paving, bespoke masonry and street furniture – consult manufacturer for details.

Applications:

Suitable for vehicular trafficked and pedestrian areas.

Please note that colour variations and markings are characteristic of natural stone.

General information

Finish

Available in three finishes

Material

Sawn granite

Size

Various

Uniclass 2015

Pr_25_93_60_58 Natural stone paving slabsPrimary

CAWS

Q25/310 Natural stone slabs

Q25/26 Natural stone slab paving system

Specification data - Natural stone paving slabs

Product Reference

Belleville Granite Paving

Standard

CE marked, and manufactured in accordance with BS EN 1341: 2012

Stone denomination

-

Petrological family

Coarse grained Pophyritic fresh Granite / Granodiorite

Colour

White and black background and violet/ pink crystals

Origin

Binh Dinh Province, Vietnam

Physical properties

-

Dimensions and associated tolerances

-

PhysicalPropertiesDimensionsAndAssociatedTolerancesNominalSizes

200 x 100 x 50 mm

200 x 100 x 60 mm

200 x 100 x 70 mm

300 x 100 x 50 mm

300 x 100 x 60 mm

300 x 100 x 70 mm

300 x 150 x 50 mm

300 x 150 x 60 mm

300 x 150 x 70 mm

300 x 200 x 50 mm

300 x 200 x 60 mm

300 x 200 x 70 mm

450 x 450 x 50 mm

450 x 450 x 60 mm

450 x 450 x 70 mm

600 x 600 x 50 mm

600 x 600 x 60 mm

600 x 600 x 70 mm

900 x 450 x 50 mm

900 x 450 x 60 mm

900 x 450 x 70 mm

900 x 600 x 50 mm

900 x 600 x 60 mm

900 x 600 x 70 mm

Tolerances on plan dimension and thickness (nominal)

Paving Class 1 tolerances to all dimensions as standard. Setts Class 2 tolerances to all dimensions as standard. Kerbs Class 2 tolerances to all dimensions as standard. Others by agreement

PhysicalPropertiesFinish

Fine picked

Flamed

For improved slip resistance.

Polished

Performance requirements

-

Slip Resistance

Dry slip resistance (to BS 14231): Fine picked: 99; flamed: 92; polished: 66.5. Wet slip resistance (to BS 14231): Fine picked: 83; flamed: 71; polished: 19

Breaking load

13.5 MPa Mean value to EN 12372: 2006 (Lev = 11.41 MPa)

Water absorption (maximum)

0.2 % Mean value to EN 13755: 2008 (Hev=0.34%)

Standard product features

Colour:

White and black background and violet/ pink crystals.

Features:

Hard-wearing, strong and versatile, attractive appearance, available in three finishes and has non-slip/ skid properties. Can be used as a standalone product or mixed with other colours/ products from the Marshalls range and CE marked, and manufactured in accordance with BS EN 1341: 2012.

Finish:

Available in three finishes.

Material:

Sawn granite.

Size:

Various.

Embodied carbon:

Varies, 94.5–132 kg CO2 m².

Country of origin:

Binh Dinh Province, Vietnam.

Environmental information

Embodied carbon

Varies, 94.5–132 kg CO2 m²
