Description

Stainless steel, high speed behind mirror hand dryer. Suitable for high specification washrooms in airports, office blocks, schools, etc.

Features:

  • Tough stainless steel cover for strength and durability.
  • Unique restraint system allows both units to be fitted and removed from below.
  • Superior technical design - dual thermal overload protection on motor and heating element.
  • No touch operation by electronic infra-red sensor maximises hygiene and economy of operation.
  • Infra-red sensor.
  • Fully automatic operation - switches off within 3 seconds of hand removal.
  • 1.5 mm thick stainless steel - very tough design.
  • Five year warranty.
  • Warm air output of 314.5 m³/hour (185CFM).
  • Only 73 dB (±3) at 1 m.
  • 7500 rpm brush motor with dual ball bearings.
  • IPX1 rated and Class 1 rated isolation.
  • 200 W induction motor.
  • 2100 W heating element.
  • Can be used in conjunction with BC5262-103 Dolphin Paper Towel Dispenser.

General information
Features

Hands only

Finish

Satin

Material

Stainless steel

Size

120 x 340 x 257 mm

Uniclass 2015
Hand dryers (Pr_40_70_62_37)Primary
Specification data - Hand dryers
Product Reference

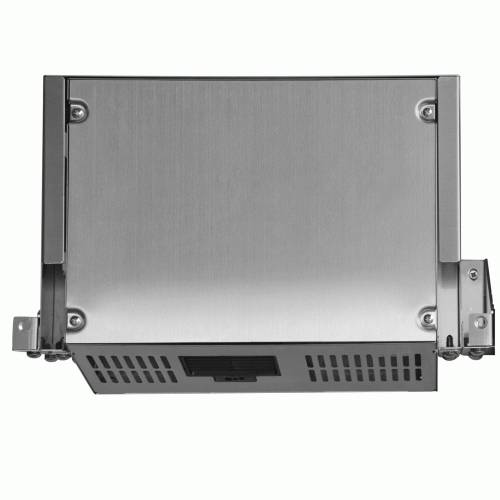

BC5262-102 Dolphin Behind Mirror Hot Air Hand Dryer

Standard product features

Dimensions (h x w):

257 x 340 mm.

Projection:

120 mm.

Finish:

Satin.

Digital objects
PlatformCompatibleVersionCertified to
AECOsim
- 1.0
IFC
IFC2X3 4 1.3
Revit
Revit 2015 4 1.3
