Description

A recessed wall mounted, stainless steel, automatic hot air hand dryer with fixed outlet.

General information
Features

Designed with 105°C thermostat

Heater assembly: Designed with 87°C thermostat

Dryer delivers 362 m³/h (202 CFM)

Sound level: 68±5 dB

Approximately 20-25 seconds drying time

Automatic with infra-red sensor

Two vandal-proof lock screws and key wrench

Ingress protection: IPX1

Five years manufacturer's warranty

Brush motor: 2000 W

Motor speed: 3800 rpm

Finish

Constructed from satin stainless steel (type 304)

Uniclass 2015
Hand dryers (Pr_40_70_62_37)Primary
Specification data - Hand dryers
Product Reference

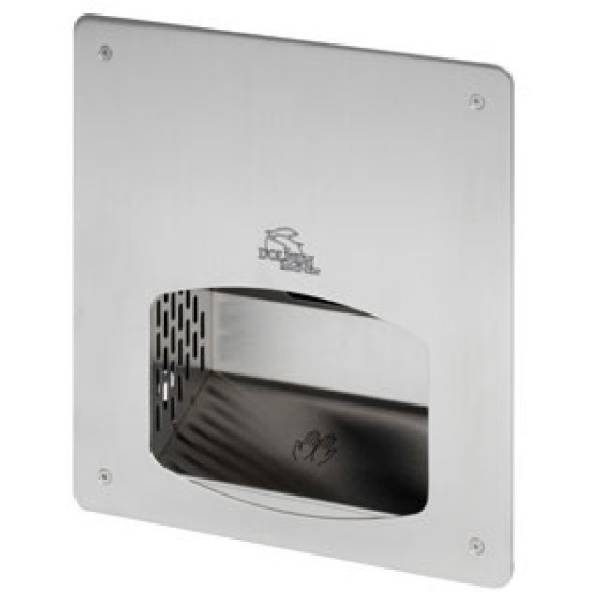

BC 2200 SA(R) Dolphin Recessed 2200 W Satin Stainless Steel Hot Air Hand Dryer

Standard product features

Finish:

Constructed from satin stainless steel (type 304).

Features:

  • Designed with 105°C thermostat.
  • Heater assembly: Designed with 87°C thermostat.
  • Dryer delivers 362 m³/h (202 CFM).
  • Sound level: 68±5 dB.
  • Approximately 20-25 seconds drying time.
  • Automatic with infra-red sensor.
  • Two vandal-proof lock screws and key wrench.
  • Ingress protection: IPX1.
  • Five years manufacturer's warranty.
  • Brush motor: 2000 W.
  • Motor speed: 3800 rpm.

Dimensions:

  • 360 mm high x 340 mm wide x 2 mm projection.
  • Recess: 155 mm deep.
