BASWA Sonic

Verified by manufacturer 3 months ago

BASWA Sonic

BASWA acoustic AG Variant:

Concealed flat panel speaker for seamless integration with BASWA Phon acoustic ceilings and walls.

Jump to:
+44 (0)777 334 2181 www.baswa.com

Application

The panels can be integrated in ceilings as well as walls, and they are exclusively installed within straight, horizontal, vertical or sloping surfaces.

Description

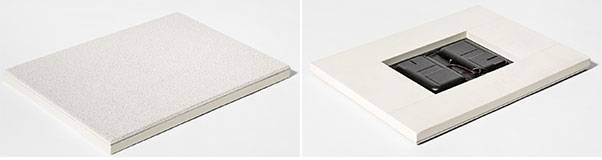

BASWA Sonic/ Carbon panels integrate flat panel loudspeakers invisibly and seamlessly in a BASWA Phon system. They basically comprise the flat panel loudspeaker and a special polymer membrane, which is covered with an open-pore pre-coating. The BASWA Sonic/ Carbon panels should be adhered with BASWA Fix C or BASWA Fix K to a fixed, sealed substrate (generally on walls, solid ceilings or suspended mineral fibre ceilings). The ceiling is then usually covered with BASWA Phon acoustic panels, the ceiling joints are grouted, and a covering of BASWA coating compound is then applied. This produces a seamless, smooth and absorbent surface in which the loudspeaker is invisibly incorporated.


General information

Material

Foam

Shape

Rectangle

Length

800 mm

Width

600 mm

Height

Bespoke

Uniclass

Pr_70_75_06_50 LoudspeakersPrimary

CAWS

K13/170 Acoustic panel lining

Specification data - Loudspeakers

Frequency response

100–18.5 kHz.

Sensitivity

78 dB/ 1 W/ 1 m.

Rated impedance

4 Ω.

Dimensions

600 x 800 mm.

Materials

Full spectrum bending wave converter with special polymer membrane, in-wall mounting plate and 10 mm factory-applied, open-pore pre-coating made of organically bonded recycled glass granules.

ThermalConductivity

0.03 W/mK.

Power rating

40 W.

Fire classification

B2.

Thickness (when installed, with BASWA surface coating)

30 mm.

40 mm.

Weight: 3.9 kg.

50 mm.

Weight: 4 kg.

70 mm.

Weight: 4.1 kg.

Environmental information

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Switzerland

Recyclability

No
