Application

The system is used to provide durable hygienic floors with quiet comfort and stylish functionality.

  • Schools and nurseries.
  • Prisons.
  • Retail stores.
  • Corporate headquarters.
  • Office, exhibition and show room floors.
  • Hospital and care homes.

The system offers excellent mechanical properties and good abrasion and wear characteristics for dry areas subject to pedestrian traffic.

Description

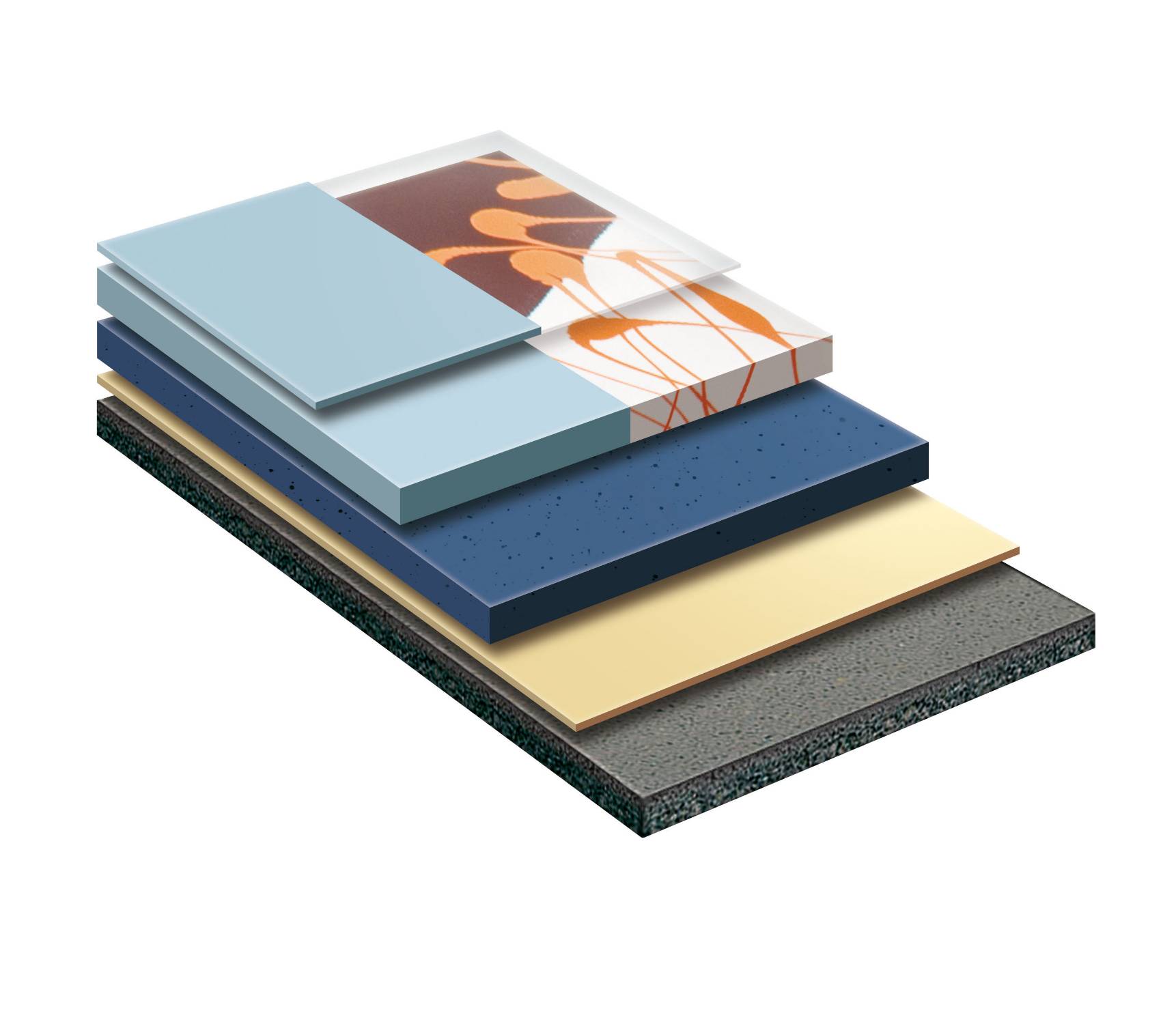

MasterTop 1327 incorporates a 2–4 mm thick self-smoothing elastomeric polyurethane flooring system installed on to a very elastic 4 mm thick resin comfort underlayment.

The system removes the need to use rubber crumb mats to achieve high comfort levels and sound absorption properties in ergonomic resin flooring systems.

It provides a tough and scratch resistant finish with an ergonomically warm, comfortable feel and a high degree of energy absorption. It is a seamless floor without joints or welds even around columns and over large open areas.

System components:

  • Primer (and optional scratch primer): MasterTop P 617.
  • Elastioc underlayment: MasterTop BC 329.
  • Bodycoat: MasterTop BC 325N, MasterTop BC 375N or MasterTop BS 361N.
  • Topcoat: MasterTop TC 407W (pigmented. Clear finish is available only with MasterTop BC 361N).

Slip resistance:

Slip resistance will vary depending upon the method and conditions of application, the nature of any polishes used and the standards of housekeeping. Typically the coefficient of friction as measured using the TRRL slip resistance tester and 4S rubber is: Standard finish 85 (dry).

Features and benefits:

  • Sound deadening properties with a flexible finish.
  • A permanently elastic, wear-resistant surface provides a durable long lasting floor.
  • High energy absorption capacity reduces the risk of injury resulting from falls.
  • Monolithically bonded to the substrate.
  • Low emissions to AgBB.
  • 40 year life cycle costing.
  • CE marked.

Applications:

The system is used to provide durable hygienic floors with quiet comfort and stylish functionality.

  • Schools and nurseries.
  • Prisons.
  • Retail stores.
  • Corporate headquarters.
  • Office, exhibition and show room floors.
  • Hospital and care homes.

The system offers excellent mechanical properties and good abrasion and wear characteristics for dry areas subject to pedestrian traffic.

General information
Color

Available in a large range of RAL colours

Features

crack-bridging, UV stable, enhanced acoustic performance, high walking comfortable, easy to clean

WarrantyDescription

10

Uniclass 2015
Resin flooring systems (Ss_30_42_54_75)Primary
Specification data - Resin flooring systems
Product Reference

MasterTop 1327 With 12 dB Noise Reduction

2–4 mm total thickness.

MasterTop 1327 With 16 dB Noise Reduction

3.5–4 mm total thickness.

MasterTop 1327 With 20 dB Noise Reduction

6–7 mm total thickness.

Scratch primer

Not required

Required, MasterTop P617

Resin flooring -
Nominal thickness

6 mm

7 mm

Body coat

MasterTop BC 325N

MasterTop BC 361N

MasterTop BC 375N

Required for 20 dB noise reduction.

Colour

Available in a range of colours, consult manufacturer for more information.

Standard product features

Technical characteristics:

  • Wear resistance: < AR 1.
  • Bond strength: > B 1.5.
  • Impact resistance: > IR 4.
  • Reaction to fire: Cfl-s1 (not 20 dB noise reduction).
  • Vertical noise reduction ΔLW: 12, 16 or 20 dB.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2015 2 1.3
IFC
IFC2X3 2 1.3
Download now from NBS National BIM Library
Literature
