Application

The system is intended for use on intermediate decks and ramps where a limited crack bridging system is required.

Description

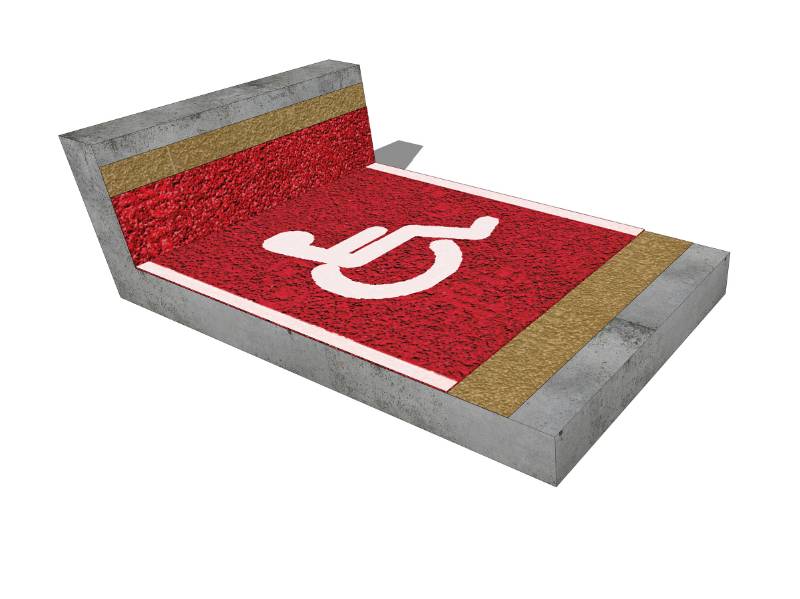

MasterSeal Traffic 2260 is a liquid applied, limited crack bridging car park deck waterproofing system based on advanced polymeric materials. It consists of an epoxy substrate primer and hard wearing epoxy top coat.

System components:

  • Primer: MasterTop P617 or MasterTop P660.
  • Top coat: MasterSeal TC373.

Features and benefits:

  • Easy application to complicated details.
  • Can be driven on after only a few hours.
  • Monolithic – no welds or seams.
  • Excellent wear resistance.
  • Skid resistant.
  • UV and weather resistant.
  • Resistant to fuels, battery acid, de-icing salts, alkaline cleaners.
  • Low dirt retention.
  • Easy to clean and maintain.
  • BBA certified.
  • CE marked.

Applications:

The system is intended for use on intermediate decks and ramps where a limited crack bridging system is required.

Specification data
Product Reference

MasterSeal Traffic 2260

Primer

MasterTop P617

For concrete substrates.

MasterTop P660

For asphalt substrates.

Colour

Available in a range of colours, consult manufacturer for more information.

Standard product features

Technical characteristics:

  • Abrasion resistance: ≤ 3000 mg.
  • Permeability to CO2: Sd > 50.
  • Permeability to water vapour: Class II. Water permeability: < 0.1 kg/(m²xh0.5).
  • Thermal compatibility after freeze-thaw cycling: ≥ 2.0 N/mm².
  • Impact resistance: Class I.
  • Adhesion strength by pull-off test: ≥ 2.0 N/mm².
  • Reaction to fire: Bfl-s1.
  • Skid resistance: Class III.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2015 1 1.3
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
