Balcony outlet

Description

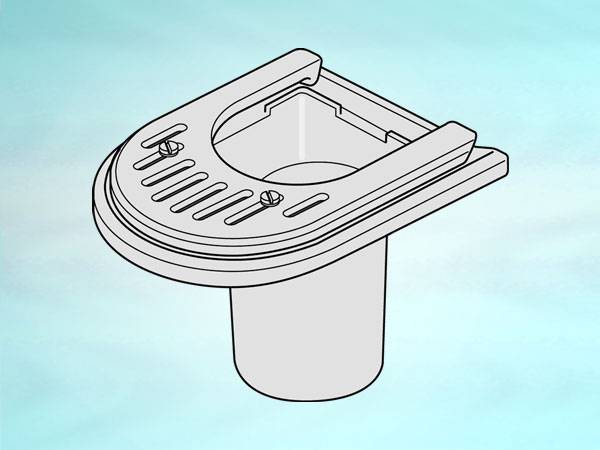

Wade International cast iron Balcony drainage outlets for use on balconies with an asphalt finish. Wade offers balcony outlets with either a full grating or with cut-out for a downpipe (maximum 116 mm diameter pipe).

General information

Material

Cast iron

CAWS

R10/26 Proprietary rainwater outlets

R10/365 Proprietary rainwater outlets

Product range

Balcony and parapet outlets

Specification data

Product Reference

Balcony outlet

Type

WF604 Balcony outlet; full grating

WF704 Balcony outlet; cut-out grating for rainwater pipe

As drawing ___

Contractor's choice

Standard product features

Material:

Cast iron.

Dimensions:

  • Flange: 192 x 240 mm.
  • Outlet size: 100 mm diameter. Outlet spigot conforms to BS 416/ DIN 19522.

Area drained (at head, 35 mm; rainfall rate, 75mm/h):

  • WF604: 208 m².
  • WF704: 105 m².

Load rating class (BS EN 1253):

K3 (suitable for areas without vehicular traffic, such as balconies, terraces and roof gardens).
