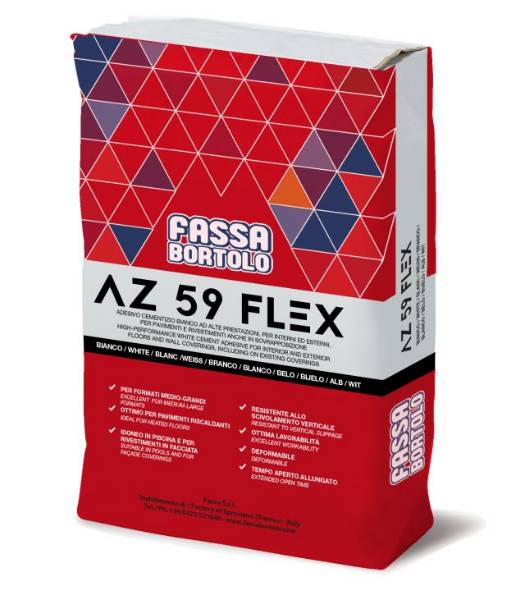

AZ 59 Adhesive
Application

Suitable for interior and exterior walls, floors and ceilings. Can be used for bonding:

  • Ceramic.
  • Mosaic ceramic.
  • Clinker.
  • Terracotta tiles.
  • Cement-based, recomposed and natural stone tiles (that are not sensitive to staining and moisture).

Suitable substrates include:

  • Lime, cement and gypsum base coat plaster.
  • Gauged mortars.
  • Well cured and dry cement.
  • Anhydrite floor screeds.
  • Long-standing concrete floor slabs.
  • Plasterboard.
  • Cementitious waterproof coatings.
  • Existing floors.

Also suitable for use on SA 500, SV 472, SV 472 P, SR 450 or LEGEO MIX screeds, on floor screeds made using FASSACEM binder, on AQUAZIP line waterproofing products and on GYPSOTECH system plasterboards. Also used on External Wall Thermal Insulation Systems. Consult manufacturer for details.

Must be used in its original state, without the addition of other materials.

Consult manufacturer's literature for details on recommended substrate preparation and mixing instructions.

Description

Dry, pre-mixed, one-component adhesive with high elasticity. Composed of white or grey Portland cement, graded sand, synthetic resins and additives.

Features and benefits:

  • Good workability and adhesion.
  • Suitable for use on floors and walls with heating and cooling systems.
  • Extended open-time.
  • Resistant to vertical slippage.
  • Applicable with a notched trowel.
  • Deformable.
  • Suitable for medium/ large tiles, pools and facade coverings.
  • Contributes to LEED® credits.
  • CE marked, and manufactured in accordance with EN 12004.

Applications:

Suitable for interior and exterior walls, floors and ceilings. Can be used for bonding:

  • Ceramic.
  • Mosaic ceramic.
  • Clinker.
  • Terracotta tiles.
  • Cement-based, recomposed and natural stone tiles (that are not sensitive to staining and moisture).

Suitable substrates include:

  • Lime, cement and gypsum base coat plaster.
  • Gauged mortars.
  • Well cured and dry cement.
  • Anhydrite floor screeds.
  • Long-standing concrete floor slabs.
  • Plasterboard.
  • Cementitious waterproof coatings.
  • Existing floors.

Also suitable for use on SA 500, SV 472, SV 472 P, SR 450 or LEGEO MIX screeds, on floor screeds made using FASSACEM binder, on AQUAZIP line waterproofing products and on GYPSOTECH system plasterboards. Also used on External Wall Thermal Insulation Systems. Consult manufacturer for details.

Must be used in its original state, without the addition of other materials.

Consult manufacturer's literature for details on recommended substrate preparation and mixing instructions.

General information

Uniclass 2015

Pr_20_31_02_12 Cementitious adhesivesPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

Specification data - Cementitious adhesives

Product Reference

AZ 59 Adhesive

Colour

Grey

White

Standard product features

Technical characteristics:

  • Form: Powder.
  • Specific weight: When wet: 1650 kg/m³ (approximately); when dry: 1300 kg/m³ (approximately).
  • Maximum thickness: 10 mm.
  • Grading: <0.6 mm.
  • Mixing water required: 27–29%.
  • Maturing time: 5 minutes (approximately).
  • Density (hardened adhesive): 1500 kg/m³ (approximately).
  • pH value: >12.
  • Drying time (at 20°C): 8 hours (approximately).
  • Application temperature: 5–35°C.
  • Tile adjustment time: 40 minutes (approximately).
  • Waiting time before grouting: 1 day (approximately).
  • Ready for normal use: After 7–14 days (depending on the intended use and climatic conditions).
  • Conformity (to EN 12004): C2TE-S1.

- Compliance with EN 12004:

  • Tensile adhesion (to EN 1348; initial, after water immersion, after heating, and after freeze-thaw cycles): ≥1 N/mm².
  • Extended open time (to EN 1348): ≥0.5 N/mm² after 30 minutes.
  • Vertical slippage: ≤0.5 mm.
  • Transverse deformation: ≥2.5 mm and <5 mm.

Literature
Third party certifications
  • Emissions Dans L'air Interieur: Certificate: A+
  • GEV-EMICODE: Certificate: EC1+ very low emission
  • CSTB/QB: Certificate: 285 MC 405 : For grey variant
