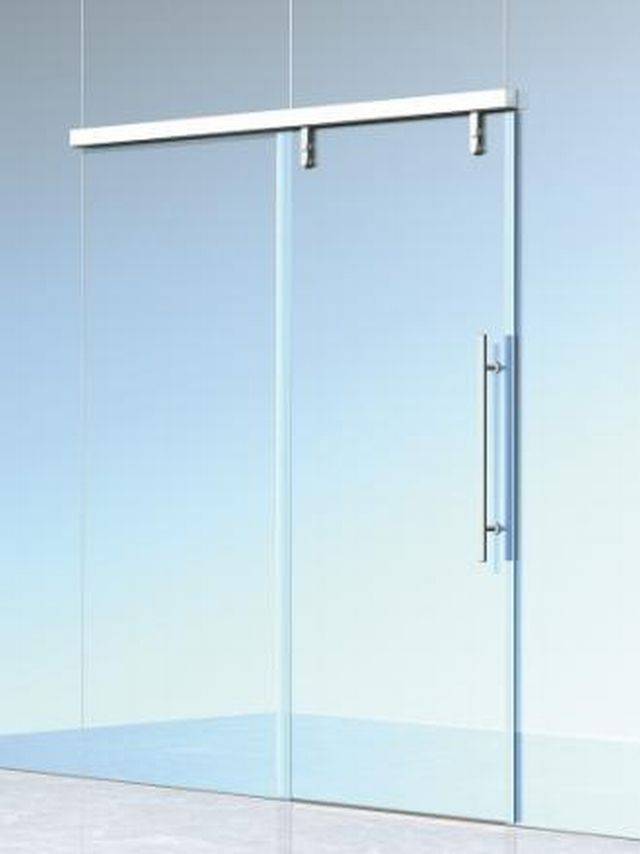

Automatic Sliding Door CS Magneo CS80
Description

The CS 80 MAGNEO is part of the DORMA Contur design suite. It offers an almost noiseless, safe and reliable operation in combination with wear resistance. It can be operated by touch or a by anyone of various remote activation systems.

Consult Dorma for electrical requirements and wiring diagrams.

Features:

  • For door widths of up to 875 mm, 1,000 mm and 1,125 mm – versions 1, 2 or 3 respectively with operator lengths of 1750 mm, 2000 mm and 2250 mm for door widths respectively.
  • For timber, glass and metal doors with door-panel weights of up to 80 kg.
  • For new or refurbishment schemes.
  • Handed.
  • Low energy version complies with DIN 18650 because of its extra sensitive ability to detect obstacles. The full-Energy-Mode requires additional safety detection sensors to comply.
  • Activation systems include pushbutton, radar remote control or motion detector, automatic switch, push and go, timed open period, or manual override.

General information

Features

For door widths of up to 875 mm, 1,000 mm and 1,125 mm – versions 1, 2 or 3 respectively with operator lengths of 1750 mm, 2000 mm and 2250 mm for door widths respectively

For timber, glass and metal doors with door-panel weights of up to 80 kg

For new or refurbishment schemes

Handed

Low energy version complies with DIN 18650 because of its extra sensitive ability to detect obstacles. The full-Energy-Mode requires additional safety detection sensors to comply

Show more

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/320 Door hinges

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

CS Magneo-1

CS Magneo-2

CS Magneo-3

Accessories

As schedule ___

62 mm cover

75 mm cover

Manet fixings for glass door

Fixings for hollow framed door

Fixings for timber door
