AS30/1000 Cladding

Name: AS30/1000 Cladding
Brand: Steadmans
SKU: acu5Mevx62gPdenhQakQdR

NBS BIM object standard

Verified by manufacturer 10 months ago

AS30/ 1000R

Steadmans

A 30 mm deep profile steel cladding sheet for roofs and walls.

Jump to:

+44 (0)1697 478277 Website

Application

Suitable for roof and wall applications.
Suitable for fixing to steel or timber spacer bars or purlins.

Description

A 30 mm deep profile steel cladding sheet for roofs and walls.

Features and benefits:

Available in a variety of steel gauges and finishes.
Profile features 30 mm deep crowns.
Condensation control fleece internal coating available.
Allows rapid completion of the weatherproof envelope.
Typical interval to first repainting (minimum): 20–30 years - varies with exposure, material and colour, consult manufacturer.
Suitable for site cutting using a reciprocating or circular saw.
Durability varies with exposure, material and colour, consult manufacturer.
Purlin centres for 0.5mm & 0.7 mm sheet in typical multispan applications (maximum): 1.8 m. Wider centres may be possible in certain circumstances, consult manufacturer.
Co-ordinating elements available: secondary steelwork, liner sheets, insulation, site assembly profiled rooflights, flashings, guttering, doors, louvre panels, sealants.
External fire performance - Broof t4 to BS EN13501-5:2016
Reaction to Fire - C-s3,d1 to BS EN13501-1:2018 (Plastisol)
Reaction to Fire - A2-s1,d0 to BS EN13501-1:2018 (Polyester)

Fixings:

General: Trough fixing recommended. Stainless steel or carbon steel self drilling screws with press on or integral caps and 16 mm EPDM washers.
To steel: Should pass through the section, leaving minimum 5 mm exposed thread.
To wood: Must achieve a minimum 40 mm fixing embedment.

General information

Color Some colours approximate to BS shades. Select from samples, not from printed charts. Availability of colours varies with weathersheet. Other colours may be available to special order, consult manufacturer for details.	Grey Black Brown Blue Green Ivory Red White Other Show more
Finish	Coated Plastisol PVC(P) 200μm, Polyester SP 25μm, Colorcoat HPS200 Ultra® 200μm, Colorcoat Prisma® 65μm, Colorcoat® LG 200μm, Colorcoat® GP 200μm
Material	Carbon steel
Shape	Trapezoid Square Other
Length	1000 mm 2000 mm 3000 mm 4000 mm 5000 mm 6000 mm 7000 mm 8000 mm 9000 mm 10000 mm 11000 mm 12000 mm Show more
Width Cover width.	1000 mm
Height	30 mm
WarrantyDescription Subject to coil material used. For further information please contact the Steadmans Technical team.	-

Uniclass	Pr_25_71_51_33 Galvanized carbon steel profiled sheetsPrimary
CAWS	H31/10 Metal H31/120 Metal H31/40 Lining

Specification data - Galvanized carbon steel profiled sheets

Standard	-
Material	Carbon steel.
Profile	-
Depth (overall)	30 mm.
Thickness (nominal) Gauge.	0.5 mm. 4.57 kg/m² weight. 0.6 mm. Agri-Steel only. 0.7 mm. 6.49 kg/m² weight.
Form	Trapezoidal.

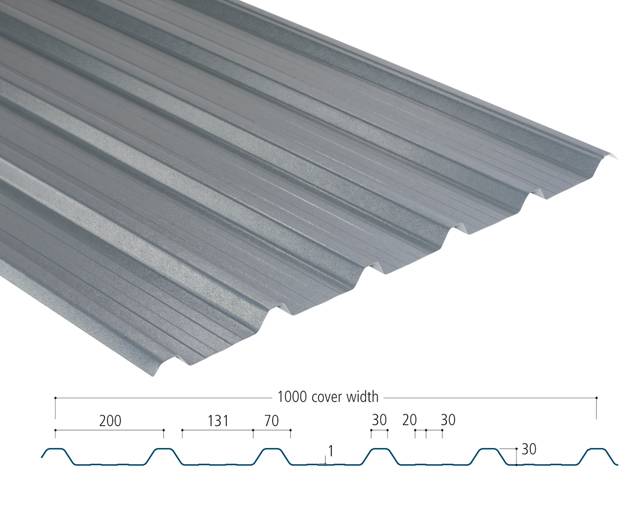

Dimensions	-
Profile height	30 mm.
Valley width	131 mm.
Trough width	70 mm.
Crown width	30 mm.
Pitch	200 mm.
Cover width	1000 mm.
Top surface (side 1)	-
Top surface finish	Plastisol PVC(P) 200μm. Polyester SP 25μm. Colorcoat HPS200 Ultra® 200μm. Colorcoat® LG 200μm. Colorcoat Prisma® 65μm. Colorcoat® GP 200μm.
Colour Some colours approximate to BS shades. Select from samples, not from printed charts. Availability of colours varies with weathersheet. Other colours may be available to special order, consult manufacturer for details. High volume colours at lower cost: Goosewing Grey, Juniper Green, Merlin Grey, Olive Green, Slate Blue.	White (00E55). Goosewing Grey (10A05). Meadowland (12B17). Hamlet (RAL9002). Albatross (18B17). Merlin Grey (18B25). Morland Green (12B21). Honesty (10C31). Wedgewood Blue (18C37). Raven (18B29). Heritage Green (RAL6002). Mushroom (10B19). Ocean Blue (18C39). Anthracite (RAL7016). Olive Green(12B27). Terracotta (04C39). Sargasso (RAL5003). Black (00E53). Juniper Green (12B29). Vandyke Brown (08B29).
Reaction to fire	-
External face	(Plastisol): to BS EN13501-1:2018; C-s3,d1; (Polyester): to BS EN13501-1:2018; A2-s1,d0.

Type	A profiled galvanized steel cladding sheet.
Suitable for	Roof cladding.
SurfaceSpreadOfFlame	To BS EN13501-5:2016; Broof t4.

Environmental information

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	N/A

Digital objects

Platform	Compatible	Version	Certified to
IFC	IFC2X3	2	1.3
Revit	Revit 2015	2	1.3

Download now from NBS National BIM Library

Literature

Single Skin Systems

AS30 Cladding Sheet - Wall

AS30 Cladding Sheet - Roof
