Description

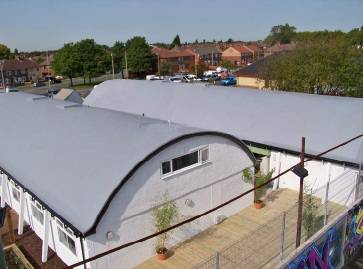

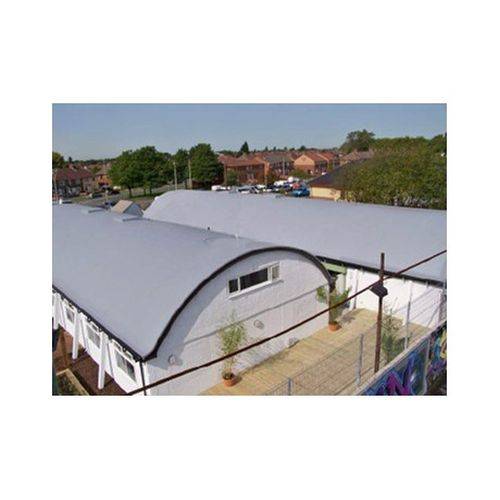

Armourplan SM120 is a 1.2 mm thick polyester-reinforced PVC single ply roofing membrane suitable for use in a wide range of roofing applications on both flat and sloping roofs. The membrane can be installed onto most common substrates and is suitable for both new build and refurbishment installations and for specialist applications such as simulated metal roofs.

Armourplan SM120 can be either mechanically fixed using suitable IKOfix fastenings or adhered and forms a sleek skin on many types of roof application. All overlaps are heat welded using suitable hot-air welding equipment.

Features and Benefits:

  • Good UV resistance and durability.
  • Good mechanical properties and product performance.
  • Efficient and safe installation.
  • Secure seam welding quality.
  • Aesthetically pleasing finish.
  • Complete range of fixings and accessories available.

System components:

To complete the installation of Armourplan SM120, the system includes a wide range of accessories, including detailing and walkway membrane, cover strips, preformed corners and outlets, standing seam profile, pre-coated metal sheet for forming edge details, IKOfix fastening systems and termination bars, insulation and vapour control layers, adhesives, cleaners, sealants and rooflights.

General information
Features

UK manufactured

Material

Plastisized polyvinyl chloride (PVC-P)

Shape

Large rectangle, delivered in roll form

WarrantyDescription

SIG Single Point Responsibility Guarantee

Uniclass 2015
Fabrics for tensile applications (Pr_25_57_90_29)Primary
Specification data - Fabrics for tensile applications
Product Reference

Armourplan SM120

Width

1.06 m

1.50 m

2.12 m

Colour

Anthracite

Mid grey

Standard product features

Length:

20 m.

Material:

PVC-P.

- Reinforcement:

Polyester knitted fabric.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2015 3 1.3
AECOsim
- 1.0
Vectorworks
- 1.0
ARCHICAD
- 1.0
Download now from NBS National BIM Library
