Description

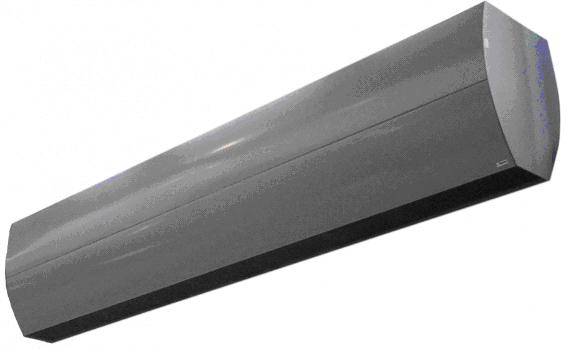

Designer range of architectural air curtains for horizontal or vertical installation.

Features and benefits:

  • Available in brushed or bright Stainless Steel.
  • Electric, Ambient or LPHW versions.
  • Electronic fan & heat control.
  • Fan over-run when used with door sensors.
  • Can be linked together as a system of units.
  • Suitable for mounting up to 3.75 m high.
  • Connections for remote thermostat.
  • Full BMS/ BEMS interface.
  • CE and BEAB approved.

Supplied with a two year warranty.

General information
Uniclass 2015
Air curtains (Pr_70_60_36_02)Primary
Specification data - Air curtains
Product Reference

ARC

Type

ARC10E

1150 x 450 x 360 mm (l x h x d). Air volume: 2500 m³/h (maximum). 10 kW heat output. Noise level: ≥ 51 dBA.

ARC15E

1650 x 450 x 360 mm (l x h x d). Air volume: 3000 m³/h (maximum). 18 kW heat output. Noise level: ≥ 51 dBA.

ARC20E

2200 x 450 x 360 mm (l x h x d). Air volume: 5000 m³/h (maximum). 20 kW heat output. Noise level: ≥ 53 dBA.

Colour/ Finish

Brushed stainless steel

Mirror polished

Available special order.

RAL

Insert requirements.

Standard product features

Technical characteristics:

  • Airstream width: ARC10E: 1 m, ARC15E: 1.5 m or ARC20E: 2 m.
  • Mounting height/ air throw (maximum): 3 m.
  • Air volume (low-high): 6–9 m/s.
  • Blowers: Two tangential blowers (150 mm impellers). ARC20E has four tangential blowers.
  • Voltage: 400 V ~ 3PN.
  • Supply rating (Amps per phase): Varies depending on model, consult technical literature for details.
  • Safety: Two manual reset cut-outs.

Control:

- Type:

Hard wired double gang sized control panel for recessed or surface mounting.

- System:

Electronic low voltage. Supplied with wall controls connected via CAT5 patch cables with RJ45 terminations (data signals only). Master/ slave (daisy-chain) connection for single control over a maximum of ten units as one.

- Functions:

Twin fan speeds, twin heat settings, fan run-on circuit (3 minutes), BMS/ BEMS links, door sensor connections, thermostat connections, built-in tamperproof thermostat with control wheel. Auxiliary input for interlocks.

- Type:

Hard wired double gang sized control panel for recessed or surface mounting.

Grille size (w x h, open area):

- Outlet:

  • ARC10E: 1070 x 110 mm.
  • ARC15E: 1570 x 110 mm.
  • ARC20E: 2040 x 10 mm.

- Inlet:

  • ARC10E: 1070 x 210 mm.
  • ARC15E: 1570 x 210 mm.
  • ARC20E: 2040 x 210 mm.
