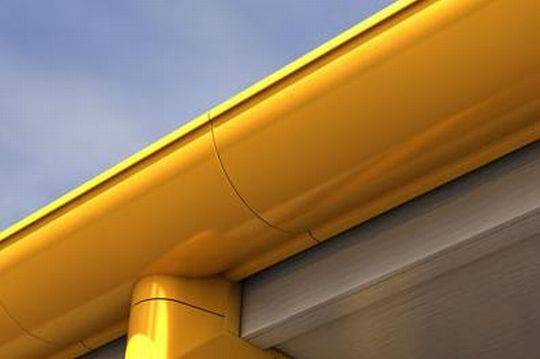

Aqualine 120 mm Half Round gutter
Description

Aqualine is an extruded aluminium gutter system in five alternative styles, each available in a wide range of profile sizes. Aqualine contributes strongly, with its sleek and sophisticated appearance, to the overall architectural design of a building. Secret fix bracketry allows a smooth, uniform cross section along the whole length of the gutter, giving a completely clean external appearance. All weather 'dry' jointing, and full provision for thermal movement between gutter parts and the structure to which they are fixed ensures a precision installation, securely positioned and aligned.

Aqualine Half Round gutters have a classic half round profile with clean lines that fits well into virtually any design aesthetic. Gutters are available in three sizes.

Starter pack:

All gutter assemblies are supplied with union clips and brackets. When ordering gutter assemblies, an Aqualine starter pack (containing fixing tool, slide locks, seals, packing shims, superscrews and lubricant) must also be ordered as a separate item.

General information

Material

Based on aluminium extrusions to BS 1474, material 6063, T6. Components interlock, snap or slide together with EPDM seals at the joints

Uniclass 2015

Pr_65_50_35_06 Aluminium eaves guttersPrimary

CAWS

R10/11 Aluminium gutters

R10/311 Aluminium gutters

Specification data - Aluminium eaves gutters

Product Reference

EHR12 Aqualine 120 mm Half Round gutter

Colour/ Finish

Plain mill finish

RAL 1011m Brown Beige

Polyester powder-coated.

RAL 1013m Pearl White

Polyester powder-coated.

RAL 1021m Cadmium Yellow

Polyester powder-coated.

RAL 2002m Vermilion

Polyester powder-coated.

RAL 3003m Ruby Red

Polyester powder-coated.

RAL 3005m Wine Red

Polyester powder-coated.

RAL 5003m Sapphire Blue

Polyester powder-coated.

RAL 5010m Flower Blue

Polyester powder-coated.

RAL 6005m Moss Green

Polyester powder-coated.

RAL 6018m Yellow Green

Polyester powder-coated.

RAL 7005m Mouse Grey

Polyester powder-coated.

RAL 7006m Beige Grey

Polyester powder-coated.

RAL 7012m Basalt Grey

Polyester powder-coated; also available in a textured finish.

RAL 7015m Slate Grey

Polyester powder-coated; also available in a textured finish.

RAL 7016m Anthracite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7024m Graphite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7036m Platinum Grey

Polyester powder-coated.

RAL 7037m Dusty Grey

Polyester powder-coated.

RAL 7038m Agate Grey

Polyester powder-coated; also available in a textured finish.

RAL 8017m Chocolate Brown

Polyester powder-coated.

RAL 8019m Grey brown

Polyester powder-coated.

RAL 9006m Metallic Silver

Polyester powder-coated.

RAL 9006g Metallic Silver (80% Gloss)

Polyester powder-coated.

RAL 9016m White

Polyester powder-coated; also available in a textured finish.

RAL 9017m Black (60% Gloss)

Textured Black

Bespoke, RAL or BS

Polyester powder-coated. Consult literature for details and insert requirements.

Fittings

-

Brackets and clips

EHR12/FB fascia brackets

EHR12/UCA union clips

As drawing ___

Contractor's choice

Angles

EHR12/EA13A 135° external angle

EHR12/EA90A 90° external angle

EHR12/IA13A 135° internal angle

EHR12/IA90A 90° internal angle

As drawing ___

Contractor's choice

Outlets

EHR12/RO25A standard running outlet, 63 mm diameter

EHR12/RO30A standard running outlet, 75 mm diameter

EHR12/SO33A standard running outlet, 75 mm square

EHR12/SO43A standard running outlet, 75 x 100 mm rectangular

As drawing ___

Contractor's choice

Stop ends

EHR12/SELHA left hand stop end

EHR12/SERHA right hand stop end

As drawing ___

Contractor's choice

Aqualine starter pack

Required

Contractor's choice

Standard product features

Material:

Based on aluminium extrusions to BS 1474, material 6063, T6. Components interlock, snap or slide together with EPDM seals at the joints.

Dimensions:

  • Size: 120 x 60 mm.
  • Length: 3000 mm.

Product Options

Colour/ Finish:

Polyester powder coated to BS EN 12206-1: 2004. The standard range of colours is produced with a 30% gloss finish unless otherwise stated. Coating to have BBA certificate.
