ANS Living Wall System - Steel Frame
Description

Suitable for any application where there is a steel frame to fix back to.

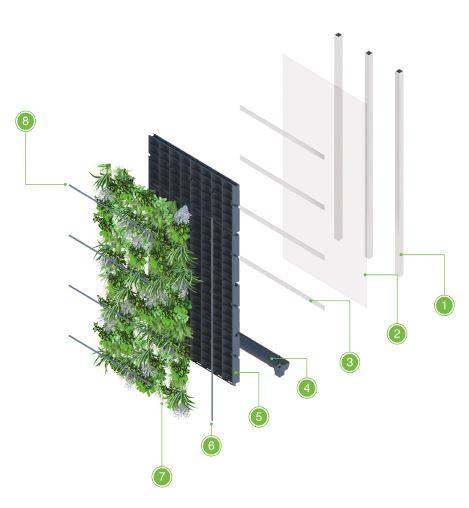

System build up:

  • Existing steel frame - maximum 600mm horizontal centres
  • Waterproof membrane
  • 48 x 12 mm ANS Fixing Rail
  • Osma Squareline Gutter or client specified
  • ANS Living Wall Module - 500 x 250 x 100 mm
  • 16 mm vertical irrigation pipe
  • Planting
  • 6 mm inline emitter pressure regulated irrigation pipe

General information

Color

Black

Features

Waterproof

UV Resistant

Finish

Smooth

Material

Unplasticized polyvinyl chloride (PVC-U)

PVC-U

Shape

Rectangular

Linear

Size

500 x 250 x 100 mm

107 x 51 mm

WarrantyDescription

10 year guarantee on the living wall module, 12 months guarantee for everything else

Uniclass 2015

Ss_45_40_95_54 Modular unit vertical planting systemsPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
