Aluminium Stair Nosings with Concealed Fixings, 5 mm Gauge and Ramp Tread Profiles
A range of aluminium stair nosings with ribbed and /or castellated treads and concealed fixings.

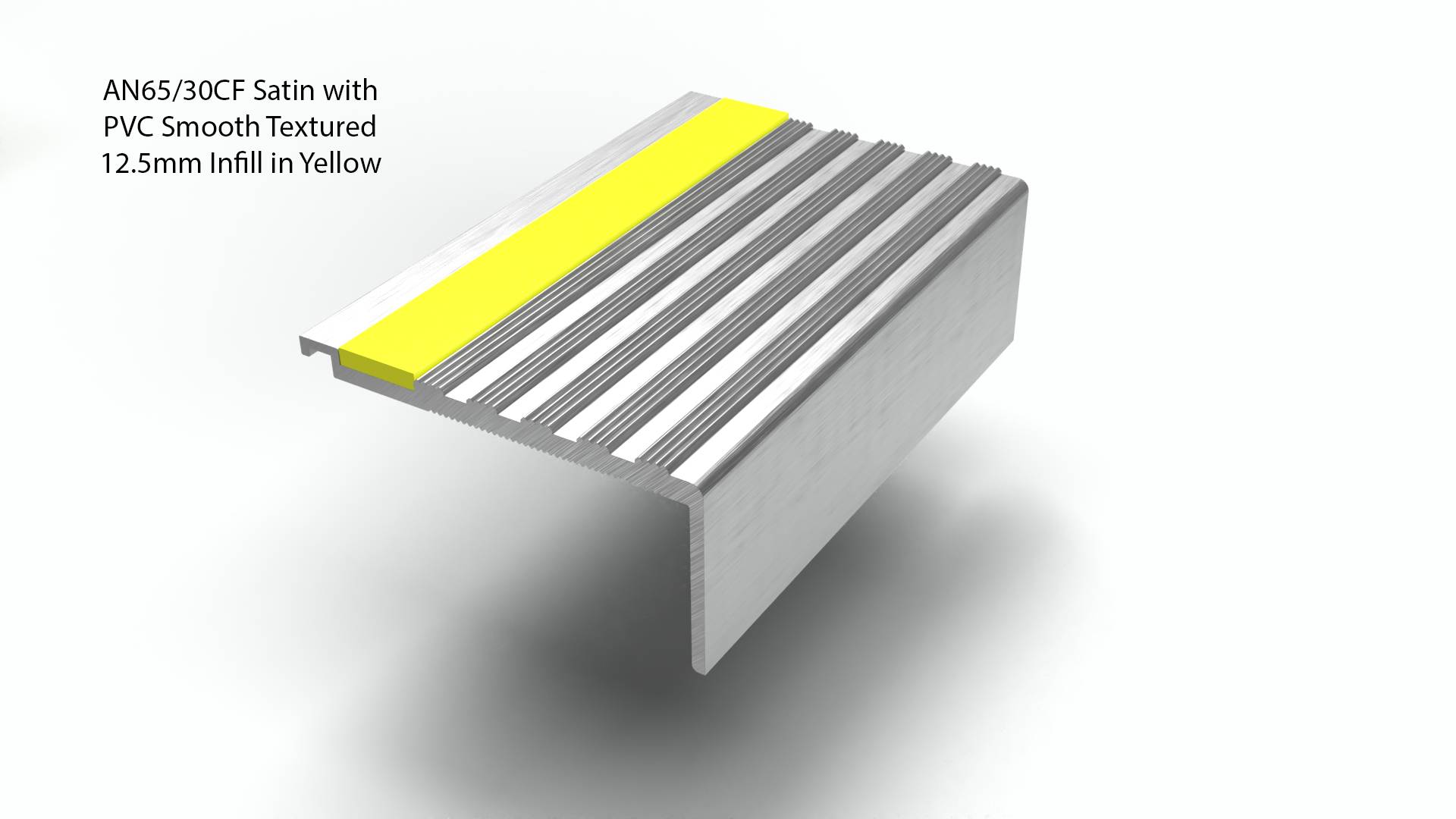

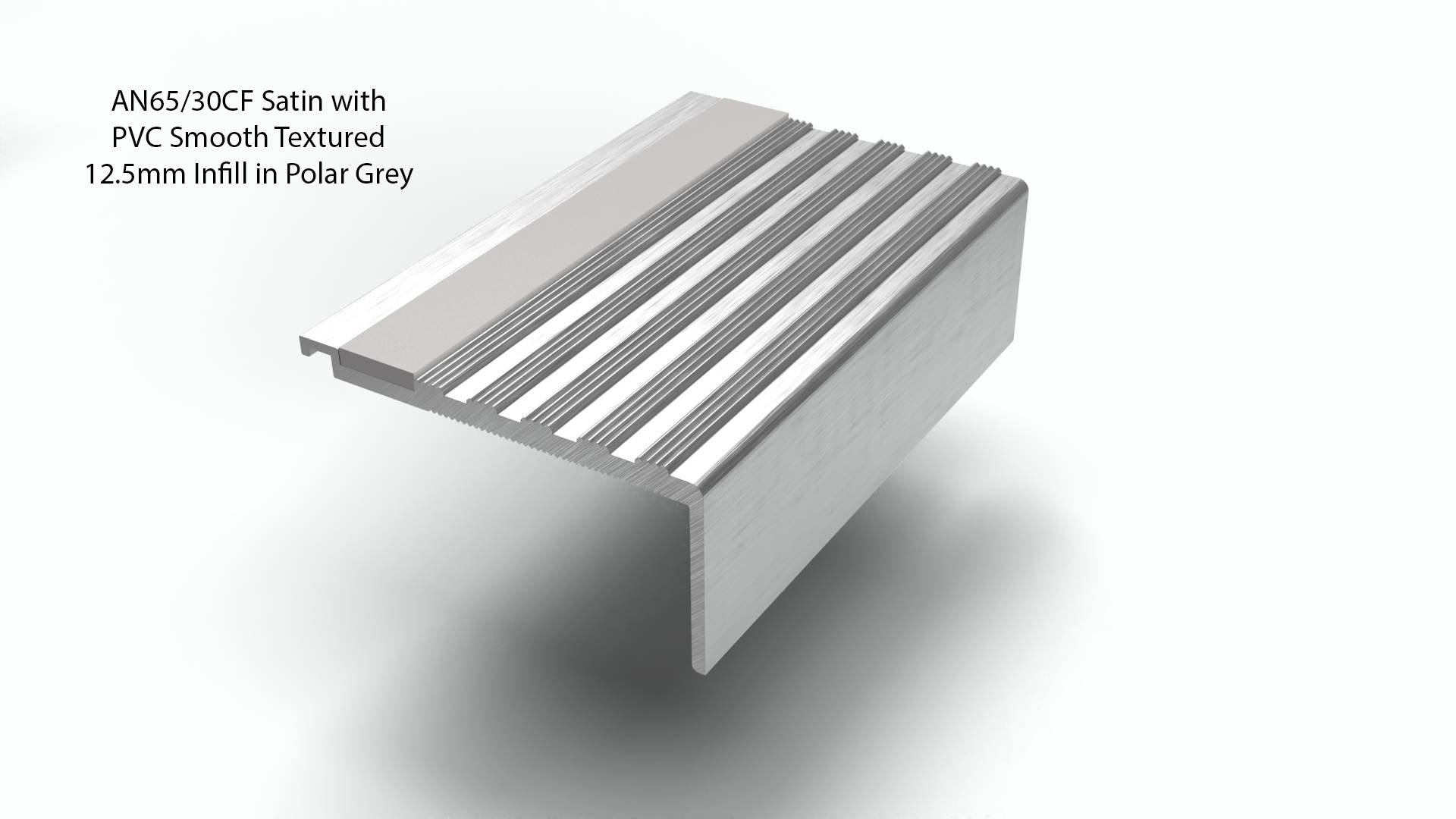

- AN65/30CF: For use when butting up to floorings on the step.
- AN65/30RCF: For use when butting up to floorings on rake back steps.
- AN65/55CF: For use when butting up to floorings on the step.
- AN65/55RCF: For use when butting up to floorings on rake back steps.
- AN65/30CF: For use when butting up to floorings on the step.
- AN65/30RCF: For use when butting up to floorings on rake back steps.
A range of aluminium stair nosings with ribbed and /or castellated treads and concealed fixings.
Features and benefits:
- Infill also conceals fixings.
- Can be cut to length up to the maximum stated.
- Stair nosings can be supplied drilled countersunk or undrilled (to be specified when ordering).
- A wide range of stair nosings are available, specified separately.
- 5 or 4.25 mm gauge.
Application:
- AN65/30CF: For use when butting up to floorings on the step.
- AN65/30RCF: For use when butting up to floorings on rake back steps.
- AN65/55CF: For use when butting up to floorings on the step.
- AN65/55RCF: For use when butting up to floorings on rake back steps.
- AN65/30CF: For use when butting up to floorings on the step.
- AN65/30RCF: For use when butting up to floorings on rake back steps.
Finish | Mill, satin or polished |
Features | Interior use; range of profiles |
Material | Aluminium alloy 6063 T6 |
Shape | Stair nosing (range of profiles) |
WarrantyDescription | Manufacturer's standard |
Uniclass 2015 | |
CAWS | L30/30 Proprietary L30/310 Proprietary L30/590 Applied stair nosings M50/75 Stair nosings and trims M50/750 Stair nosings and trims |
Product Reference | AN65/30CFProfile: Castellated and ribbed tread/ square front; Rise x going: 30 x 65 mm; Maximum length: 3200 mm. AN65/30RCFProfile: Castellated and ribbed tread/ raked front (83°); Rise x going: 30 x 65 mm; Maximum length: 2500 mm. AN65/55CFProfile: Castellated and ribbed tread/ square front; Rise x going: 55 x 65 mm; Maximum length: 3200 mm. AN65/55RCFProfile: Castellated and ribbed tread/ raked front (83°); Rise x going: 55 x 65 mm; Maximum length: 2500 mm. AN70/55CFProfile: Castellated and ribbed tread/ square front/ sloped back; Rise x going: 55 x 69 mm; Maximum length: 3200 mm, Gauge: 4.25 mm. AN70/55RCFProfile: Castellated and ribbed tread/ raked front (83°)/ sloped back; Rise x going: 55 x 69 mm; Maximum length: 2500 mm, Gauge: 4.25 mm. AN70/30CFProfile: Castellated and ribbed tread/ square front/ sloped back; Rise x going: 30 x 69 mm; Maximum length: 3200 mm, Gauge: 4.25 mm. AN70/30RCFProfile: Castellated and ribbed tread/ raked front (83°)/ sloped back; Rise x going: 55 x 69 mm; Maximum length: 2500 mm, Gauge: 4.25 mm. |
Profile | Manufacturer's standardDependent on product reference specified. |
Base section | - |
Material | Aluminium alloy 6063 T6 |
Finish | MillSatinPolished |
Size | - |
Rise x going | Manufacturer's standardDependent on product reference specified. |
Gauge | 5 or 4.25 mmDependent on product reference specified. |
Inserts | - |
Material | Aluminium, castellatedInterior use only, for hidden fixings. Insert to suit variant specified. Supplied with self-adhesive tape, pre-applied to underside. Profile dependent on variant specified. PVC, castellatedInterior use only. Pendulum test value (PTV): Dry: 85; wet: 76. Profile dependent on variant specified. |
Colour | Aluminium, to match base sectionAluminium inserts only. Aluminium, mill finishAluminium inserts only. Aluminium, satin finishAluminium inserts only. Aluminium, polished finishAluminium inserts only. BlackPVC inserts only. GranitePVC inserts only. PeatPVC inserts only. SprucePVC inserts only. ClaretPVC inserts only. WhitePVC inserts only. RegencyPVC inserts only. RusticPVC inserts only. JadePVC inserts only. Porth StonePVC inserts only. Light GreyPVC inserts only. Mid BluePVC inserts only. FawnPVC inserts only. YellowPVC inserts only. Polar GreyPVC inserts only. FlintPVC inserts only. NimbusPVC inserts only. IvoryPVC inserts only. PoppyPVC inserts only. |
Accessories | NoneANEXTTread extension, 63.6 x 5 mm. ANE nap detailRecommended for broadloom installations. 36 mm-wide; see manufacturer's literature for further details. ANRE25 ramp detailAllows the nosing to be used with resilient floor coverings. 30 x 5 mm; ramp width: 25 mm. |
Installation | To be supplied pre-drilled and countersunk in the channel for concealed fixing and on-site retro fitting of the infillTo be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive |
Standard product features | Colour: Aluminium. Features: Interior use; range of profiles. Finish: Mill, satin or polished. Material: Aluminium alloy 6063 T6. Shape: Stair nosing (range of profiles). Size: Various - see product reference for details. Warranty description: Manufacturer's standard. |
