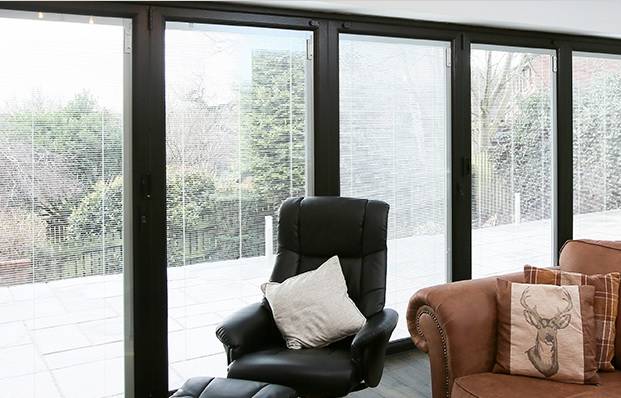

Aluminium Bi-fold Door

Verified by manufacturer over a year ago

Liniar

Aluminium bi-fold door.

Jump to:
+44 (0)1332 883900 Website

Description

Aluminium bi-fold door, available outward or inward opening, internally beaded, and in a range of colours.

Features and benefits:

  • Flush external finish, creating a sleek appearance.
  • Thermal efficiency due to the polyamide lock, resulting in U-values as low as 1.2 W/m²k.
  • Strength and high security.
  • Can be foiled to match the window system.
  • Folding keys reduce the possibility of damage to doors if left in situ.
  • Weather-tested low thresholds to BS 6375.
  • All finishes come with a ten-year guarantee.

Accreditations:

  • Secured by Design-approved.
  • PAS 24-compliant.
  • ISO 9001 Quality Assured.

General information

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/530 Sliding folding external doors

Specification data - Sliding door and partition sets

Product Reference

Aluminium Bi-fold Door

Opening

Inward

Outward

Standard.

Configuration

See 'Options' and insert requirements.

Size

-

Outer frame width

Up to 6500 mm. Consult manufacturer and insert requirements.

Sash height

Up to 2500 mm. Consult manufacturer and insert requirements.

Opening width

600–6500 mm.

Sills

85 mm, LSL085

150 mm, ASL150

165 mm, LCL165

180 mm, LSL180

Threshold

23.5, aluminium

Low threshold.

23.5 mm, Part M aluminium

Low threshold and half tray.

26.5 mm, Part M aluminium

Low threshold and full tray.

62 mm, aluminium

Frame only.

92 mm, aluminium

Frame and sill.

Glazing

28 mm double glazing

Thermal transmittance (U-value): 1.5 W/m²k.

36 mm triple glazing

Thermal transmittance (U-value): 1.2 W/m²k.

40 mm triple glazing

Thermal transmittance (U-value): 1.2 W/m²k.

Colour/ Finish

7016 grey

RAL powder-coated.

7016 grey foil

Black

RAL powder-coated.

Black foil

Chartwell green foil

Cream foil

Golden oak foil

Irish oak foil

Rosewood foil

White

RAL powder-coated.

White foil

Beading

AGB001

Square bead.

AGB002

Sculptured bead.

LCW041

Chamfered bead.

LPD083

40 mm sculptured bead.

LSW041

Sculptured bead.

LSW042

36 mm bead.

Gaskets

ABF194

Sash-to-sash gasket.

ABF196

Threshold gasket.

AGA001

Glazing gasket.

AGA002

Wedge gasket.

AGA192

No. 1, corner gasket.

AGA292

No. 2, corner gasket.

AGA392

No. 3, corner gasket.

AGA492

No. 4, corner gasket.

AGA592

No. 5, corner gasket.

AGA692

No. 6, corner gasket.

AGA792

No. 7, corner gasket.

LBF197

Q-Lon.

LGA412

Button strip.

LPD483

Meeting style brush plate.

MBF194

Closing jamb seal.

Cylinders

MBF034N

45/ 45 Anti-bump nickel, including three folding keys.

MBF034N3S

45/ 45 Anti-bump nickel (three-star cylinder).

MBF035N

2 x Key alike, 45/ 45 anti-bump nickel, including three folding keys.

MBF035N3S

2 x Key alike, 45/ 45 anti-bump nickel (three-star cylinder).

Locks

ABF045L

Large non-locking espagnolette.

ABF045S

Small non-locking espagnolette.

ABF045LL

Large non-locking espagnolette.

ABF045LS

Small non-locking espagnolette.

ABF047L

Large main door lock.

ABF047S

Small main door lock.

Ironmongery/ Hardware

ABF050

Double roller.

ABF072

'C' handle.

LBF041

Door magnets.

LBF081

Slim door handle.

LBF082

Extra-slim door handle.

MBF042

Escutcheon/ lock plate.

MBF060

Single roller.

MBF080

Door handle.

Accessories

A range of accessories is available; see 'Options' below and insert requirements.

Standard product features

Transom:

87 mm, LSW026.

Midrail:

117 mm, LSW029.

Frame profile:

Sculptured.

Bead:

Internal.

Product Options

Configuration:

Example configuration: 3 (total number of doors) – 2 (greatest number of doors folding either left or right) – 1 (number of doors opening in opposite direction).

  • 2-2-0 left. Subject to a minimum sash size of 700 mm.
  • 2-2-0 right. Subject to a minimum sash size of 700 mm.
  • 3-2-1 left.
  • 3-2-1 right.
  • 3-3-0 left.
  • 3-3-0 right.
  • 4-2-2. Subject to a minimum sash size of 700 mm.
  • 4-3-1 left.
  • 4-3-1 right.
  • 4-4-0 left. Subject to a minimum sash size of 700 mm.
  • 4-4-0 right. Subject to a minimum sash size of 700 mm.
  • 5-4-1 left.
  • 5-4-1 right.
  • 6-3-3.
  • 6-5-1 left.
  • 6-5-1 right.
  • 6-6-0 left. Subject to a minimum sash size of 700 mm.
  • 6-6-0 right. Subject to a minimum sash size of 700 mm.
  • 7-4-3 left.
  • 7-4-3 right.
  • 7-5-2 left.
  • 7-5-2 right.
  • 7-6-1 left.
  • 7-6-1 right.
  • 7-7-0 left.
  • 7-7-0 right.

Colour/ Finish:

Other colours are available as a special order; consult manufacturer for information.

Accessories:

  • AAN001 – Cleat adhesive.
  • AAN002 – Small gap sealant.
  • AAN003 – Glue cleaner.
  • AAN004 – Allen key T-bar, 2.5 mm.
  • ABF191 – O. Frame cradle.
  • ABF192 – Sash gripper trim.
  • ABF292 – Keep carrier.
  • ABF391 – L. Threshold moulding.
  • ABF393 – Meeting style end cap.
  • ACT001C – O. Frame cleat, crimp type.
  • ACT002C – Sash cleat, crimp type.
  • ACT001M – O. frame cleat, mech type.
  • ACT002M – Sash cleat, mech type.
  • ALPT025L – 25 mm protective tape.
  • ALPT030L – 30 mm protective tape.
  • ALPT040L – 40 mm protective tape.
  • ALPT050L – 50 mm protective tape.
  • ALPT070L – 70 mm protective tape.
  • ALPT080L – 80 mm protective tape.
  • ALPT120L – 120 mm protective tape.
  • LBF191 – Meeting style.
  • LEC 150 – 150 mm, 165 mm and 180 mm sill end cap.
  • LMO275 – Low threshold tray end cap.
  • LMO301 – Glazing platform.
  • LMO311, 36 mm – Glazing platform
  • LM0311, 40 mm – Glaring platform.
  • MBF191 – Channel capping.
  • MBF392 – Corner locator.

Similar products from Liniar

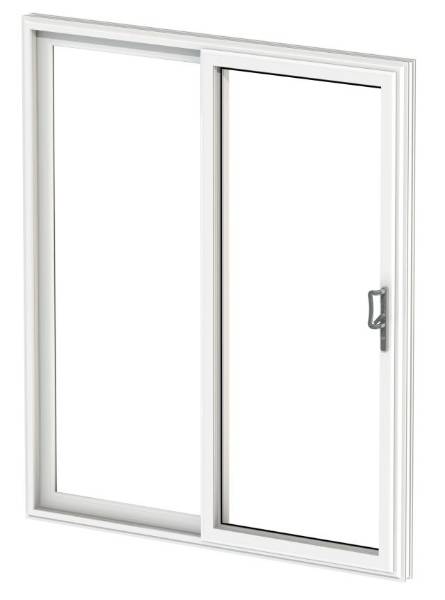

ModLok™ PVC-U Patio Door EnergyPlus 70 mm
