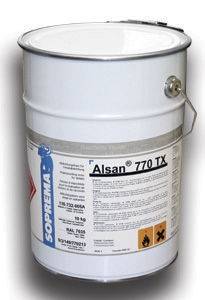

Alsan 770

Alsan 770

Soprema UK Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Rapid curing and highly flexible PMMA (polymethyl methacrylate) surface waterproofing resin for horizontal areas.

Jump to:
+44 (0)330 058 0668 www.soprema.co.uk

Application

To be applied only to prepared substrates.

  • It is applied along with Alsan Fleece P reinforcement for waterproofing large areas, and for the waterproofing of joints on water impermeable concrete (flat roofs, car parks/ parking decks, balconies, terraces, walkways etc).
  • For accessible areas, the Alsan 770 waterproofing membrane is applied in combination with surfacing finishing products from the Alsan range or other finishes (e.g. tiles).

Description

A high‐performance, PMMA (polymethyl methacrylate) based waterproofing resin with low‐temperature flexibility. The resin is used in conjunction with reinforcement fleece, to create a seamless, durable and reliable waterproofing membrane. It can also be used to waterproof movement joints. Can be used with Alsan 070 catalyst.

Features and benefits:

  • Highly flexible and crack‐bridging even at extreme sub‐zero temperatures.
  • Permanently weather‐resistant.
  • UV, hydrolysis and alkali-resistant.
  • Watertight and fully bonded to the substrate, therefore no water ingress.
  • Easy and fast application via sheepskin roller or brush.
  • The most complex roof penetrations can be securely incorporated into the seamless waterproofing system.
  • Fast‐curing.
  • Can be applied to almost all substrates, including substrates of variable materials (in combination with either Aslan 170 or Aslan 172 primer).
  • Solvent‐free.

Applications:

To be applied only to prepared substrates.

  • It is applied along with Alsan Fleece P reinforcement for waterproofing large areas, and for the waterproofing of joints on water impermeable concrete (flat roofs, car parks/ parking decks, balconies, terraces, walkways etc).
  • For accessible areas, the Alsan 770 waterproofing membrane is applied in combination with surfacing finishing products from the Alsan range or other finishes (e.g. tiles).

General information

Material

Two component PMMA (polymethyl methacrylate) based resin

Uniclass 2015

Pr_35_31_68_01 Acrylic-based waterproof coatingsPrimary

CAWS

J31/10 Warm deck roof coating

J31/110 Cold deck roof coating

J31/120 Warm deck roof coating

J31/130 Inverted roof coating

J31/353 Waterproof coating

J31/5 Cold deck roof coating

Product range

Liquid applied waterproofing

Specification data - Acrylic-based waterproof coatings

Product Reference

Alsan 770

Colour

Basalt grey - RAL 7012

Graphite black - RAL 9011

Standard product features

Material:

Two component PMMA (polymethyl methacrylate) based resin.

Consumption:

  • As a waterproofing membrane underneath finishing: 2.5–3 kg/m².
  • As a waterproofing membrane: 4 kg/m².

Technical properties:

  • Minimum layer thickness: 2 mm.
  • Application temperature (air): -5 to +35°C.
  • Pot life: 15 minutes (approximate).
  • Rain proof: 30 minutes (approximate).
  • Can be walked on/ over coated: One hour (approximate).
  • Curing time: Three hours (approximate).
  • Resistance to wind loads (on concrete): ≥50 kPa.
  • Working life: W3.
  • Climatic zone: S.
  • Imposed loads: P4.
  • Roof slope: S1 - S4.
  • Surface temperature: TL4 – TH4.
  • Water vapour diffusion: μ ≈ 5107; Sd value (2 mm Alsan 770 + Alsan Fleece P): 10.21 m.
  • Fire rating (to BS EN 13501-5): Broof (t1).
  • Reaction to fire: Class E.

Product Options

Colour:

Other colours are available on request. Consult manufacturer for information.

Literature

ALSAN PMMA Liquid Applied Waterproofing Systems

ALSAN PMMA Liquid Applied Waterproofing Systems

Third party certifications

  • Certificate: 17/5468
  • ETA: Certificate: 17/5468
  • ETA: Certificate: 12/510
  • ETAG: Certificate: 005 : Awarded in 2013
