Description

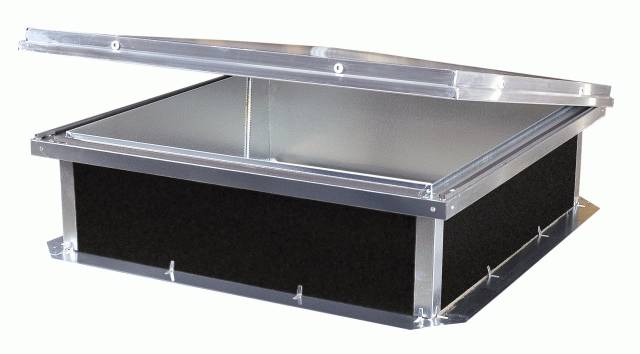

Opening rooflight for natural ventilation, with integral, insulated, galvanized steel kerb, or adapter plate to sit on concrete or timber builder's kerb.

Fixing:

Kerb or adapter plate should be fastened to supporting structure with screws at maximum 300 mm centres.

General information
Size

As drawings

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Specification data - Framed rooflights
Product Reference

AIRDOME

Size

As drawings

Glazing

Double dome polycarbonate

16 mm Special k Multi wall structured polycarbonate

Twin wall structured polycarbonate

Insulated aluminium cover

Kerb -
Type

Integral insulated galvanized steel kerb

Adapter plate for builder's kerb

Finish

Galvanized

Galvanized and painted - RAL 9002 'Off white'

Galvanized and painted - RAL ___

Insulation

Required

Not required

Foot length

___ mm

Not applicable

Controls -
Type

Manual

Electric

Handle length (mm)

Not applicable

___ mm

Accessories

None

Anti-fall/ -intruder grill

Anti-fall/ -intruder grill - painted

Rain detector

Rain and wind detector

Standard product features

Rooflight frame:

Aluminium, milled finish.

Product Options

Rooflight size:

  • Integral kerb: Give internal dimensions of opening.
  • Adaptor plate: Give external dimensions of kerb.

Glazing:

  • Double dome polycarbonate.
  • 16 mm Special k Multi wall structured polycarbonate.
  • Twin wall structured polycarbonate, U = 3.1 W/m²K.
  • Insulated aluminium cover.

Kerb:

Galvanized, or galvanized and painted. Standard paint colour is RAL 9002 'Off white'. Consult Axter for availability of alternative colours and to obtain samples.

Adapter plate:

  • Painted.
  • Insulation optional.
  • Length of foot: 50-180 mm, or longer - on request.

Controls:

  • Manual, with worm screw. Standard winding handles lengths are: 1.5 m, 2.0 m, 2.5 m, 3.0 m and 3.5 m.
  • Electric; 220/240 volt supply; optional 3 position interrupter.

Accessories:

  • Anti-fall/ -intruder grill to resist 1200 joules - available painted or unpainted.
  • Weather detectors.
