This product is no longer available

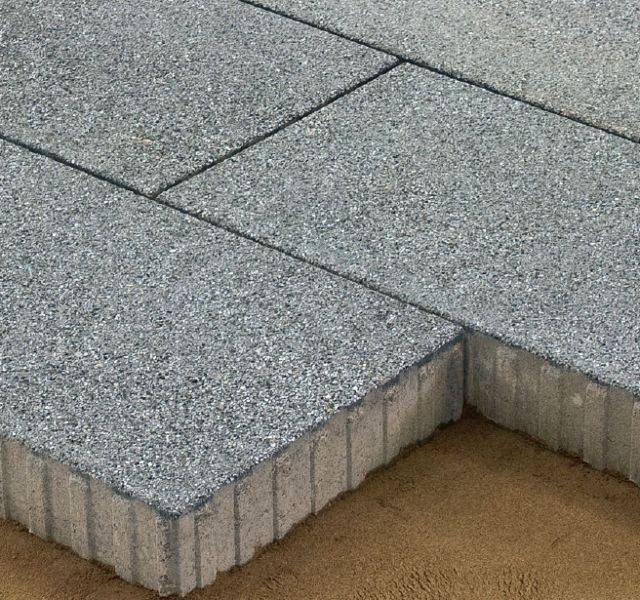

AirClean® Chieftain VS5
Application

Suitable for all pedestrian areas. Some of these specific sizes are suitable for occasional vehicular overrun. The latest British Standard should be consulted to ensure the correct sub-base design is achieved prior to installation.

Description

Large format concrete paving flag manufactured to BS EN 1339.

Features and benefits:

  • Can improve air quality by reducing Nitrogen Dioxide (NO2).
  • Shift protection on five sides of the block provides maximum stability.
  • Hard-wearing granite surface.
  • Vibrant long-lasting colours.
  • Significantly reduced efflorescence.
  • Manufactured with sparkling natural granite (>53%) aggregates.
  • BREEAM rating: A. ('A+' rating can be achieved by using a recycled sub-base).

Applications:

Suitable for all pedestrian areas. Some of these specific sizes are suitable for occasional vehicular overrun. The latest British Standard should be consulted to ensure the correct sub-base design is achieved prior to installation.

General information
Size

800 x 400 x 100 mm

800 x 400 x 120 mm

1200 x 400 x 120 mm

Uniclass 2015
Pr_25_93_60_16 Concrete flagsPrimary
CAWS

J21/465 Precast concrete paving slabs

J21/85 Precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/80 Precast concrete paving slabs

J41/465 Precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/465 Precast concrete paving slabs

Q25/31 Concrete flag paving

Q25/315 Concrete flags

Specification data - Concrete flags
Product Reference

AirClean® Chieftain VS5

Colour

Mid Grey

Silver

Size

800 x 400 x 100 mm

800 x 400 x 120 mm

1200 x 400 x 120 mm

Standard product features

Surface layer:

Hard-wearing surface layer with a minimum layer of 4 mm and >350 kg/m³ cement.

Surface finish:

Textured granite aggregate.

Granite content:

Not less than 53% of granite aggregate in surface layer.

Efflorescence:

Minimum 12-hour vapour curing to significantly reduce the possibility of efflorescence.

Slip/ skid resistance:

Extremely low (>75 USRV).

Strength:

>3.5 MPa.

Spacer:

Unique VS5 spacer which adds shift protection on five sides of the block.

Sustainability:

  • Energy used: 100% renewable energy.
  • Water used: 100% water used from rainwater harvesting system.
  • Recyclable: 100% of this product can be recycled.
  • Recycled content: not less than 6%.
  • Manufacturing location: produced in the UK with locally sourced materials.

AirClean®:

Up to 16% NO2 reduction (average 4% -16% reduction).
