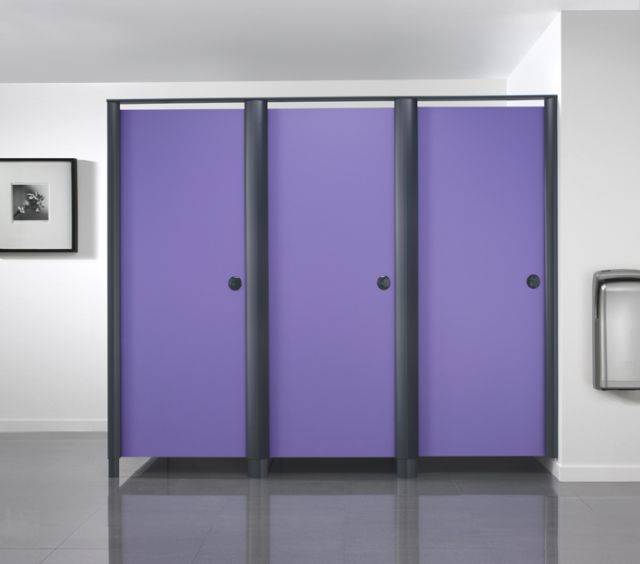

Aero Powder Coat SGL Panel Cubicle

Description

Aero Powder Coat SGL full framed panel cubicles comprise of high density solid grade laminate, 1400 kg/m³, impervious to water, suitable for the most demanding environments where strength and/ or water resistance is needed. Aero is stylish and durable, the frame features smooth curved aluminium pilasters mounted into moulded shoes and a continuous headrail. Available with low floor clearance to doors.

Panels are manufactured to specific site dimensions and CAD drawings will be supplied with each delivery.

Components:

  • Solid grade laminate panels, supplied with polished black radiused edges.
  • Frame comprising: headrail, pilaster shoe, hinges and channel.

General information

Uniclass 2015

Ss_25_12_60_30 Fully-framed panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/112 Fully framed panel cubicles

Product range

Fully framed cubicles

Specification data - Fully-framed panel cubicle systems

Product Reference

Aero Powder Coat SGL Panel Cubicles

Height (Refer to manufacturer's guidance)

Standard: 2000mm

Full Height: __mm

Floor to Ceiling: __mm

Colours

-

Pilasters & Headrail

Mineral

Powder coated aluminium.

Titanium

Powder coated aluminium.

Alpine

Powder coated aluminium.

Faceplate

Mineral

Powder coated ABS.

Titanium

Powder coated ABS.

Stainless Steel

Hinges & Channel

Mineral

Powder coated aluminium.

Titanium

Powder coated aluminium.

Pilaster Foot

20mm Stainless Steel

100mm Stainless Steel

20mm Mineral

Powder coated aluminium.

100mm Mineral

Powder coated aluminium.

20mm Titanium

Powder coated aluminium.

100mm Titanium

Powder coated aluminium.

Panels

Refer to manufacturer's standard colour range.

Accessories

None

Other requirements

None

Stylex printed door

Wood veneer doors

Standard product features

Panel Material:

  • High density solid grade laminate, 1400 kg/m³.
  • Thickness (overall): 13 mm nominal.
  • Edge detail: Polished black radiused edges.

Product Options

Heights:

- Maximum height: 2550mm.

- Full height: refers to any height between the standard 2000mm and ceiling height; this requires a minimum of 20mm ceiling clearance.

- Floor to ceiling: refers to anything above standard height which is fixed directly to the ceiling with a total of 20mm ceiling clearance; Aero at this height should be specified without a headrail.

Colours:

- Panels: 36 laminate colour options, 4 digital prints and a selection of wood veneers - select from manufacturer's literature.

Accessories:

- Selection of soap dispensers, paper towel dispensers, toilet roll holders, hand dryers, coat hooks and door handles - select from manufacturer's literature.

Literature

Main Washrooms Brochure

Main Washrooms Brochure
