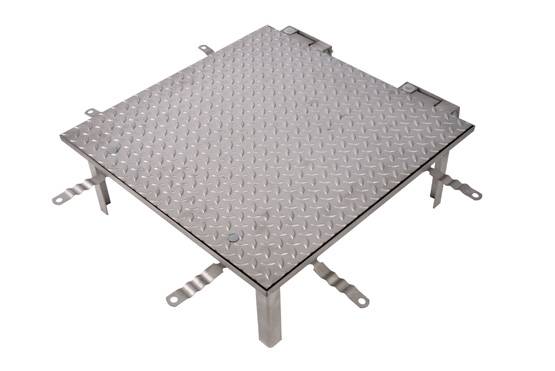

ACO UniTop™ GS ASSIST
Application

Designed for internal and external applications associated with commercial, private and public sector buildings, including:

  • Pedestrian areas.
  • Light vehicle areas.
  • Pallet truck areas.

Manufactured and classified according to the FACTA specification.

Description

Hot-dip galvanized, gas spring assisted, single solid floor access cover.

Benefits:

  • Provides a high quality finish.
  • Easy access to underlying services and ducting.
  • Manufactured using recycled materials.
  • Provides contrasting aesthetics and easy identification in hard floor and pavement finishes.
  • Gas spring assist for minimal effort, one-person operation.
  • Self-locking safety stay.
  • Hinge blocks unbolt, allowing cover to be completely removed for unimpeded access.
  • Suitable for areas where frequent access is required.
  • Stainless steel locking bolts provided to ensure safety.
  • High performance, liquid and odour-tight EPDM seals included.
  • Wide range of sizes available for clear openings of 450–1000 mm.
  • Can be used on a variety of flooring types, including concrete, screed, epoxy screed and epoxy.
  • Suitable for floor finishes of up to 15 mm thickness.

Applications:

Designed for internal and external applications associated with commercial, private and public sector buildings, including:

  • Pedestrian areas.
  • Light vehicle areas.
  • Pallet truck areas.

Manufactured and classified according to the FACTA specification.

General information

Material

Hot dipped galvanized steel, EPDM seals and stainless steel grade 304 locking screws

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

CAWS

P30/301 Access covers/ manhole tops and frames

Specification data - Access covers and frames

Product Reference

UniTop™ GS ASSIST

Type

See 'Options' below and insert product reference.

Locking positions

Five

Two

Accessories/ Other requirements

Not required

Spare lifting/ locking key set (2 x keys), 400569

Spare locking screw and dust cap set (5 x screws and dust caps), 417450

Standard product features

Material:

Hot dipped galvanized steel, EPDM seals and stainless steel grade 304 locking screws.

Frame depth:

60 mm.

Load testing and FACTA class:

- Class AAA:

  • Maximum wheel load (pneumatic tyres): 2.5 t.
  • Maximum wheel load (solid tyres): -0.5 t.
  • Gross Laden Vehicle Weight (GLVW): Up to 10 t.

- Class B:

  • Maximum wheel load (pneumatic tyres): 5 t.
  • Maximum wheel load (solid tyres): 0.75 t.
  • Gross Laden Vehicle Weight (GLVW): Up to 25 t.

Product Options

Type:

  • 445721: UniTop™ GS ASSIST 450 x 450 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 415205: UniTop™ GS ASSIST 500 x 500 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 445725: UniTop™ GS ASSIST 600 x 450 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 415206: UniTop™ GS ASSIST 600 x 600 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 415207: UniTop™ GS ASSIST 700 x 700 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 445730: UniTop™ GS ASSIST 750 x 600 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 445734: UniTop™ GS ASSIST 750 x 750 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 415208: UniTop™ GS ASSIST 800 x 800 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 445738: UniTop™ GS ASSIST 900 x 600 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 415209: UniTop™ GS ASSIST 900 x 900 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 445742: UniTop™ GS ASSIST 1000 x 600 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 415210: UniTop™ GS ASSIST 1000 x 1000 mm Galvanized Steel Single Sealed Access Cover - FACTA Class AAA.
  • 445723: UniTop™ GS ASSIST 450 x 450 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 415211: UniTop™ GS ASSIST 500 x 500 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 445727: UniTop™ GS ASSIST 600 x 450 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 415212: UniTop™ GS ASSIST 600 x 600 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 415213: UniTop™ GS ASSIST 700 x 700 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 445732: UniTop™ GS ASSIST 750 x 600 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 445736: UniTop™ GS ASSIST 750 x 750 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 415214: UniTop™ GS ASSIST 800 x 800 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 445740: UniTop™ GS ASSIST 900 x 600 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 415215: UniTop™ GS ASSIST 900 x 900 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 445744: UniTop™ GS ASSIST 1000 x 600 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
  • 415216: UniTop™ GS ASSIST 1000 x 1000 mm Galvanized Steel Single Sealed Access Cover - FACTA Class B.
