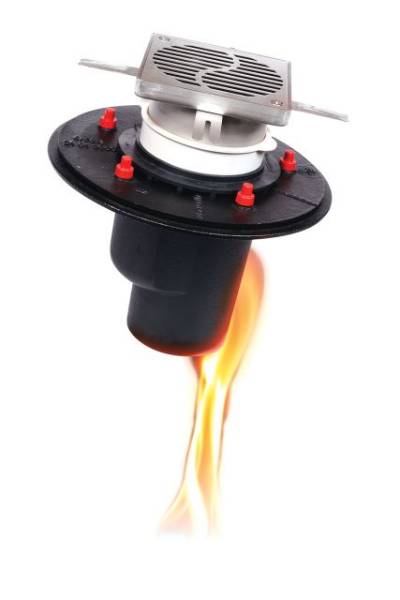

ACO Selecta Floor Drains

Third party certifications:
  • BSI Kitemark

    Certificate type

ACO Technologies plc

Cast iron floor drain suitable for point drainage in commercial and industrial applications.

Jump to:
+44 (0)1462 816666 www.aco.co.uk
Description

A range of two-part floor drains consisting of cast iron bodies complete with odour trap and with a range of telescopic gully tops, gratings and accessories. Suitable for point drainage in changing rooms, showers, wet rooms, kitchens, retail, hospitals, abattoirs, chemical plants, swimming pools, food and drink processing plants and washdown areas.

General information
Specification data
Product Reference

Selecta Floor Drains

Body -
Type

Horizontal, 110 mm dia outlet complete with removable foul air trap, 40 mm back inlet connector and membrane clamp

Vertical, 110 mm dia outlet complete with removable foul air trap and membrane clamp

Vertical, 110 mm dia outlet complete with removable foul air trap, fire protection cartridge, ACO FIT-IN dry installation kit to BS EN 1366 and membrane clamp

As drawing ___

As schedule ___

Material

Grey cast iron

Gully top -
Type

ACO Circular Sheet Vinyl Floor (clamped)

ACO Economy 100

ACO Economy 150

ACO Screed

ACO Square Sheet Vinyl Floor (welded)

ACO Tile 150

ACO Wet Room

Material

304 stainless steel/polypropylene

Style

Arco

Classic

Linea

Mondo

Perforated

Pop

Quadrato

Slotted

Standard

Traditional

Wave

Wellness

Standard product features

Load class:

  • Gratings Load Class K3 to BS EN 1253.

Flow rate:

  • 1.4 litres/second.

Product Options

Material:

  • Grey iron gully bodies to EN-GJL-200. Gully tops to stainless steel grade 304 pickle passivated for optimum hygiene and corrosion resistance and polyethylene. Gratings to stainless steel grade 304 pickle passivated for optimum hygiene and corrosion resistance and copper alloy.

Floor finish:

  • A range of products are available for use in tiled, sheet vinyl and resin/ screed floors.

Body arrangement and size options:

  • Vertical 110 mm dia gully outlet.
  • Horizontal 110 mm dia gully outlet.
  • Circular and square locked 304 stainless steel gratings.
  • Circular and square locked copper alloy gratings.
  • Fire protection cartridge to BS EN 1366 (vertical gully only).
  • Dry installation kit (vertical gully only).

Gully top arrangement and size options:

  • ACO Circular Sheet Vinyl Floor gully top is suitable for sheet vinyl flooring applications. They have a two-part telescopic gully top with 304 stainless steel bezel complete with mechanical flooring clamp, drainage ring and 157 mm diameter grating, and a choice of 304 stainless steel or copper alloy circular gratings and locks. Gratings are available in either perforated or slotted style.
  • ACO Economy 100 gully top is suitable for tiled, resin and screed applications. Height adjustable ABS bezel 100 x 100 mm and supplied complete with 304 stainless steel slotted grating load class K3 complete with drainage ring. Unlocked.
  • ACO Economy 150 gully top is suitable for tiled, resin and screed applications. Height adjustable ABS bezel 150 x 150 mm and supplied complete with 304 stainless steel slotted grating load class K3 complete with drainage ring. Unlocked.
  • ACO Screed gully top is available for resin and screed applications. They have a two-part telescopic gully top with 168 mm diameter 304 stainless steel bezel complete with drainage ring and a choice of either 304 stainless steel or copper alloy circular slotted grating and locks.
  • ACO Sheet Vinyl Floor two-part gully tops are suitable for sheet vinyl flooring applications for either mechanical clamping or welding of vinyl to gully top. The welded vinyl two-part telescopic gully top 171 x 171 mm with 304 stainless steel bezel complete with ACO Vinyl Seal®, drainage ring and a choice of 304 stainless steel or copper alloy grating and locks. The mechanical clamped gully top is telescopic, complete with removable vinyl clamp and supplied with drainage ring. Gratings are available in a variety of styles.
  • ACO Tile 150 gully top is suitable for tiled, resin and screed applications. It has a two-part telescopic polyethylene gully top 150 x 150 mm with 304 stainless steel bezel complete with drainage ring and a choice of 304 stainless steel or copper alloy gratings and locks. Gratings are available in a variety of styles.
  • ACO Wet Room gully top is suitable for wet room tiled applications. They have a two-part telescopic gully top with hermetically bonded flexible polyethylene fleece for integraton with brush/roller applied waterproof membranes, adjustable 150 x 150 mm with 304 stainless steel bezel complete with drainage ring and a choice of 304 stainless steel or copper alloy grating and locks. Gratings are available in a variety of styles.

Third party certifications
  • British Standards Institution (BSI) - certficate : Optional fire cartridge tested to BS EN 1366 Part 3 and classified to BS EN 13502 as EI 120-U/U. Certifire Approval document No CF 692
