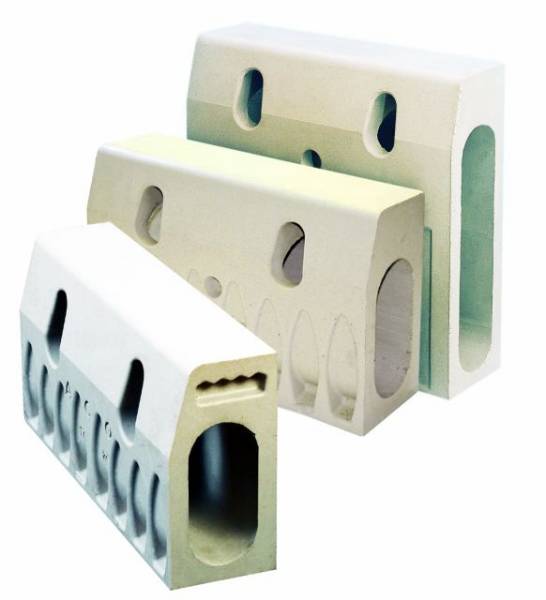

ACO KerbDrain HB305

ACO KerbDrain HB305

ACO Technologies plc Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

A recycled polymer concrete combined kerb drainage system, 305 mm deep, half battered HB1 profile.

Jump to:
+44 (0)1462 816666 www.aco.co.uk

Description

A one-piece, lightweight polymer concrete combined kerb/ drainage unit for carriageways, roundabouts, local road schemes, car parking and many other applications. ACO KerbDrain conforms to BS EN 1433 load class D400 for kerbside installations.

KerbDrain is Kitemarked and complies with Specification for Highway Works clause 516.

General information

Uniclass 2015

Pr_25_93_60_12 Combined drainage and kerb unitsPrimary

CAWS

Q10/190 Carriageway kerb and drainage channel systems

Specification data - Combined drainage and kerb units

Product Reference

KerbDrain HB305

Kerb upstand (maximum)

125 mm

Gully units

-

Type

Top and shallow base assembly

Top and deep base assembly

Top and roddable deep base assembly

Top and road gully connector

Accessories

Top assembly only

Gully bucket

Accessories

Bullnosed bus stop kerb

Bullnosed bus stop kerb transition LH

Bullnosed bus stop kerb transition RH

Centre stone drop kerb assembly, flush drainable, straight

Centre stone unit

Centre stone unit, flush drainable, 6 m external radius

Centre stone unit, flush drainable, straight

Centre stone unit, perforated, straight

Drop kerb assembly, LH, 6 m external radius

Drop kerb assembly, RH, 6 m external radius

Drop kerb unit, LH

Drop kerb unit, RH

Endcap, closing

Endcap, LH inlet/ outlet

Endcap, RH inlet/ outlet

External radius units, 1.8 m

External radius units, 6 m

Internal angle, 90°

Mitre units

Quadrant

Standard product features

Lengths:

Standard kerb units are available in 1000, 500 and 250 mm lengths.
