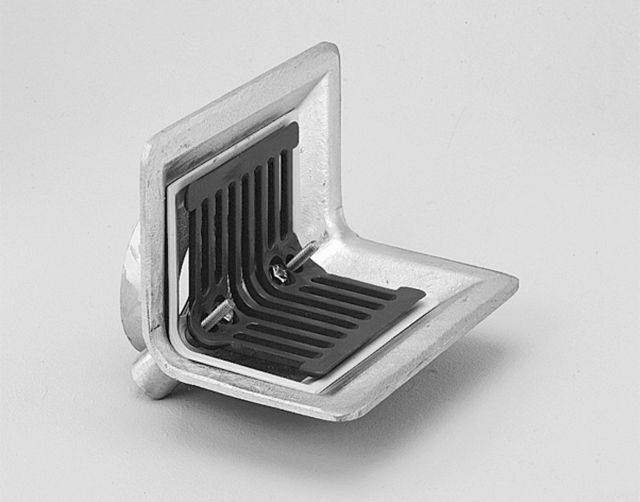

ACO HP two-way screw outlet
Description

The two-way outlet is designed to be used at the junction of roofs and parapet walls, or wherever a horizontal and vertical surface meet. Available to fit pipe sizes of 50, 75 and 100 mm. This flexible design of outlet allows either horizontal or vertical outflow take-off.

Screwed rainwater outlets are recommended where connection to the outlet occurs within the thickness of the slab, and threaded connections will form a completely gas-tight seal. Two-way screw outlets have a female parallel thread to BS 21 for connecting directly to threaded tubes conforming to BS 1387. This ensures a completely watertight seal when screwed fully home into the outlet body.

A range of PVC adaptors are available to allow connection to aluminium pipework, socketed and socketless cast iron pipework and PVC pipework.

General information

Material

[Material, Gun-metal to BS 1400 available to special order. Gun-metal should be specified for use in conjunction with copper or lead-clad roofs or when connected to copper pipes]

LM6 grade aluminium alloy to BS 1490

Specification data

Product Reference

HP two-way screw outlet

Type

2HP-2W

50 mm nominal bore, flat angle grating.

3HP-2W

75 mm nominal bore, flat angle grating.

4HP-2W

100 mm nominal bore, flat angle grating.

Contractor's choice

As drawing ___

Adaptor

50 mm PVC adaptor

75 mm PVC adaptor

100 mm PVC adaptor

To suit pipework

Contractor's choice

As drawing ___

Standard product features

Material:

LM6 grade aluminium alloy to BS 1490.

Secure gratings:

Gratings are secured with stainless steel fixings that require either a socket wrench or spanner for removal and replacement.

Flow rate (35 mm head over outlet body):

  • 2HP-2W: Vertical outflow, 1.7 L/s; horizontal outflow, 1.7 L/s.
  • 3HP-2W: Vertical outflow, 3.9 L/s; horizontal outflow, 1.9 L/s.
  • 4HP-2W: Vertical outflow, 6.0 L/s; horizontal outflow, 2.3 L/s.

Area drained (rainfall intensity 75 mm/hr):

  • 2HP-2W: Vertical outflow, 81 m²; horizontal outflow, 81 m².
  • 3HP-2W: Vertical outflow, 189 m²; horizontal outflow, 93 m².
  • 4HP-2W: Vertical outflow, 288 m²; horizontal outflow, 110 m².

Weight:

  • 2HP-2W: 2.14 kg.
  • 3HP-2W: 2.22 kg.
  • 4HP-2W: 2.23 kg.

Product Options

Material:

Gun-metal to BS 1400 available to special order. Gun-metal should be specified for use in conjunction with copper or lead-clad roofs or when connected to copper pipes.

Adaptors:

PVC adaptors are available for threaded outlets – HP Vertical screw (HP-TD); and HP Two-way (HP-2W) systems. PVC adaptors provide a quick and convenient connection to standard PVC pipework. The adaptors are suitable for connection to all types of pipe systems including cast iron socketed or socketless systems.
