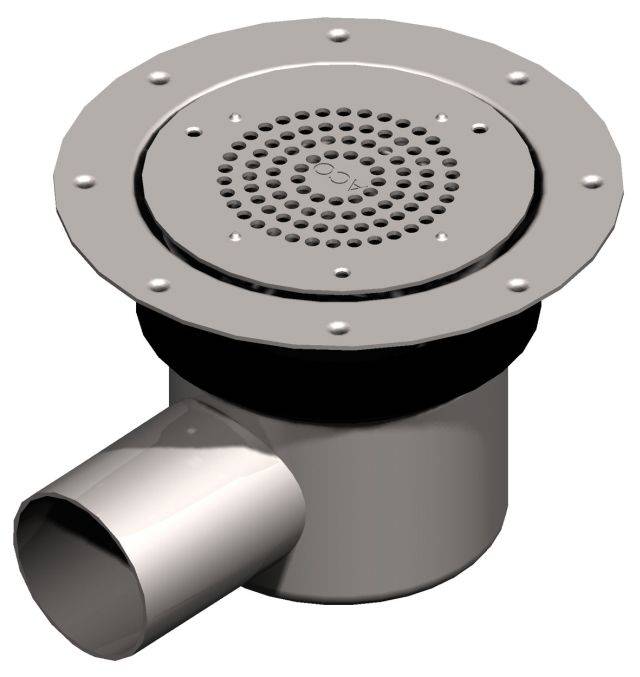

ACO EG150 Eurogullies For Vinyl Sheet Flooring
Description

The EG150 range of Eurogullies are designed to provide hygienic, quick, simple and economic trapped drainage solutions for light industrial use, washrooms, ‘wet’ bathrooms, changing rooms, swimming pools, hotels, apartments and toilets. Manufactured in austenitic 304 grade stainless steel as standard, excellent corrosion resistance is guaranteed. Optional 316 grade stainless steel for aggressive applications is available on all gullies. EG150 Eurogullies are supplied with perforated gratings as standard ensuring no risk to bare feet or stiletto heels.

General information

Features

FACTA load class: A

Removable in-line foul air trap fitted as standard, flow rate 1.2 L/s. 50 mm water seal meets requirements of BS EN 1253

Telescopic height variant providing full 360° rotation and +/- 7.5° pitch and roll adjustment

Smooth contour design minimizes bacteria traps

110 mm diameter vertical spigot outlet; 75 mm horizontal spigot outlet

Show more

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

EG150 Eurogullies for vinyl sheet flooring applications

GullyType

-

Type

EG150FVL/VNL/110

Fixed invert 112 mm.

EG150TV/VNL/110

Variable invert 219–249 mm.

EG150TV3i/VNL/110

Variable invert 219–249 mm c/w 3 side inlets.

EG150THL/VNL/75

Variable invert 126–156 mm.

EG150TH3i/VNL/75

Variable invert 220–250 mm c/w 3 side inlets.

EG150THL3i/VNL/75

Variable invert 126–156 mm c/w 3 side inlets.

Steel grade

304

316

Sieve

Not required

EG150SI

Standard product features

Features:

  • FACTA load class: A.
  • Removable in-line foul air trap fitted as standard, flow rate 1.2 L/s. 50 mm water seal meets requirements of BS EN 1253.
  • Telescopic height variant providing full 360° rotation and +/- 7.5° pitch and roll adjustment.
  • Smooth contour design minimizes bacteria traps.
  • 110 mm diameter vertical spigot outlet; 75 mm horizontal spigot outlet.
  • Ends stops provided preventing accidental dismantling on telescopic variants.
  • three back inlet variant available, supplied with fully interchangeable adaptors to suit 32 mm / 1.25” to BS 5254 and 40 mm / 1.5” to BS 5255 waste pipes.
