NBS Source

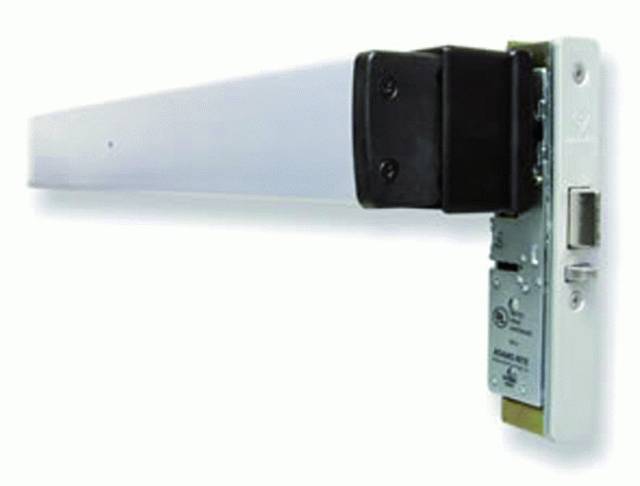

940 Series Mortice Exit Device

Description

The Adams Rite 940 Series Mortice Exit device is a life safety device designed to fit into commercial aluminium door applications.

Benefits:

  • Suitable for use on timber and steel doors.
  • Available in two backset sizes; 38.1 and 69.9 mm.
  • Unique tab system on deadlatch allows the flat faceplate to be used to suit bevelled door sections.
  • Dogging as standard on all versions except 600 mm.
  • The device has an all steel latch case with an oil impregnated solid brass bolt and deadlatching mechanism.
  • Options include: Monitoring and Cylinder dogging.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Exit-devices/Panic-hardware/

General information

Finish

313 Dark 'bronze' aluminium

335 Black aluminium

628 Satin aluminium

Uniclass

Pr_30_36_08_63 Panic exit devicesPrimary

CAWS

P21/32 Panic exit devices

P21/577 Panic exit devices

Product range

Adams Rite Exit Hardware / Adams Rite Panic Hardware

Specification data - Panic exit devices

Product Reference

930 Series Mortice Exit Device

Cylinder dogging

Not required

Required

Monitoring

Not required

Double switch

Single switch

Door opening width

600 mm

750 mm

900 mm

1050 mm

1200 mm

Handing

RHR

LHR

Backset

38.1 mm

69.9 mm

Finish

313 Dark 'bronze' aluminium

335 Black aluminium

628 Satin aluminium

Standard product features

General:

  • Case: Steel with corrosion-resistant plating.
  • Push bar: Extruded aluminium alloy.
