72 Series Modular Locks - Mortice Locks

Verified by manufacturer 3 months ago

7208.60 Mortice bathroom lock

Allgood Ltd Variant:
Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

A range of heavy-duty locks and latches

Jump to:
+44 (0)121 359 4415 Website

Application

Applicable use for security application such as entrance doors, gates, common areas of residential, commercial and corporate offices.

Description

Allgood 72 series Modular Lock System is a full suite of heavy-duty mortice locks and latches. The range is suitable for general commercial and heavy industrial use.


Features and benefits:

  • Reversible latchbolt without opening lockcase.
  • Bolt through fixing holes for furniture.
  • CE Marked (where possible).
  • Certifire approved CF 347 (60 mm and 80 mm backset locks only).
  • Incorporated in successful fire test and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 90 minutes on timber doors (60 mm and 80 mm backset locks only).
  • Ten-year warranty.
  • Specify 7225ASS for fully assembly of necessary components for type 7225.60 and 7225F60.
  • Recommended to be used with Allgood cylinders.
  • Lift to Lock easy action privacy lock for all types of 7225.
  • The inside lever has a dual function for all types of 7225.
  • When the lever is lifted, it simultaneously locks the external lever and actuates the external indicator for all types of 7225.
  • Depressing the inside lever withdraws both bolts and resets the indicator for all types of 7225.
  • Lever handles on both sides will withdraw the latch bolt for all types of 7282.
  • If the deadbolt is projected, the inside handle only will withdraw both bolts for all types of 7282.
  • The door remains unlocked until manually locked by key from the outside or turn from the inside for all types of 7282.
  • 10 year mechanical warranty

=============================

7208.60 Allgood Hardware 72 Series 60mm backset Bathroom Lock

• Independently tested to BS EN 12209

• Case Depth A = 92mm

• Case Height = 165mm

• Backset B = 60mm

• Square Outer Forend

• Heavily sprung 8mm follower for lever handles

• CE & UKCA Marked & Certifire approved CF347

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 90 minutes on timber doors and up to 240 minutes on metal doors

• Reversible latchbolt without opening lockcase

• Bolt through fixing holes for furniture

• 8mm deadbolt/privacy follower

• Supplied with reversible strike plate and mortar guard


=============================

7208F60 Allgood Hardware 72 Series 60mm backset Bathroom Lock

• As above 7208.60 but with Radius Outer Forend


=============================

7208.80 Allgood Hardware 72 Series 80mm backset Bathroom Lock

• As above 7208.60 but 80mm backset

• Case Depth A = 112mm

• Case Height = 165mm

• Backset B = 80mm


=============================

7208F80 Allgood Hardware 72 Series 60mm backset Bathroom Lock

• As above 7208.60 but 80mm backset

• Case Depth A = 112mm

• Case Height = 165mm

• Backset B = 80mm

• Radius Outer Forend

=============================

7208K10 Allgood Hardware 72 Series 100mm backset Bathroom Lock

• Case Depth A = 92mm

• Case Height = 165mm

• Backset B = 100mm

• Square Outer Forend

• Lightly sprung 8mm follower for knob handles

• Reversible latchbolt without opening lockcase

• Bolt through fixing holes for furniture

• 8mm deadbolt/privacy follower

• Supplied with reversible strike plate and mortar guard


=============================

7208KF10 Allgood Hardware 72 Series 100mm backset Bathroom Lock

• As above 7208K10 but with Radius Outer Forend


=============================

7225.60 Allgood Hardware 72 Series 60mm backset Mortice Lift to Lock (L2L)

• Independently tested to BS EN 12209

• Case Depth A = 92mm

• Case Height = 165mm

• Backset B = 60mm

• Square Outer Forend

• Heavily sprung 8mm follower for lever handles

• The internal lever has a dual function. When lifted up, the lever simultaneously throws the deadbolt and activates the external indicator. Depressing the inside lever withdraws the deadbolt, the latchbolt and resets the indicator. The external lever only operates the latchbolt.

• CE & UKCA Marked & Certifire approved CF347

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 90 minutes on timber doors and up to 240 minutes on metal doors

• Reversible latchbolt without opening lockcase

• Bolt through fixing holes for furniture

• Supplied with reversible strike plate and mortar guard


=============================

7225F60 Allgood Hardware 72 Series 60mm backset Mortice Lift

to Lock (L2L)

• As above 7225.60 but with Radius Outer Forend


=============================

7279.60 Allgood Hardware 72 Series 60mm backset Euro Profile Cylinder Mortice Lock

• Independently tested to BS EN 12209

• Case Depth A = 92mm

• Case Height = 165mm

• Backset B = 60mm

• Square Outer Forend

• Heavily sprung 8mm follower for lever handles

• CE & UKCA Marked & Certifire approved CF347

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 90 minutes on timber doors and up to 240 minutes on metal doors

• Reversible latchbolt without opening lockcase

• Bolt through fixing holes for furniture

• Supplied with reversible strike plate and mortar guard


=============================

7279F60 Allgood Hardware 72 Series 60mm backset Euro Profile

Cylinder Mortice Lock

• As above 7279.60 but with Radius Outer Forend


=============================

7279.80 Allgood Hardware 72 Series 80mm backset Euro Profile Cylinder Mortice Lock

• As above 7279.60 but with 80mm backset

• Case Depth A = 112mm

• Case Height = 165mm

• Backset B = 80mm


=============================

7279F80 Allgood Hardware 72 Series 80mm backset Euro Profile

Cylinder Mortice Lock

• As above 7279.80 but with Radius Outer Forend


=============================

7279K10 Allgood Hardware 72 Series 100mm backset Euro Profile Cylinder Mortice Lock

• Case Depth A = 132mm

• Case Height = 165mm

• Backset B = 100mm

• Square Outer Forend

• Lightly sprung 8mm follower for knob handles

• Reversible latchbolt without opening lockcase

• Bolt through fixing holes for furniture

• Supplied with reversible strike plate and mortar guard


=============================

7279KF10 Allgood Hardware 72 Series 100mm backset Euro Profile

Cylinder Mortice Lock

• As above 7279K10 but with Radius Outer Forend


=============================

7286.60 Allgood Hardware 72 Series 60mm backset Euro Profile Cylinder Mortice Deadlock

• Independently tested to BS EN 12209

• Case Depth A = 92mm

• Case Height = 165mm

• Backset B = 60mm

• Square Outer Forend

• CE & UKCA Marked & Certifire approved CF347

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 90 minutes on timber doors and up to 240 minutes on metal doors

• Bolt through fixing holes for furniture


=============================

7286F60 Allgood Hardware 72 Series 60mm backset Euro Profile

Cylinder Mortice Deadlock

• As above 7286.60 but with Radius Outer Forend


=============================

7286.80 Allgood Hardware 72 Series 80mm backset Euro Profile

Cylinder Mortice Deadlock

• As above 7286.60 but with 80mm backset

• Case Depth A = 112mm

• Case Height = 165mm

• Backset B = 80mm


=============================

7286F80 Allgood Hardware 72 Series 80mm backset Euro Profile

Cylinder Mortice Deadlock

• As above 7286.80 but with Radius Outer Forend


=============================

7286.10 Allgood Hardware 72 Series 100mm backset Euro Profile Cylinder Mortice Deadlock

• Case Depth A = 132mm

• Case Height = 165mm

• Backset B = 100mm

• Square Outer Forend

• Bolt through fixing holes for furniture

• Supplied with reversible strike plate and mortar guard



=============================

7286KF10 Allgood Hardware 72 Series 100mm backset Euro Profile Cylinder Mortice Deadlock

• As above 7286.10 but with Radius Outer Forend


=============================

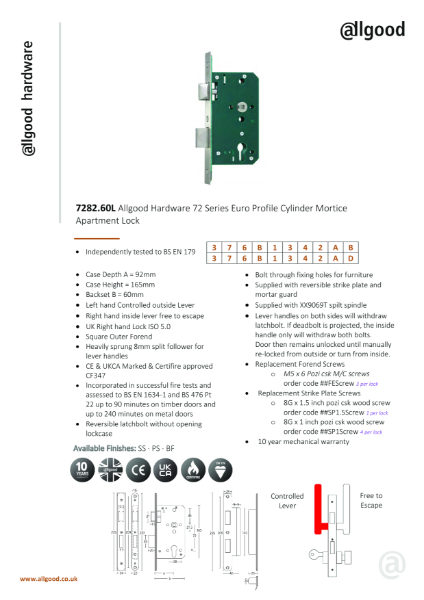

7282.60L Allgood Hardware 72 Series Euro Profile Cylinder Mortice Apartment Lock

• Independently tested to BS EN 179

• Case Depth A = 92mm

• Case Height = 165mm

• Backset B = 60mm

• Left hand Controlled outside Lever

• Right hand inside lever free to escape

• UK Right hand Lock ISO 5.0

• Square Outer Forend

• Heavily sprung 8mm split follower for lever handles

• CE & UKCA Marked & Certifire approved CF347

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 90 minutes on timber doors and up to 240 minutes on metal doors

• Reversible latchbolt without opening lockcase

Supplied with reversible strike plate and mortar guard

• Supplied with XX9069T spilt spindle

• Lever handles on both sides will withdraw latchbolt. If deadbolt is projected, the inside handle only will withdraw both bolts. Door then remains unlocked until manually re-locked from outside or turn from inside.


=============================

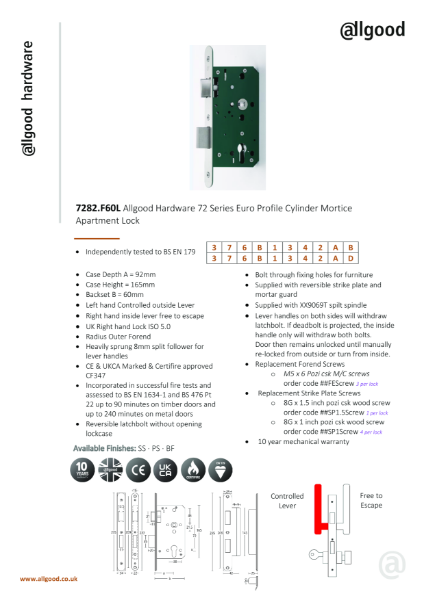

7282F60L Allgood Hardware 72 Series Euro Profile Cylinder Mortice

Apartment Lock

• As 7282.60L but Radius Outer Forend


=============================

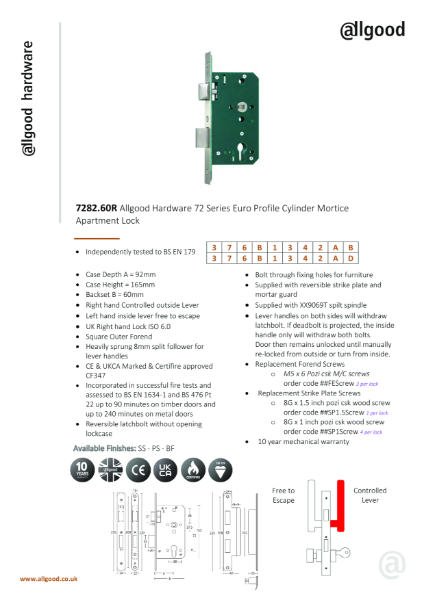

7282.60R Allgood Hardware 72 Series Euro Profile Cylinder Mortice

Apartment Lock

• As 7282.60L but RH Controlled

• Right hand Controlled outside Lever

• Left hand inside lever free to escape

• UK Right hand Lock ISO 6.0


=============================

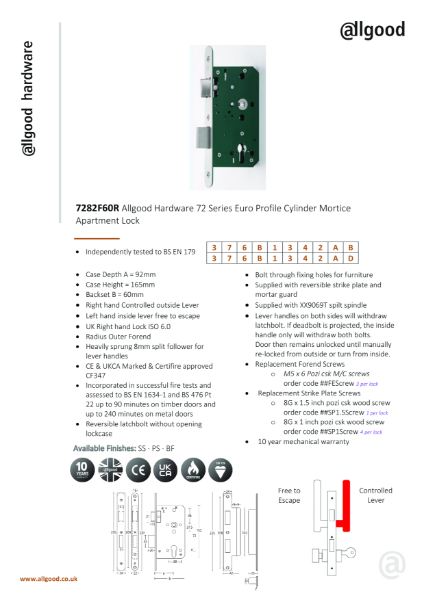

7282F60R Allgood Hardware 72 Series Euro Profile Cylinder Mortice

Apartment Lock

• As 7282.60R but Radius Outer Forend


=============================

7282.80L Allgood Hardware 72 Series Euro Profile Cylinder Mortice Apartment Lock

• Independently tested to BS EN 179

• Case Depth A = 92mm

• Case Height = 165mm

• Backset B = 60mm

• Left hand Controlled outside Lever

• Right hand inside lever free to escape

• UK Right hand Lock ISO 5.0

• Square Outer Forend

• Heavily sprung 8mm split follower for lever handles

• CE & UKCA Marked & Certifire approved CF347

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 90 minutes on timber doors and up to 240 minutes on metal doors

• Reversible latchbolt without opening lockcase


=============================

7282.80R Allgood Hardware 72 Series Euro Profile Cylinder Mortice Apartment Lock

• As 7282.80L but Right hand controlled lever

• Right hand Controlled outside Lever

• Left hand inside lever free to escape

• UK Right hand Lock ISO 6.0


=============================


General information

Color

Bronze

Silver

Finish

Polished

Guidance for specification option:

Polished stainless steel.

Satin

Guidance for specification option:

Satin stainless steel.

Material

Stainless steel

Height

165 mm

Warranty description

Ten year

Uniclass

Pr_30_36_08_24 Door latches

Primary

CAWS

P21/24 Door locks

P21/515 Door locks

Product range

Locks
Allgood Hardware / Door Security

Specification data - Door latches

Latch or lock type

Vertical mortice bathroom lock.

Backset

60 mm.

Material and finish

BF - Simulated bronze.

PS - Polished stainless steel.

SS - Satin stainless steel.

Lock case

92 mm.

Manufacturer guidance

Deep case.

Forend

Square.

Handle

Lever.

Fire resistance

To BS EN 1634-1 and BS 476-22.

Guidance for specification option:

90 minutes on timber doors.

Third-party certification

Certifire approved CF 347.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Third party certifications

Certifire Certificate

Certifire Certificate

CF 347 72 Series Locks
