430 Series Floor Expansion Joint System

430 Series Floor Expansion Joint System

Inpro

The 430 floor expansion joint cover accommodates horizontal, vertical and shear seismic movement.

Jump to:
+44(0)7399586677 www.inprocorp.co.uk

Application

Suitable for use with carpet, vinyl, ceramic tile and other floor finishes.

Description

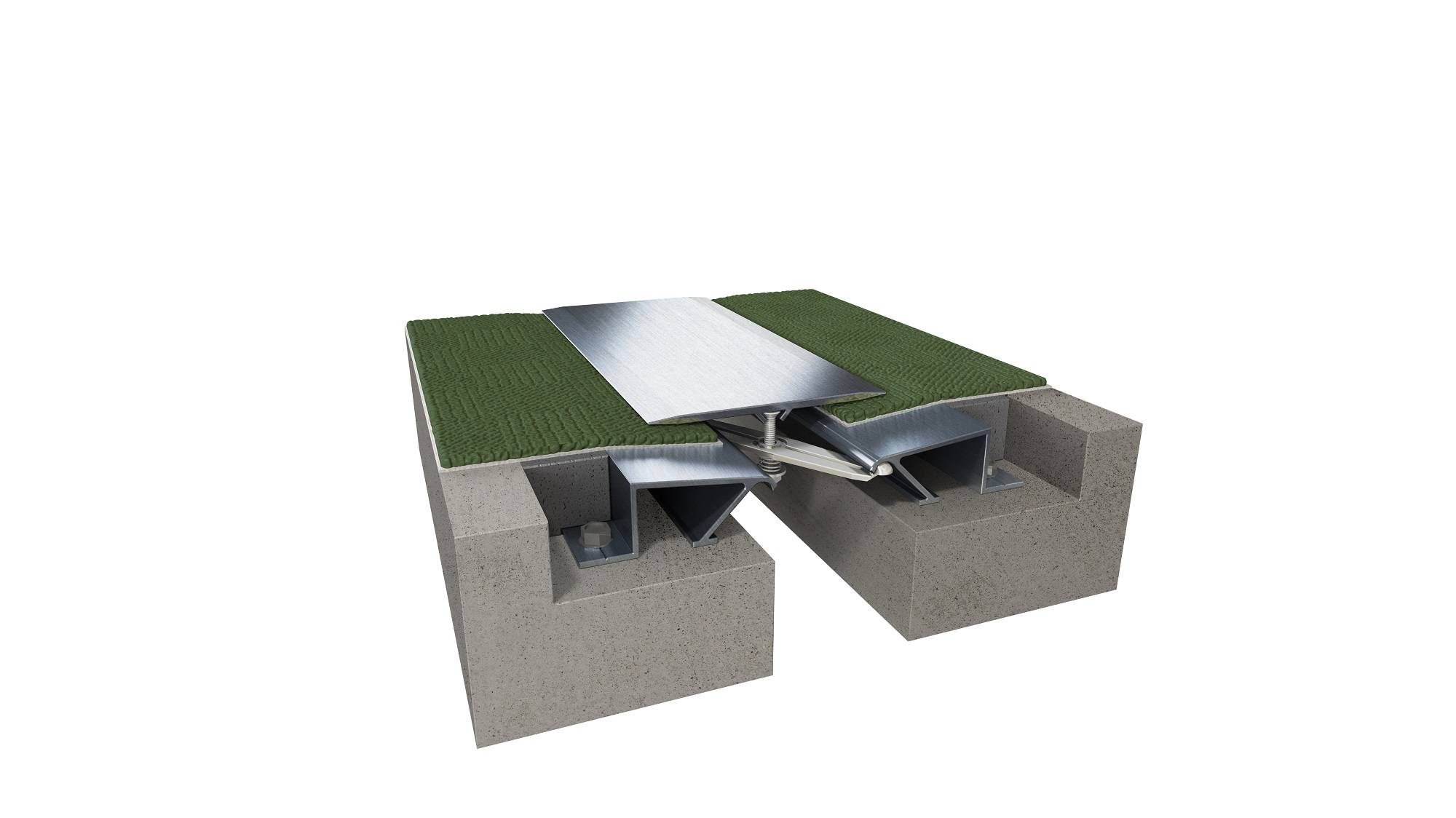

The 430 floor expansion joint cover accommodates horizontal, vertical and shear seismic movement. Ideal system for use with carpet, vinyl, ceramic tile and other floor finishes. The 430 is engineered with hidden hardware, great for public areas or spaces that need to provide tamper-proof products.


Features & Benefits:


  • Accommodates horizontal, vertical and shear seismic movement
  • Centering bar keeps plate positioned over joint during cycling
  • Sloped and tapered center plate provides a smooth transition that is ADA compliant.
  • Ideal system for use with carpet, vinyl, and other floor finishes to create a greatly reduced sightline.
  • 430 features hidden hardware.
  • No-Bump system without side gaps that trap dirt and debris.


Key specs:


  • Floor/Floor, Floor/Wall Conditions
  • Movement: +/- 50%
  • Joint width: 1"-8" (25mm-200mm)
  • Optional vapor barrier
  • Optional fire rated
  • Sheer movement unlimited
  • Provides a reduced sight-line

General information

Uniclass 2015

Pr_35_90_53_53 Metal section movement jointsPrimary

CAWS

M40/80 Strip movement joints

M13/375 Strip movement joints

M10/460 Strip movement joints

M41/445 Strip movement joints

M40/825 Strip movement joints

M41/445 Strip movement joints

M12/440 Strip movement joints

M41/465 Metal section movement joints

M10/476 Metal section movement joints

M40/835 Metal section movement joints

M13/395 Metal section movement joints

Specification data - Metal section movement joints Enhanced data

Joint width (nominal)

25 mm.

51 mm.

76 mm.

102 mm.

153 mm.

203 mm.

Product Reference

430-A01-025

Floor to Floor

430-A01-050

Floor to Floor

430-A01-075

Floor to Floor

430-A01-100

Floor to Floor

430-A01-150

Floor to Floor

Show more

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
