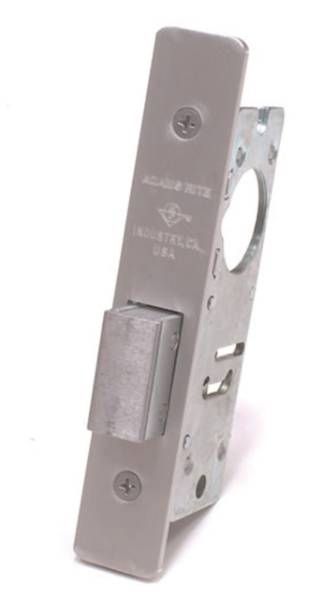

4070

Name: 4070
Brand: ck3qNqr5euFacoStUuxv99
SKU: nNhyvZC4fkaWsXVBFNqFBJ

ASSA ABLOY Opening Solutions UK & Ireland

Deadlock.

Jump to:

+44 (0)1902 364120 www.assaabloy.co.uk

Application

Deadlock for use where a long throw maximum security deadlock cannot be accommodated.

Description

Application:

Deadlock for use where a long throw maximum security deadlock cannot be accommodated.

Benefits:

Operation is via standard mortice cylinder or thumbturn with (modified cam) from either or both sides.

Suitable for use on aluminium and steel doors.

Offers longest practical throw for a conventionally projected bolt from a narrow stile.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Mechanical-locking/

General information

Uniclass 2015	Pr_30_36_08_24 Door latches Primary
CAWS	P21/24 Door locks P21/515 Door locks

Specification data - Door latches

Product Reference

4070-10

Deadlock 22.2 mm (7⁄8”) Backset.

4070-20

Deadlock 24.6 mm (31⁄32”) Backset.

4070-30

Deadlock 28.6 mm (1 1⁄8”) Backset.

Faceplates

24-4070-000-628 – 4070 Faceplate Flat SAA finish.

24-4070-100-628 – 4070 Faceplate Radius SAA finish.

Accessories

None

4170-628

Trim Strike aluminium For 4070 Deadlock.

4066-02-628

Mortice Thumbturn SAA for use with 4070 Series (with modified cam).

Standard product features	General: Case: Steel with corrosion-resistant plating. Lock bolt: 32 x 16 mm. Lock bolt throw: 15.9 mm. Cylinder: Any standard 29.4 mm (1 5⁄32”) Mortice Cylinder or Thumbturn with modified cam. Operation: 180° turn of key (or thumbturn) projects or retracts bolt. Door gap (maximum): 3 mm. Forend: Steel, with aluminium faceplate (flat or radius).
