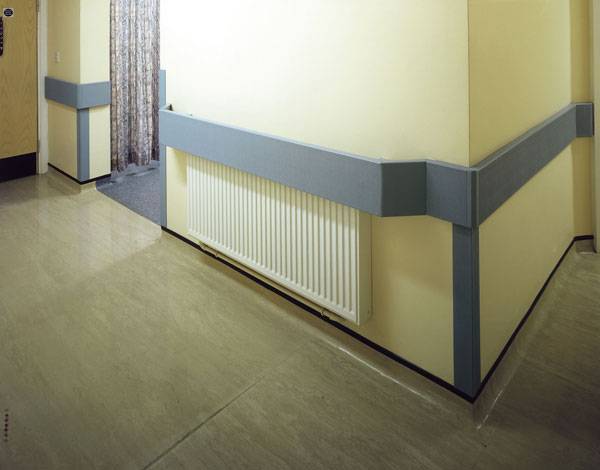

125 mm & 200 mm Stand-Off Protection Rail

Description

Yeoman Shield stand-off protection rails ward off impact damage to walls along corridors, passages and congregational areas.

Supplied as standard on 60 mm spacers the rail can also double up as a supportive rail.


Approvals:

Extruded Material fire tested to:

  • B, s2, d0.
  • BS EN 13823:2010 + A1:2014.
  • BS EN ISO 11925 - 2: 2010.
  • BS EN 13501 - 1: 2007 + A1:2009.
  • BS 476: Part 7: 1997 - The surface spread of flame of products- Class 1Y.
  • BS 476: Part 6: 1989 + A1:2009- Fire propagation for products - Class O - As defined in the latest Building Regulations, Approved Document B (Fire Safety).
  • A1: 2010, HBN 00-04 & HTM 69.

General information

Uniclass 2015

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

P20/170 Proprietary

P20/20 Hardwood

P20/30 Proprietary

Specification data - Wall protection panels

Product Reference

Combined Handrail/ Protection Rail

Width

75 mm

125 mm

200 mm

Core

MDF

Steel

Accessories

Standard 60 mm PVCu Cream Spacer

Vinylac external corner

Vinylac irregular corner - Special order

Vinylac stop end

Signage - Insert requirement

Steel or Rubber external corner

Steel or Rubber irregular corner

Steel or Rubber stop end

Standard product features

Finish:

Stippled.

Type:

Stand-Off 60 mm Cream PVCu Spacers or Flat Back Solid Core.

Materials:

Yeoman Shield Vinylac - an especially formulated PVCu material resistant to impact & abrasion.

Product Options

Colour:

  • Cornflower Blue.
  • Trafalgar Blue.
  • Royal Blue (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Amethyst.
  • Aubergine.
  • Heather.
  • Lavender.
  • Graphite.
  • Mocha.
  • Sage Green.
  • Pale Green.
  • Terracotta.
  • Opal Green (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Light Green (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Pastel Green.
  • Pastel Blue (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Aqua Blue.
  • Steel Blue (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Bordeaux.
  • Lilac.
  • Burgundy.
  • Blush.
  • Pink Rose.
  • Dusty Grey (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Grapefruit.
  • Red.
  • Sky Blue.
  • Orange.
  • Yellow.
  • Green.
  • Slate Green.
  • Dark Blue.
  • Regatta Blue.
  • Powder Blue.
  • Pigeon Blue.
  • Brown.
  • Buff (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Mushroom.
  • Cream (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • White (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Black (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Dark Grey.
  • Mid Grey (are the only colours available for the 50 mm Dia. Guardian Handrail and the top rail for the Guardian Twin Handrail).
  • Light Grey.
  • Primrose.
  • Tangerine.
  • Raspberry Red.
